Automated 250ml Milk Processing Equipment , Liquid Filling Machine 2000*1800*2200mm

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

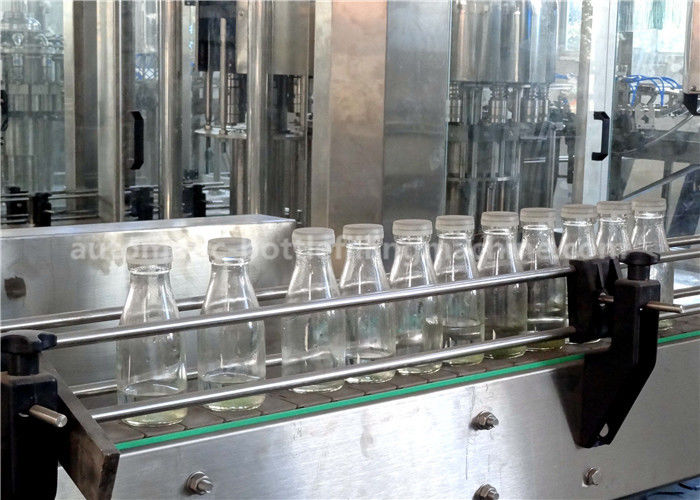

Automated 250ml Milk Processing Equipment , Liquid Filling Machine 2000*1800*2200mm

Automated 250ml Milk Processing Equipment , Liquid Filling Machine 2000*1800*2200mm
Automated 250ml Milk Processing Equipment , Liquid Filling Machine 2000*1800*2200mm

Large Image :  Automated 250ml Milk Processing Equipment , Liquid Filling Machine 2000*1800*2200mm

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Bottle Type: Glass Bottle Overall Dimension(L*W*H): 2000*1800*2200mm
Filling Temperature: Room Temperature Control System: PLC Control+touch Screen
Function: Bottle Filling Capping Material: SS304/316
Voltage: Subject To Client's Country Power Condition: New New
High Light:

milk bottle filling machine

,

milk processing equipment



Automatic 250ml Milk Glass Bottle Filling Machine For Beverage



Factory



Product Application



Best milk packaging machinery manufacturer 2-in-1 filling monoblock, combined with filling and capping. It



is innovated and designed in the requirement of milk,non-carbonated energy drinks,functional water,



various juice drinks, tea,flavored water,flavored milk on the bases of introducing, digesting and absorbing



advanced technology from Germany and Italy.



Features:



Filling part



1. The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it



can control the material from the bottleneck, the control accuracy is within ±2mm.



2. The filling valve material is SUS304



3. The filling system has liquid level automatic control.



4. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.



5. Bottle is conveying by the wheel in the filling part.



6. The milk or other hot beverage can be backflow by return tank to control filling temperature.



Capping part



1. It import of advanced technology of screw capping, improve the stability and reliability of the screw



capping machine. The magnetic torque is used for screw capping. the power of screw capping can be



adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be



damaged, the capping is reliable.



2. In the screw capping part. it installed photoelectrical control , when it has no cap ,or the cap is bad, the



machine will stop automatically.


Technique parameter



Model RGF18-6
Productivity 6000BPH
Filling Head 18
Capping Head 6
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 3 m3/h
Rinsing Water Consumption 1 m3/h
Motor Power 6.68kW
Voltage 380V
Dimension (L×W×H) 2450*1800*2200mm
Weight 3000kg
Filling Principle Gravity Filling




Our main products

1. bottling minereal/pure water production line (500ml, 1000ml,2000ml);

2. barrel mineral/ pure water production line (3L,5L,10L,19L,)

3. bottling carbonated beverage production line (like coca cola);

4. bottling juice production line;

5. canning beverage production line;

6. glass bottle beverage production line;

7. carbonated beverage and juice production auxiliary plants
