High Performance Automatic Juice Milk Filling Sealing Machine 4000BPH Touch Screen

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

High Performance Automatic Juice Milk Filling Sealing Machine 4000BPH Touch Screen

High Performance Automatic Juice Milk Filling Sealing Machine 4000BPH Touch Screen
High Performance Automatic Juice Milk Filling Sealing Machine 4000BPH Touch Screen

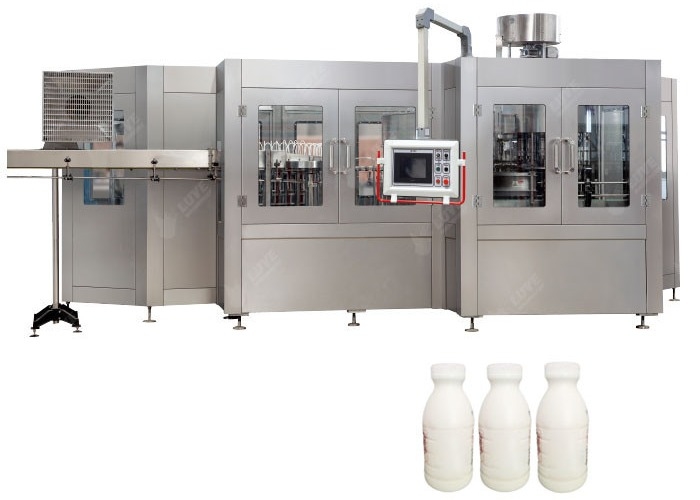

Large Image :  High Performance Automatic Juice Milk Filling Sealing Machine 4000BPH Touch Screen

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Application: Beverage, Juice / Sports Drinks And Tea Machinery Capacity: 4000BPH, 8000BPH, Other, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH, 1000BPH
Overall Dimension(L*W*H): 2000*1800*2200mm Filling Accuracy: ±3mm
Warranty: One Year Filling Temperature: Room Temperature
Control System: PLC Control+touch Screen Automatic Grade: Fully-automatic
High Light:

Automatic Juice Milk Filling Sealing Machine

,

touch screen 4000BPH milk Filling Machine

,

Automatic Milk Sealing Machine

High performance automatic juice milk filling and sealing machine


A complete hot fill line solution from our company lets you optimise performance and make more informed decisions across the lifetime of your line. With everything centred around one supplier, you get wide-ranging expertise, equipment and ongoing services to evaluate your entire project. This ensures high quality and efficiency from packaging to equipment, fast ramp-up and more.



Hot Fill Lines is a unique PET packaging solution offering a great alternative for hot-filled beverages in PET bottles. It expands the opportunities of product premiumisation and revenue generation with no compromise on packaging performance and the consumer experience. This innovative solution is addressing the single serve market of Hot fill (juice, nectar, soft drink, isotonics, tea) filled in PET bottles up to 1.2L at a temperature of 85-88°C.



1/ Stainless steel high pressure film shell
2/ All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/ Online type pressure auto self-protection device
4/ Online type electricity indicator (with stable compensation)
5/ System safe protecting and alarm system
6/ System frame





Technique parameter

Model RGF18-6
Productivity 6000BPH
Filling Head 18
Capping Head 6
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 3 m3/h
Rinsing Water Consumption 1 m3/h
Motor Power 6.68kW
Voltage 380V
Dimension (L×W×H) 2450*1800*2200mm
Weight 3000kg
Filling Principle Gravity Filling


Customized service
1. We can design the machines according your requirements (materil ,power,filling type,bottles, and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We offer free technical support and consultation,such as draw the factory layout for you, alalyze the  source water report and so on.

After-sales service
1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.
2. When you finish the Preparation conditions ,our fast and professional after service engineer teamwill go to your factory to install the machine,give you the operating manual ,and train your employee until they can operate the machine well.
3. We provide one year warranty with spare parts free.
4. We ask the feedback from our customer and offer some help when the machine have been used for some time.
