| Bottle Material: | HDPE / PET Bottle | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Warranty: | One Year For Free | Capacity: | 3000BPH |
| Color: | Silver Gray | Weight: | 1500kg |
| Power: | 3kw | Overall Dimension(L*W*H): | 1600*1500*2200mm |
| High Light: | fruit juice production line,juice bottling machine |
||
PET / HDPE Bottle Milk / Juice Filling And Aluminum Foil Sealing
Machine
Introduction:

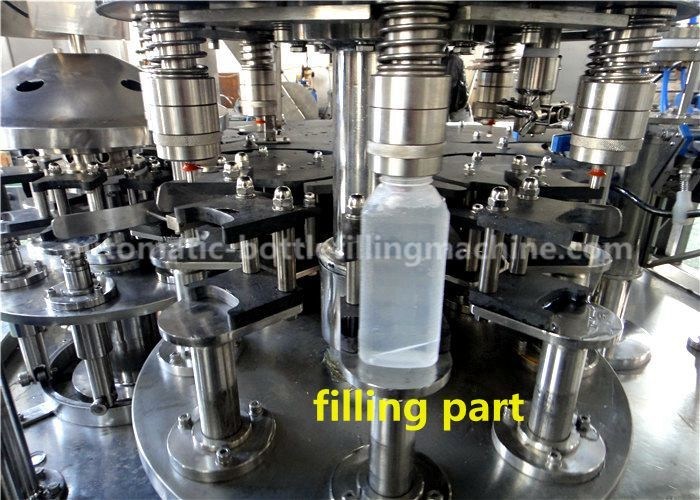

1. PET / HDPE Bottle Milk / Juice Filling And Aluminum Foil Sealing Machine is used for production of
bottle of milk, lactate milk,soymilk, juice etc.
2. The machine completes the process of vacuum negative pressure filling, cap forming, capping
(optional) and high frequency sealing automatically.
3. Adopting world famous brand products from Germany, America, Japan, etc., including various sorts of
valve and the system of PLC, optic-electronic and temperature control, pneumatic control and automatic
lubrication etc.
4. It is best choice for modernized enterprises.
Primary features:
1. The all parts directly contacted with media are all adopted with food stage stainless steel without dead
angle, so they can be cleaned easily.
2. Adopting advanced valve to control the inlet flow rate of liquids. It can keep the slight turbulence of
liquids level in the solution barrel and ensure the accuracy in filling.
3. Closing feeding valve automatically while no bottle on machine avoiding the loss of aqueous feet. Filling
automatically with a high speed and the control of liquids level is accurate.
4. High filling speed and mass flow rate, high precision of filling valve and control of liquids level is
accurate and without loss.
5. Carried the perfect protection system to overload; it can be used to protect facilities and operators
efficiently.
6. Because of applying touch screen for operation, it is possible to realize man-machine conversation
whereas the status of device running is clear at a glance.
7. The primary electric components such as touch screenPLCtransducer etc. are all adopted with world
famous products.
Technical parameter
| Model | 8-8-3 |
| Production capacity(500ml)(b/h) | 2000-4000 |
| Filling precision | ≤±5MM(Liquid Level) |
| Polyester bottle standard(mm) | Bottle diameter40-80 |
| Height(mm) | Height:130-280 |
| Suitable cap shape | Plastic Screw Cap |
| Water pressure of Washing bottle(MPa) |
0.18 |
| Water consumption for Water bottle (kg/h) | 800 |
| Spraying position | 5 |
| Dripping bottle position | 3 |
| Gas source pressure(Mpa) |
normal pressure |
| Gas consumption(m3/mm) | 0.3 |
| Total power(kw) | 3 |
| Total weight(kg) | 1500 |
| Dimension(L*W*H) | 1600*1500*2200mm |
The aluminium foil sealing machine can be cut foil and send the foil to the
bottle and seal it with electrical heating. The aluminium foil is one roll.
