Purified Water Bottle Filling Machine 6000BPH Capacity With Touch Screen

China Purified Water Bottle Filling Machine 6000BPH Capacity With Touch Screen supplier
Purified Water Bottle Filling Machine 6000BPH Capacity With Touch Screen supplier Purified Water Bottle Filling Machine 6000BPH Capacity With Touch Screen supplier Purified Water Bottle Filling Machine 6000BPH Capacity With Touch Screen supplier Purified Water Bottle Filling Machine 6000BPH Capacity With Touch Screen supplier Purified Water Bottle Filling Machine 6000BPH Capacity With Touch Screen supplier

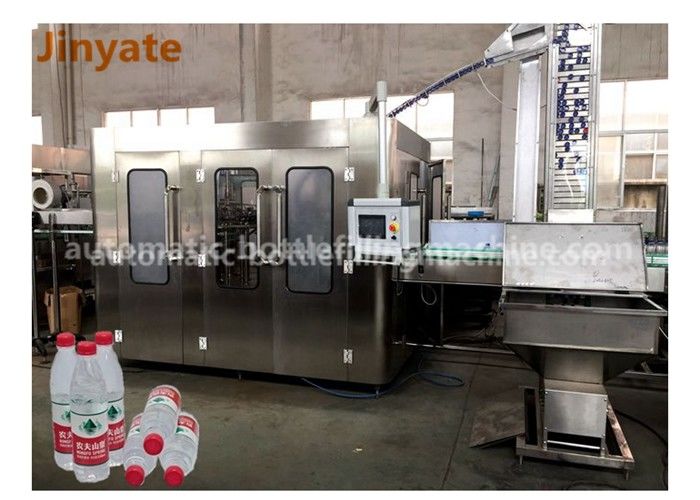

Large Image :  Purified Water Bottle Filling Machine 6000BPH Capacity With Touch Screen

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Filling Volume: 250-1500ml Bottle Type: PVC/PET Plastic Bottle
Overall Dimension(L*W*H): 2450*1800*2200mm Capacity: 6000BPH(500ml)
Filling Temperature: Room Temperature Control System: PLC Control+touch Screen
Automatic Grade: Fully-automatic Washing Water Consumption: ≤1T/H



Purified Water Beverage Bottle Gravity Filling Machine With Touch





Screen 6000BPH



Characteristics of equipment

1. 18 sets of bottle clamping robot for washing ,provided with inside﹠outside washing and reflow

mechanism of rotary seal;18 filling valves;One set of cap sorter;

2. 6sets of full-tooth screwing head with magnetic torque;when torque exceeds the preset

magnetism,screwing head will slip automatically to ensure that cap is firmly screwed while not damaged;

3. 4sets of bottle poking safety,no filling and capping in case of no bottle ;


Washing Unit

Washing unit is composed of the cramp and water distributor.Pneumatic conveying unit blows the bottle

into the bottle poking wheel which transfers the bottle to bottle clamp robot,the jaw firmly captures bottle

neck,cramp upturns the bottle 180° to vertical state under the action of guide rail,the bottle washed

comes to the filling position through level 2 bottle poking wheel.(This unit totally has 18 sets of

cramps).Water distributor is mainly composed of upper wearable ring and lower distribution disk.The ring

is suppressed by high-pressure sring and lower distribution disk which has 18 water outlets.On wearable

ring are long holes for water flushing ,with 4 flushing positions.

Filling Unit

Filling unit mainly consists of filling valve,filling transmission and liquid feeding device,etc.Washed bottle is

transferred to filling position via the poking wheel,while bottle clamping plate of filling unit clamps the bottle

and moves upward to seal bottle mouth,filling valve is then opened .The liquid is injected into bottle,when

inside liquid comes to air return pipe of filling valve,the system will stop filling ,Liquid in the tank is

conveyed by water pump which is controlled by liquid controller mounted on the cover

of tank,automatically feeding liquid in case of low level and stopping operation in case of full level.

Cap Screwing Unit

Purified Water Bottle Filling Machine 6000BPH Capacity With Touch Screen

This unit consists of 6 sets of cap screwing head,screwing transmission unit,cap setting pipe unit and

cap sorting unit,Plastic bottle from filling step enters the cap screwing position via the poking wheel.Before

the bottle enters this position under the action of poking wheel, photoelectric sensor detecting liquid level

gets signal to open the cap setting cylinder on cap setting pipe,cap blowing valve blows to enable the cap

enter into cap poking disk, the screwing head with magnetic torque descends to capture bottle

cap,afterwards descends to align with bottle head for cap screwing .When torque exceeds the preset

magnetism,cap screwing head will slip automatically,thus avoiding the cap being damaged by cap

screwing sleeve.The bottle screwed with cap is then transferred to conveyor belt by the poking wheel.On

the cap setting pipe are upper and lower photoelectric sensors,The upper one is to control the start and

stop of cap sorter,with the function of stopping cap sorter in case of plenty caps and starting cap sorter in

case of few caps,thus protecting the motor of cap sorter and saving the compressed air;the lower one is

to stop the unit in case of no cap. Cap sorter sorts caps in a horizontal,pneumatic manner,featuring fast

cap setting and no cap damage,and reverse cap could be automatically returned to the cap sorter

through reverse cap recovery pipe.
Purified Water Bottle Filling Machine 6000BPH Capacity With Touch Screen
Purified Water Bottle Filling Machine 6000BPH Capacity With Touch Screen

Technical parameter

ModelCGF18-18-6
Production capacity(500ml)(b/h)4000-6000
Filling precision≤±5MM(Liquid Level)
Polyester bottle standard(mm)Bottle diameter40-80
Height(mm)Height:130-280
Suitable cap shapePlastic Screw Cap
Water pressure of Washing bottle(MPa)

0.18

Water consumption for Water bottle (kg/h)1600
Spraying position5
Dripping bottle position3
Gas source pressure(Mpa)

normal pressure

Gas consumption(m3/mm)0.3
Total power(kw)5.03
Total weight(kg)3500
Dimension(L*W*H)2450×1800×2200mm









Contact Details
Zhangjiagang Jinyate Machinery Co., Ltd

Contact Person: Jane

Send your inquiry directly to us (0 / 3000)
