3 In 1 Carbonated Beverage Filling Machine Advanced Touch Screen 8 Capping Heads

China 3 In 1 Carbonated Beverage Filling Machine Advanced Touch Screen 8 Capping Heads supplier
3 In 1 Carbonated Beverage Filling Machine Advanced Touch Screen 8 Capping Heads supplier 3 In 1 Carbonated Beverage Filling Machine Advanced Touch Screen 8 Capping Heads supplier 3 In 1 Carbonated Beverage Filling Machine Advanced Touch Screen 8 Capping Heads supplier 3 In 1 Carbonated Beverage Filling Machine Advanced Touch Screen 8 Capping Heads supplier

Large Image :  3 In 1 Carbonated Beverage Filling Machine Advanced Touch Screen 8 Capping Heads

Product Details:

Place of Origin: China(mainlande)
Brand Name: JIAYUAN
Certification: CE SGS
Model Number: DCGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film wrapping, standard wooden cases package
Delivery Time: 35 working days
Supply Ability: 90 sets per hour
Contact Now
Detailed Product Description
Product Name: Carbonated Beverage Filling Machine Function: Rising Filling Capping
Model: DCGF24-24-8 Capacity: 7000B/H
Filling Type: Isobaric Filling Filling Material: Carbonated Drink, Soda Water, Soft Drink, Energy Drink Etc
Control: PLC+Touch Screen Voltage: 380V 50HZ 3Phaes
Material: SUS304 Warranty: 1 Year



PET Bottle Carbonated Water Soft Drink Filling Machine/Plant For



Small Factory





character



1). This equipment is automatic washing filling capping three in one machine. It is of many



advantages, such as compact structure, perfect control system and easy to be operated.



Advanced touch screen and PLC control system makes man-machine communication true.


2). Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-



plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse



water refluxing tank.


3). Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal



pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid



indicator, pressure gauge, vacuum pump, etc.


4). Capping part is mainly composed of capping heads, cap loader (separated), cap



unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the



auxiliary external equipment.


5). Main electrical components are all imported from world famous brands to guarantee excellent



performance of the whole machine.



machine pictures

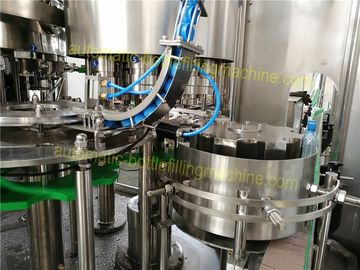

overall look



This Automatic 3-in-1 Wash-filling-capping Carbonated Water Filling Machine is used to produce



bottled carbonated beverage, like ,cola, soft drink,sparkling water or other gas Liquid. This



Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from



250ml-2000ml meanwhile few changeover is needed. It has 24 rising heads, 24 filling heads and



8 capping heads, can filling beverage 7000 bottles per hour.





3 In 1 Carbonated Beverage Filling Machine Advanced Touch Screen 8 Capping Heads

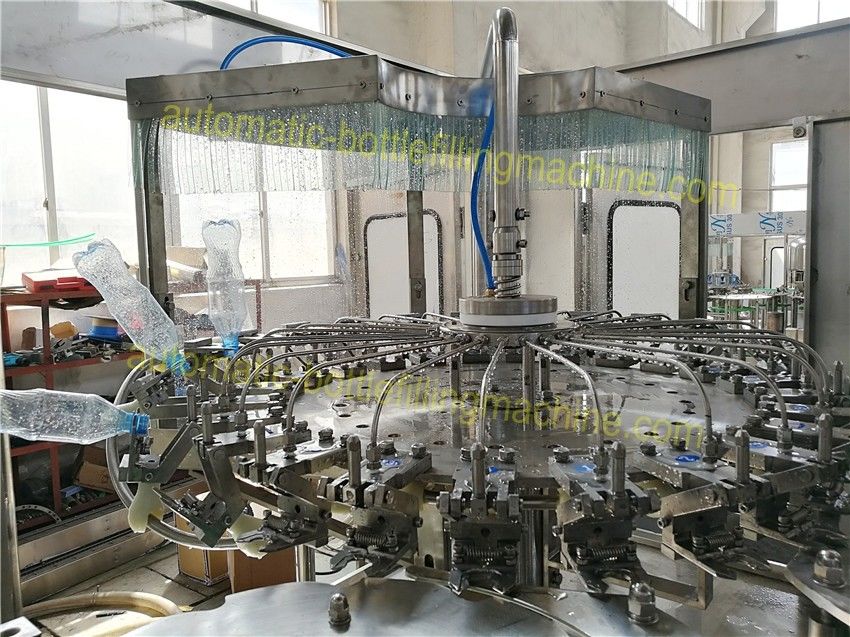

inner look



3 In 1 Carbonated Beverage Filling Machine Advanced Touch Screen 8 Capping Heads

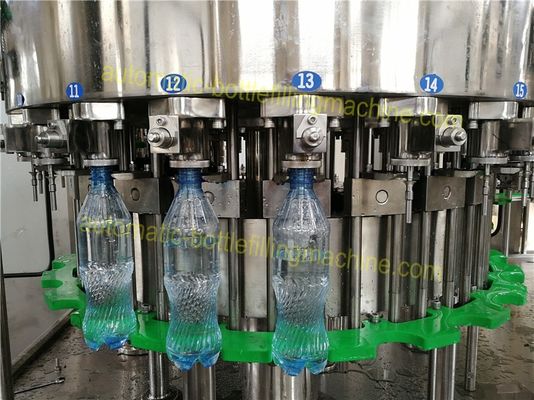

electrical system



3 In 1 Carbonated Beverage Filling Machine Advanced Touch Screen 8 Capping Heads



technical parameter



Carbonated drink filling machine DCGF24-24-8  (3-in-1 unit)

MACHINE
Production capacity
B/H
7000B/H 500ML
Rinsing/Filling/Capping heads
PCS
24/24/8
Power
KW
6.57

MACHINE

Weight
KG
2500
Size
MM
2300*1700*2400







we are professional in beverage filling machine, if you tell us your



request, we will offer you the most commercial proposal... ...
