Juice Bottle Rinsing Filling Capping Machine 4 In 1 Satisfying 95℃ Hot Filling Technology


Large Image :  Juice Bottle Rinsing Filling Capping Machine 4 In 1 Satisfying 95℃ Hot Filling Technology

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF40-40-40-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Capacity: 4000-20000bph Packaging Type: Bottle
Automatic Grade: Fully-automatic Overall Dimension: 6250*3050*2400mm
Weight: 2500kg Function: Bottle Washing Filling Capping
Control: PLC+ Touch Screen Filling Pressure: Negative Pressure
High Light:

fruit juice production line


small scale juice bottling equipment


Juice / Tea Bottle Sterilizing Rinsing Filling Capping 4-In-1 Machine In









Product brief introduction

1. The series equipment is used for the production of green tea blackteaan fruit juice and Filling Pulp,It


integrates sterilizing,rinsing,juice filling,capping together.


2. The design is scientific and reasonable . Its appearance is beautiful,operation and maintenance is




3. Advanced micro gravity type negative pressure filling principle, filling fast, steady, accurate, and is


equipped with perfect material flow system, also can realize independent gas back, back not in contact


with the material, reduce the secondary pollution of materials and oxidation.


4. This function satisfies the requirement of below 95℃ hot filling technology, filling valve and


materials in and out of the line without health dead Angle, at the same time equipped with CIP cleaning


interface, block is equipped with the bottle before RO water flushing device, to ensure that the bottle


without mould.


5. Catch is realized by using magnetic torque type screw LIDS, cover, screw cap function.Screw torque


stepless adjustable, with functions of constant torque rotary sealing plastic cover.


6. The whole machine adopts man-machine interface touch screen control, PLC computer program


control and inverter control, advanced technology.Is used for filling cap system automatic control,


automatic temperature testing, material high temperature alarm, automatic stop at low temperature and


reflux, no bottle no stamp, lack of bottle waiting, lack of cover downtime, etc



Technique parameters:

Model RCGFB24-24-24-8 RCGFB32-32-32-10 RCGFB40-40-40-12
Bottle washing head 24 32 40
Pulp filling head 24 32 40
Juice filling head 24 32 40
Cap screwing head 8 10 12
Rated production capacity 8000BPH 12000BPH 15000BPH
Installed capacity 6.5KW 8.7KW 9.5KW
Overall size 4070*2350*2400mm 5100*2600*2400mm 6250*3050*2400m

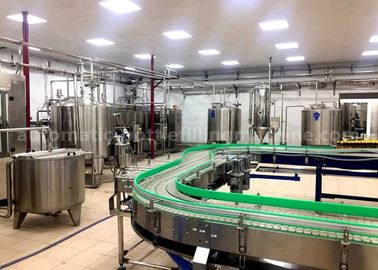

  We provide this RCGF40-40-40-12 juice filling line for our Congo's customer,


these pictures are photographed by our engineers when they installed the


machines in Congo


  If you want the video of it ,please kindly leave message to me,I can show


you the video of whole this juice filling line
