4.23kw 2000BPH 1 Liter Water Bottle Filling Machine Screw Cap Suitable

4.23kw 2000BPH 1 Liter Water Bottle Filling Machine Screw Cap Suitable
4.23kw 2000BPH 1 Liter Water Bottle Filling Machine Screw Cap Suitable

Large Image :  4.23kw 2000BPH 1 Liter Water Bottle Filling Machine Screw Cap Suitable

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF16-12-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Capacity: 2000BPH(500ml) Weight: 2000kg
Power: 4.23kw Warranty: One Year For Free
Function: Bottle Washing Filling Capping Voltage: 380V/50Hz
Dimension: 2100*1500*2200mm
High Light:

4.23kw 1 liter water bottle filling machine

,

2000BPH 1 liter water bottle filling machine

,

4.23kw drinking water bottle filling machine



Glass Water Bottle Filling Machine , Automatic Water Bottling Machine




Glass Water Bottle Filling Machine:

It integrates bottle rinser,filler,capper three functions into one Unit.It is widely used for Glass bottled Mineral water,pure water,drinking water,juice,Tea drink,flavored water and other non-gas beverage machinery.

It is suitable for 100-2000ml Glass Bottle(All the bottle mouth diameter must be same).It can fill 2000-20000 bottles per hour.

Each machine element that contacts with the liquid is made of high quality stainless steel.They obtain the advantages of good abrasive resistance,high stability,low failure rate,etc.The quality of the equipments reaches the international advanced level.



Technical parameters

Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
Production capacity(500ml)(b/h) 2000-4000 4000-6000 8000-10000 12000-15000(0.5L)
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280 (Height):150-320
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800 1600 2500 3500
Spraying position 5 5 6 12
Dripping bottle position 3 3 3.5 7
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.3 0.3 0.4 0.5
Total power 4.23 5.03 6.57 8.63
Total weight 2000 3500 5500 8000
Dimension(L*W*H)mm 2100×1500×2200 2450×1800×2200 2750×2180×2200

3500×2200×2250



4.23kw 2000BPH 1 Liter Water Bottle Filling Machine Screw Cap Suitable 0

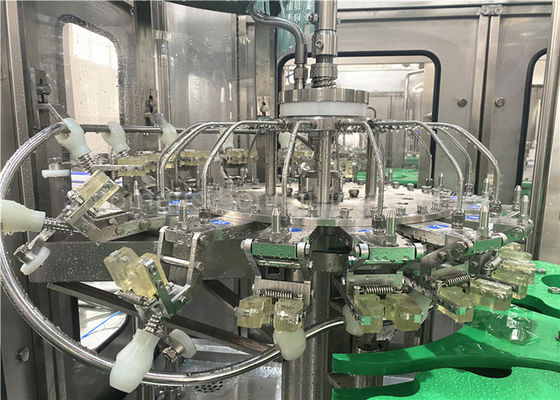

1. Rinser

1) The rotary wheel is a fully SS304 stainless steel welded structure.

2) This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber

gripper block of a traditional bottle clamp. Made of SS304 stainless steel, this bottle clamp is hygienic and

durable.

3) The rinse is driven by driving system positioned inside machine frame via gear transmission.

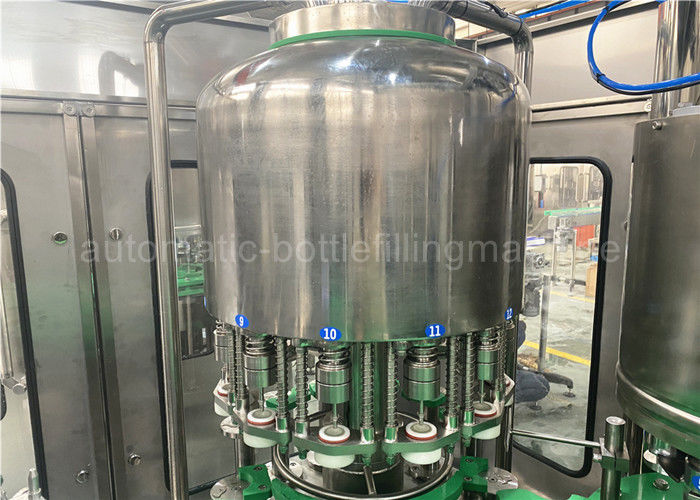

2. Filler

1) The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss.

2) Rotary wheel are fully made of stainless steel SS304.

3) Filling valves are designed and manufactured with German technology, featuring high filling accuracy and high filling speed.

4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.

5) Hydraulic pump is float-ball controlled.

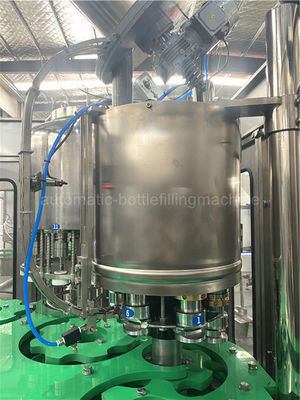

3. Capper

1) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover.

Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by

which it can avoid bottle without cover effectively.

2) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift,

they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.

3) Highly effective acentric way for cap sorting to reduce the abrasion.

4) It has the check-up device to control the cover lift.
