SUS304 10000BPH Bottled Water Filling Production Machines Hygiene grade

Large Image : SUS304 10000BPH Bottled Water Filling Production Machines Hygiene grade

Product Details:

Place of Origin:	CHINA
Brand Name:	JINYATE
Certification:	CE ISO
Model Number:	CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	please inquire
Packaging Details:	standard wooden case
Delivery Time:	40 working days
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Name:	Water Bottling Machine	Function:	Rinser Filler Capper
Filling Heads:	24	Capacity:	10000BPH
Material:	SUS304	Suitable Botte:	200-2000ml PET Bottle
High Light:	10000BPH Bottled Water Production Machines , 10000BPH water filling production line , SUS304 water filling production line

10000BPH Bottled Water Production Machines, Filling Machine Liquid, Plants

We can supply the complete water line plants:

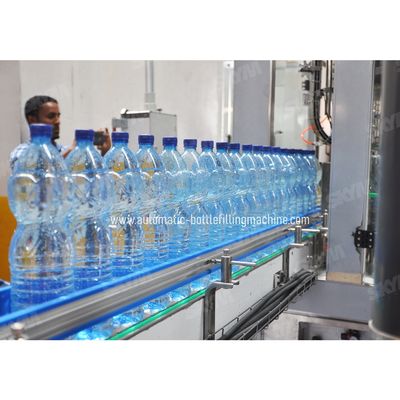

SUS304 10000BPH Bottled Water Filling Production Machines Hygiene grade 0

1. Water Treatment

* Raw water tank + Raw water pump
* Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
* Reverse Osmosis (one level)
* UV sterilizer
* Finished water tank + Pure water pump

2. Blow Molding Machine

1 / Blower : Industry-leading blower performance with patented control and self-regulation systems for repeatable and consistently high bottle quality
2 / Production flexibility: Up to 200 different equipment size configurations from one platform
3 / Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
4 / Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
5 / Efficient consumption: Up to 45 % less electricity and 35 % less compressed air

3. CGF Water Filling Machine [ Washing Filling Capping 3 in 1 type ]

1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime

SUS304 10000BPH Bottled Water Filling Production Machines Hygiene grade 1

4. Labeling Machine

Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 30,000 containers per hour, when standalone, at an efficiency rate of 98%.

5. Packing Machine

1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation

Techinal parameter

Model	CGF24-24-8
Amount of working position	Rinsing 24, filling 24, capping 8
Production Speed	10000bottles per hour (500ml)
Pressure of air source	0.3~0.7Mpa
Air consumption	0.2~0.6M3/min
Pressure of rinse water	0.06~0.2Mpa
Consumption of rinsing water	1t/hour
Main motor power	3.12kw
Dimension	276020602700(LWH)
Weight	4000kg

Final Products
