SUS304 1000BPH Mineral Water Bottle Packing Machine 24 Heads

SUS304 1000BPH Mineral Water Bottle Packing Machine 24 Heads
SUS304 1000BPH Mineral Water Bottle Packing Machine 24 Heads SUS304 1000BPH Mineral Water Bottle Packing Machine 24 Heads

Large Image :  SUS304 1000BPH Mineral Water Bottle Packing Machine 24 Heads

Product Details:

Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE ISO
Model Number: CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: please inquire
Packaging Details: standard wooden case
Delivery Time: 40 working days
Supply Ability: 100 sets per year
Detailed Product Description
Name: Water Bottling Machine Function: Rinser Filler Capper
Filling Heads: 24 Capacity: 10000BPH
Material: SUS304 Control: PLC+HIM+inverter
High Light:

1000BPH mineral water bottle packing machine

,

SUS304 mineral water bottle packing machine

,

1000BPH mineral water bottle filling machine

Automatic Bottle Filling Machine, Bottled Water Production Cost In Nigeria

SUS304 1000BPH Mineral Water Bottle Packing Machine 24 Heads 0

Bottled water plant machinery:
1. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
2. (Water Filtration) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into bottle) Bottle washing filling and capping machine.
4. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine.
5. (Printing the date on the bottle water) Date printing machine.
6. (package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine



Choose your production output per hour:

12-12-1 Bottle Water Washing Filling Capping Machine,Production:1000-2000 bottles per hour.
8-8-3 Bottle Water Washing Filling Capping Machine,Production:2000-3000 bottles per hour.
16-12-6 Bottle Water Washing Filling Capping Machine,Production:4000-5000 bottles per hour.
18-18-6 Bottle Water Washing Filling Capping Machine,5000-6000 bottles per hour.
24-24-8 Bottle Water Washing Filling Capping Machine,8000-10000 bottles per hour.
32-32-10 Bottle Water Washing Filling Capping Machine,10000-14000 bottles per hour.



Techinal parameter

Model CGF24-24-8
Amount of working position Rinsing 24, filling 24, capping 8
Production Speed 10000bottles per hour (500ml)
Pressure of air source 0.3~0.7Mpa
Air consumption 0.2~0.6M3/min
Pressure of rinse water 0.06~0.2Mpa
Consumption of rinsing water 1t/hour
Main motor power 3.12kw
Dimension 2760*2060*2700(L*W*H)
Weight 4000kg



SUS304 1000BPH Mineral Water Bottle Packing Machine 24 Heads 1

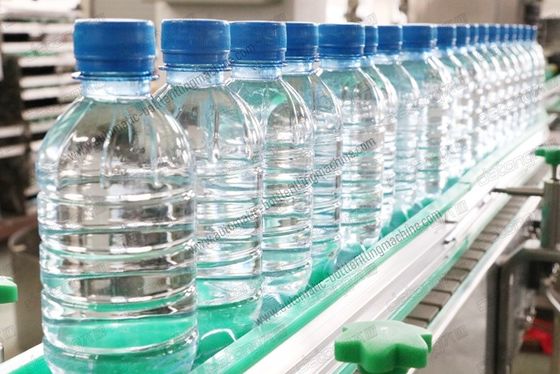

Final product

SUS304 1000BPH Mineral Water Bottle Packing Machine 24 Heads 2
