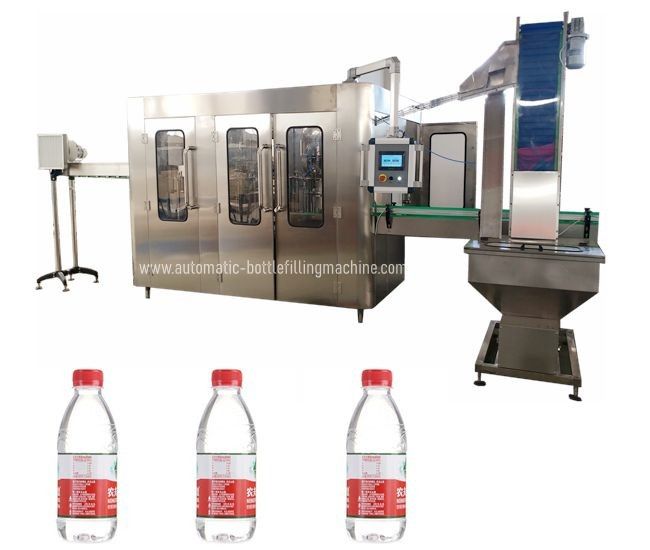

110mm 2000ml Mineral Water Bottle Filling Machine Rinser Filler Capper

110mm 2000ml Mineral Water Bottle Filling Machine Rinser Filler Capper
110mm 2000ml Mineral Water Bottle Filling Machine Rinser Filler Capper

Large Image :  110mm 2000ml Mineral Water Bottle Filling Machine Rinser Filler Capper

Product Details:

Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE ISO
Model Number: CGF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: please inquire
Packaging Details: standard wooden case
Delivery Time: 40 working days
Supply Ability: 300 sets per year
Detailed Product Description
Product Name: Water Filling Machine Filling Material: Mineral Water, Purification Water
Function: Rinser Filler Capper Capacity: 2000-30000 Bottle Per Hour
Suitable Bottle: 200-2000ml Control: PLC+inverter+HIM
High Light:

2000ml Water Bottle Filling Machine

,

110mm Water Bottle Filling Machine

,

2000ml mineral water filling machine

A to Z Automatic Bottle Filling Machine, Water Bottling Machines, Making Plants



Description

  • CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.
  • Different models can satisfy various requirement of output from 2000BPH to 36000BPH.
  • The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.
  • Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.
  • The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.
  • The photoelectric sensor detect all part running state, with high degree of automation, easy operation.





we have many different capacities, please check what you need

Model
CGF8-8-3
CGF16-12-6
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-12
Capacity
3000PBH(500ML)
4000PBH
(500ML)
6000PBH
(500ML)
10000PBH
(500ML)
14000PBH
(500ML)
18000PBH
(500ML)
Washing heads
8
14
16
24
32
40
Filling heads
8
12
16
24
32
40
Capping heads
3
5
6
6
8
10
suitable bottle
PET bottle,plastic bottle
Diameter of bottle
55-110mm
Height of bottle
150-310mm
Suitable cap
Plastic screw cap
Weight
1500kg
2000kg
4000kg
4500kg
6000kg
7800kg
Main motor power
1.2kw
1.5kw
3kw
5kw
7kw
10KW



Technial parameter

item value
Type Filling Machine
Material type Water
Structure Rotary
Applicable Industries Manufacturing Plant, Food & Beverage Factory
After Warranty Service Free spare parts, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V
Place of Origin China
  Jiangsu
Brand Name JINYATE
Dimension(L*W*H) 3430*2630*2450MM
Weight 6000kg
Certification CE,BV,SGS
Warranty 2 years
Key Selling Points Competitive Price
Machinery Capacity 2000-30000BPH
Filling Material Water
Filling Accuracy ±1%
Marketing Type New Product 2020
Machinery Test Report Provided
Video outgoing-inspection Provided
Warranty of core components 2 years
Core Components Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
After-sales Service Provided Engineers available to service machinery overseas
Material Stainlessl steel 304
Type Washing Filling Capping 3 in 1
Control PLC
Condition Brand new
Color Silver grey
Certificate CE, ISO,SGS


110mm 2000ml Mineral Water Bottle Filling Machine Rinser Filler Capper 0

Washing Part

1). The rotary disk is fully made of SUS304 stainless steel.

2). Using company original tilting bottle clip, bottle clamp stuck bottleneck, avoid the traditional bottle on rubber clip to block the bottle thread parts may be caused by the pollution. Bottle clip is made of SUS304 stainless steel, health and durable.

3). Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.

4). Bottle clamp and lifting mechanism of sliding sleeve adopts Germany Igus corrosion resistant bearing without maintenance.

5). Washing part moves by a frame in the transmission system through the gear transmission.

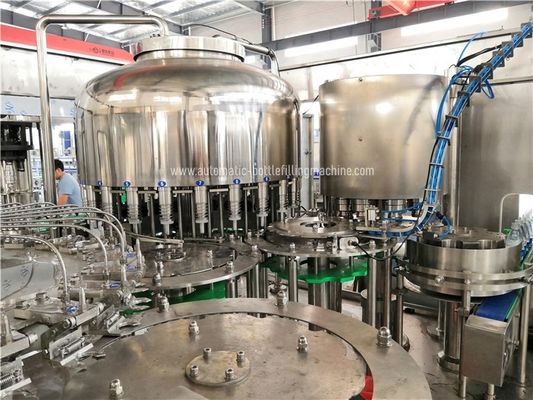

Filling parts

1). The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods.

2). The rotating disk and Filling valve are all made of SUS304 stainless.

3). Filling method is gravity filling.

4). No bottles no fill

5). Bottle struck no run



capping parts

1) Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

2) All stainless steel SUS304 construction

3) No bottle no capping

4) Automatic stop when lack of bottle, stop time can be set

110mm 2000ml Mineral Water Bottle Filling Machine Rinser Filler Capper 1



110mm 2000ml Mineral Water Bottle Filling Machine Rinser Filler Capper 2



We can provide the complete line plants, from A to Z:

110mm 2000ml Mineral Water Bottle Filling Machine Rinser Filler Capper 3
