0.5L 24 Heads 10000BPH Automatic Water Filling Machine With Touch Screen

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

0.5L 24 Heads 10000BPH Automatic Water Filling Machine With Touch Screen

0.5L 24 Heads 10000BPH Automatic Water Filling Machine With Touch Screen
0.5L 24 Heads 10000BPH Automatic Water Filling Machine With Touch Screen 0.5L 24 Heads 10000BPH Automatic Water Filling Machine With Touch Screen 0.5L 24 Heads 10000BPH Automatic Water Filling Machine With Touch Screen 0.5L 24 Heads 10000BPH Automatic Water Filling Machine With Touch Screen 0.5L 24 Heads 10000BPH Automatic Water Filling Machine With Touch Screen

Large Image :  0.5L 24 Heads 10000BPH Automatic Water Filling Machine With Touch Screen

Product Details:
Place of Origin: CHINA
Brand Name: JIAYUAN
Certification: CE ISO
Model Number: CGF24-24-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard wooden case
Delivery Time: 40 working days
Supply Ability: 300 sets per year
Detailed Product Description
Product Name: Water Bottle Filling Machine Filling Material: Water, Juice
Filling Heads: 24 Capacity: 9000-10000BPH@500ml
Suitable Bottle: 200-2000ml Control: PLC+touch Screen+transducer
High Light:

10000BPH automatic water filling machine

,

0.5L automatic water filling machine

,

10000BPH water filling line

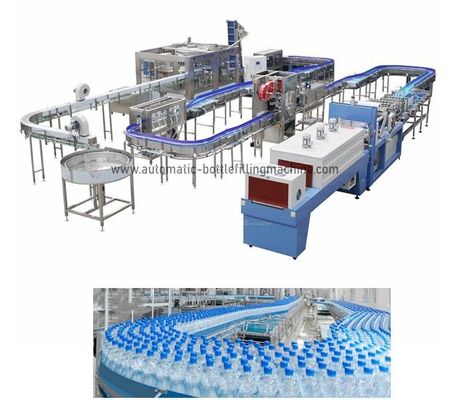

We can provide complete line plants for bottled water production, the whole water line includes:

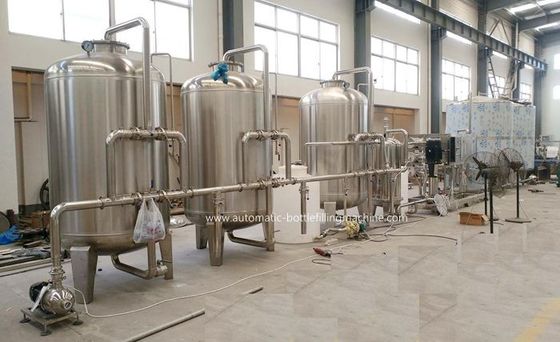

1. Water treatment system
2. Air conveyors
3. Water bottle washing filling capping 3 in 1 machine
4. Bottle blow dryer
5. Labeling system
6. Conveyors
7. Shrink packing machine


Choose your production output per hour:

12-12-1 Bottle Water Washing Filling Capping Machine,Production:1000-2000 bottles per hour.
8-8-3 Bottle Water Washing Filling Capping Machine,Production:2000-3000 bottles per hour.
16-12-6 Bottle Water Washing Filling Capping Machine,Production:3000-4000 bottles per hour.
18-18-6 Bottle Water Washing Filling Capping Machine,5000-6000 bottles per hour.
24-24-8 Bottle Water Washing Filling Capping Machine,8000-10000 bottles per hour.
32-32-10 Bottle Water Washing Filling Capping Machine,10000-13000 bottles per hour.

40-40-10 Bottle Water Washing Filling Capping Machine,15000-18000 bottles per hour.

50-50-15 Bottle Water Washing Filling Capping Machine,20000-24000 bottles per hour.

60-60-15 Bottle Water Washing Filling Capping Machine, 24000-30000 bottles per hour.



0.5L 24 Heads 10000BPH Automatic Water Filling Machine With Touch Screen 0



0.5L 24 Heads 10000BPH Automatic Water Filling Machine With Touch Screen 1

This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, juice, flavor drink, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

Water filling line/water filling machine price



0.5L 24 Heads 10000BPH Automatic Water Filling Machine With Touch Screen 2



Specification

item value
Type Filling Machine
Applicable Industries Manufacturing Plant, Food & Beverage Factory
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service, commissioning and training, Field maintenance and repair service
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V
Brand Name JIANYATE
Dimension(L*W*H) 3430*2630*2450MM
Weight 6000kg
Certification CE,BV,SGS
Warranty 2 years

Key Selling Points Competitive Price
Machinery Capacity 16000BPH
Filling Material Water
Filling Accuracy ±1%
Marketing Type New Product 2020
Machinery Test Report Provided
Video outgoing-inspection Provided
Warranty of core components 1 year
Core Components Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
After-sales Service Provided Engineers available to service machinery overseas
Material Stainlessl steel 304
Type Washing Filling Capping 3 in 1
Control PLC
Condition Brand new
Color Silver grey
Certificate CE, ISO,SGS
Material type Water
Structure Rotary
Filling valve Numbers 24



After Sales Service
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one
year without adding any aseptic.
4. After sales
After checking, we offer 2 years quality guarantee, free offer wearing parts and offer other parts at the lowest price. In
quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician. After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems.automatic water filling machine video
