Detailed Product Description
Driven Type: Electric Filling Type: Normal Pressure
Manufacturer: Factory Directly Sale Capacity: 10000BPH/500ml Pet Bottle
Bottle Volume: 200-2000ml Weight: 5500kg
Power: 6.57Kw Overall Dimension: 2750*2180*2200mm





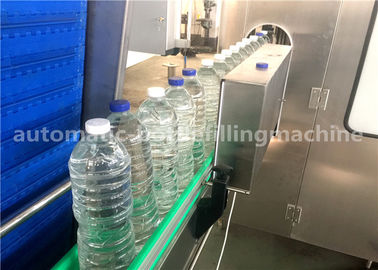

24 Heads Automatic Bottle Filling Machine , Pure Water Production Machine / Bottling Plant





Simply description:

This water filling machine is with bottle rinsing, filling and capping monobloc for drinking water (non-carbonated) filling.PET bottles infeed by combination of infeed grippers, equipped with bottle jam protection device, the machine applies unique overturning bottle clamp, which is an innovation of our Zhangjiagang Jiayuan machinery company .



Machine frame

The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated, the machine frame is wrapped with stainless stell SUS304.
Driving system of the 3-in-1 unit is positioned under the machine talbe. One main motor provides driving porwer via gear transmission.
The gear transmission system is an interleaved arrangement of stell gears and nylon gears.
The output shaft of the main motor is equipped overload protection to secure machine safety.
PLC electrical control system controls the fully automatic operation of the monobloc.



Technical parameter:

Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
Production capacity(500ml)(b/h) 2000-4000 4000-6000 8000-10000 12000-15000(0.5L)
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280 (Height):150-320
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800 1600 2500 3500
Spraying position 5 5 6 12
Dripping bottle position 3 3 3.5 7
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.3 0.3 0.4 0.5
Total power 4.23 5.03 6.57 8.63
Total weight 2000 3500 5500 8000
Dimension(L*W*H) 2100×1500×2200 2450×1800×2200 2750×2180×2200

3500×2200×2250

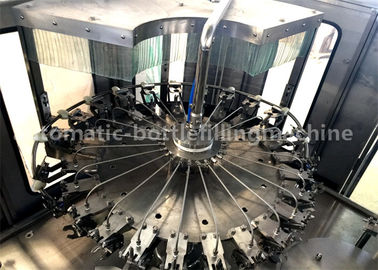

Filling part

Rotary wheel fully made of stainless steel SUS 304

Gravity filling method

Filling valves aer reasonably structured with accurate filling.

Bottle go up and down in the function of cam through elevator to process filling with contact to bottle-mouth.

Level of cylinder is controlled with float-ball

Filler is driven through gears inside the machine frame.
Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

24 Heads Automatic Bottle Filling Machine , Pure Water Production Machine / Bottling Plant

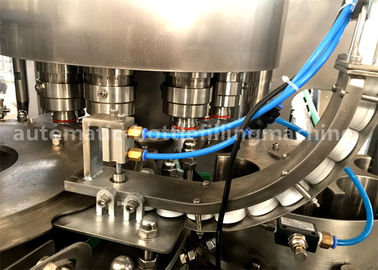

Capping part
