Stainless Steel 304 5.03kw Water Bottle Filling Machine Purified Drinking Water Plant

China Stainless Steel 304 5.03kw Water Bottle Filling Machine Purified Drinking Water Plant supplier
Stainless Steel 304 5.03kw Water Bottle Filling Machine Purified Drinking Water Plant supplier Stainless Steel 304 5.03kw Water Bottle Filling Machine Purified Drinking Water Plant supplier Stainless Steel 304 5.03kw Water Bottle Filling Machine Purified Drinking Water Plant supplier Stainless Steel 304 5.03kw Water Bottle Filling Machine Purified Drinking Water Plant supplier Stainless Steel 304 5.03kw Water Bottle Filling Machine Purified Drinking Water Plant supplier

Large Image :  Stainless Steel 304 5.03kw Water Bottle Filling Machine Purified Drinking Water Plant

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 6000BPH(500ml) Material: Stainless Steel 304
Weight: 3500kg Power: 5.03kw
Warranty: One Year For Free Function: Bottle Washing Filling Capping
Driven Type: Electric Voltage: 380V/50Hz



Stainless Steel 304 5.03kw Water Bottle Filling Machine Purified Drinking Water Plant




General description
3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

This series of mineral water filling machine are applied to the production of pure water, mineral water, with optional capacity from 3, 000 to 20, 000BPH.
The washing, filling and capping will be finished just by this one machine.
It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.
Advanced programmable PLC is equipped to control the main machine. Main electronic components are all from famous international enterprises. All spare parts that may touch with water are made from high-quality stainless steel.
Main features
1. Rinser
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts Sunswell original oVERTUrn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° Angle ensures to wash all side of the bottle, and can save the water.
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.
2. Filler

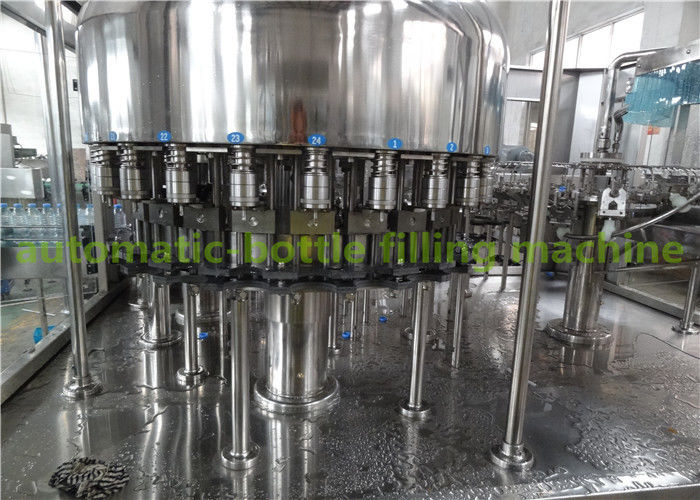

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm (subject to bottle design). The filling valve material is SUS304. The filling system has liquid level automatic control. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill. Bottle is conveying by the wheel in the filling part.
3. Capper
Screw capping machine is most precision part in the 3-in-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.



Technical parameters

Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
Production capacity(500ml)(b/h) 2000-4000 4000-6000 8000-10000 12000-15000(0.5L)
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280 (Height):150-320
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800 1600 2500 3500
Spraying position 5 5 6 12
Dripping bottle position 3 3 3.5 7
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.3 0.3 0.4 0.5
Total power 4.23 5.03 6.57 8.63
Total weight 2000 3500 5500 8000
Dimension(L*W*H)mm 2100×1500×2200 2450×1800×2200 2750×2180×2200

3500×2200×2250




Stainless Steel 304 5.03kw Water Bottle Filling Machine Purified Drinking Water Plant
Stainless Steel 304 5.03kw Water Bottle Filling Machine Purified Drinking Water Plant
Stainless Steel 304 5.03kw Water Bottle Filling Machine Purified Drinking Water Plant
