1000BPH Water Bottle Making Machine , Semi Automatic Blow Moulding Machine Compact Design

1000BPH Water Bottle Making Machine , Semi Automatic Blow Moulding Machine Compact Design
1000BPH Water Bottle Making Machine , Semi Automatic Blow Moulding Machine Compact Design 1000BPH Water Bottle Making Machine , Semi Automatic Blow Moulding Machine Compact Design 1000BPH Water Bottle Making Machine , Semi Automatic Blow Moulding Machine Compact Design

Large Image :  1000BPH Water Bottle Making Machine , Semi Automatic Blow Moulding Machine Compact Design

Product Details:
Place of Origin: China(Mainland)
Brand Name: JYT
Certification: CE SGS
Model Number: JYT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Supply Ability: 99 sets per year
Detailed Product Description
Product Name: Bottle Blow Molding Machine Type: Semi Auto
Bottle Size: 100-6000ml Capacity: 1000B/H
Voltage: 380v 50hz 3phases Material: Stainless Steel
High Light:

pet stretch blow moulding machine

,

plastic blow moulding machine



Semi Automatic 1000bph PET Bottle Extrusion Blow Molding



Machine





product description



semi-Automatic blow molding machine is designed uniquely with the innovative and



reasonable mechanical structure. During the whole producing process, the bottles mouth



faces down to avoid being overheated in the process of heating, which extends the



application widely used. We adopt the cheap compressed air as driving power, applying the



updated PLC technology to control automatically; presetting parameter, built-in self-



diagnosis, alarm and LCD display function. Touch-screen is adopted human interface,



friendly and visible which is easy to learn.



component



Preform up structure



The up one is to control the action of preform conveying structure. If there are too many preforms in



the tunnel, the moving will be stopped; if not enough, it will get preforms automatically from preform



conveying structure.



Heating tunnel



Preform heating structure is made up of three sets of heating tunnel in serials and one blower. Each



heating tunnel has been installed with 8 pieces of far ultra red and quartz lighting tube which are



distributed on each side of the heating tunnel.



Mould-closing device



It is located in the middle part of the machine and is composed of mould-closing cylinder, moving



template and fixed template, etc. Two halves of the mould are fixed on the fixed template and moving



template respectively.



PLC control system



PLC control system can watch on the preform temperature and if all the actions are finished according



to the setting programs, if not, the system will stop automatically



to avoid fault expanding. Besides, there are fault reason tips on the touch screen



Blow structure



Thanks to adopting bottom-blow structure, the bottle mouth is always facing down to be prevented



from the pollution of dust and dirtiness.



Air separation system



The blowing air and working air is separated from each other. . If the customer is able to use the clean



blowing air, it will ensure the production of bottles clean at most.





technical parameter





TYPE
ITEM
MEASUREMENT
HZ-880 Standard type
END PRODUCT
Material
/
PET/PP/PE/PC
Volume
L
0.05-2.5 (2-cavity)
3-6 (1-cavity)
Theoretical output
Pcs/h
0.05-2.5L/850
3-6L/400
Max.length
mm
360
max.diameter
mm
180
MOULD PLATE
Max.mould plate
dimension(L×H)
mm
420*500
Max.mould thickness
mm
160-240
Clamping force
KN
90
Mold opening stroke (adjustable)
mm
200
AUXILARY
High pressure Compressor M3/M pa
KW
>=0.7/3.0*2sets 22
Precision air filters
M3/M pa
>=1.0/3.0*2pcs
MAIN MACHINE ELECTRICITY
Power
KW
12
Voltage/Frequency
V/HZ
220-380/50-60
MACHINE SIZE
AND WEIGHT
Main body dimension(L×W×H)
M
1.45*0.6*1.75
Main body weight
T
0.6
Conveyor dimension(L*W*H)
M
1.40*0.62*1.25
Conveyor weight
T







product pictures

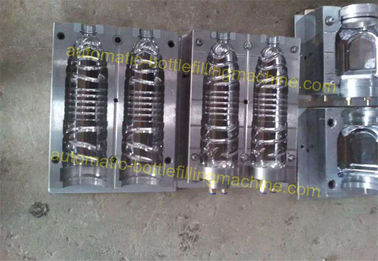

1000BPH Water Bottle Making Machine , Semi Automatic Blow Moulding Machine Compact Design 0

1000BPH Water Bottle Making Machine , Semi Automatic Blow Moulding Machine Compact Design 1

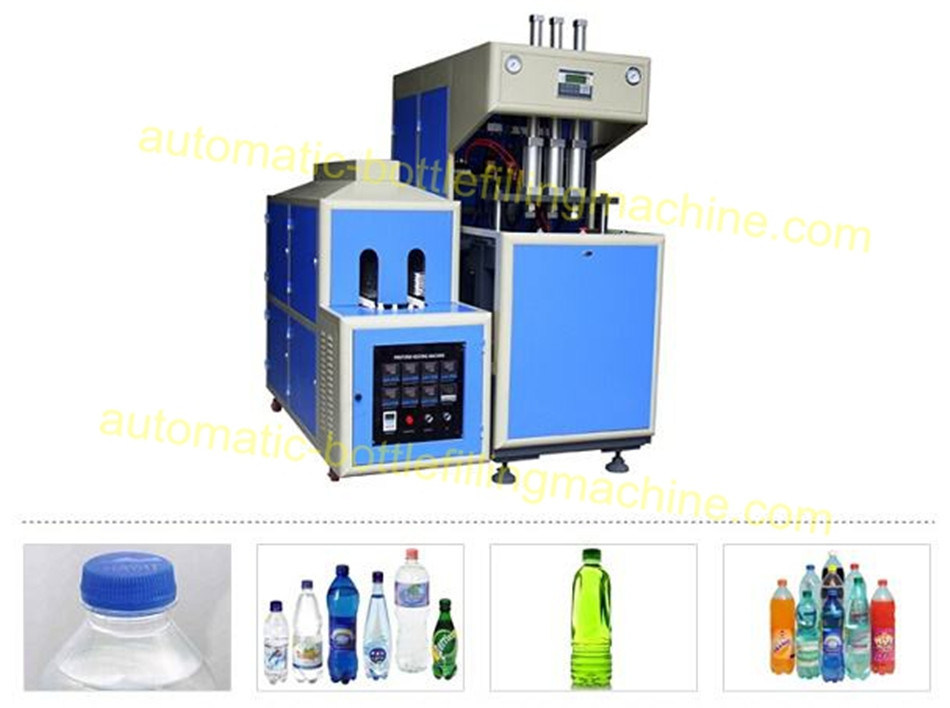

1000BPH Water Bottle Making Machine , Semi Automatic Blow Moulding Machine Compact Design 2
