| Product Name: | Reverse Osmosis | Usage: | Water Treatement |
|---|---|---|---|
| Function: | Water Purification | Capacity: | 1-20T/H |
| Material: | SUS304 | Warranty: | 1 Year |
| High Light: | liquid bottle filling machine,automatic bottle filling system |
||
Water Purification System Price / Commercial Reverse Osmosis
System / RO System
Brief introduction
water treatment system includes Quartz sand filter, active carbon filter, WATER SOFTNERS (WATER
CONDITIONER), high pressure pump, reverse osmosis system, Ozone generator and UV Sterilizer, RO
membrane etc.
1. Quartz sand filter -- mainly used for the removal of sediment from water.
2. Active Carbon filter-- mainly used for chlorine removal and other organic gases and to clear up
the taste of water .
3. Water Softener-- exchange "ions" of calcium and magnesium with the most common and
easiest method.
4. High pressure pump-- Provide the high pressure to RO membrane ro.
5. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%,
removing over 99% ions.
6. Ozone generator - Kills 99.9 percent of known harmful bacteria.
Function
Prevention of membrane fouling (including Fe3, Fe2, CaCO3, CaCO4, SrSO4, CaF2, SiO2, iron,
aluminum oxide).
Prevention of colloidal material and suspended solid particles from plugging.
To prevent organic fouling
To prevent microbial fouling
To prevent the oxidation of substances on the oxidative damage to membrane
To maintain the ultrafiltration plant capacity stability
RO membranes auto wash and manual wash
RO membranes manual wash with medicine
Pure water high water level auto stop,low water level auto start
Multi-phases pump protected without water
Protected when no power,poor power,large electrical cuttent short circuit,creepage of electricity.
In light of corrosion, pressure, vibration and temperature when choosing filter materials, we offer tailor-
made solutions according to raw water conditions of our customers. For example, if the TDS of raw water
is very high, customers will be recommended to use fiber glass filter tank so as to optimize the whole water
treatment system and also prolong the life of the reverse osmosis water treatment equipment.
technical parameter
| Model | RO-1000 | RO-2000 | RO-3000 | RO-5000 |
| Capacity(T/H) | 1T | 2T | 3T | 5T |
| Desalt rate | 99.5% | |||
| Rate of recovery | 50-60% | |||
| Weight(kg) | 1200 | 1600 | 2100 | 2500 |

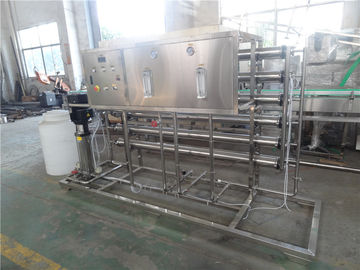

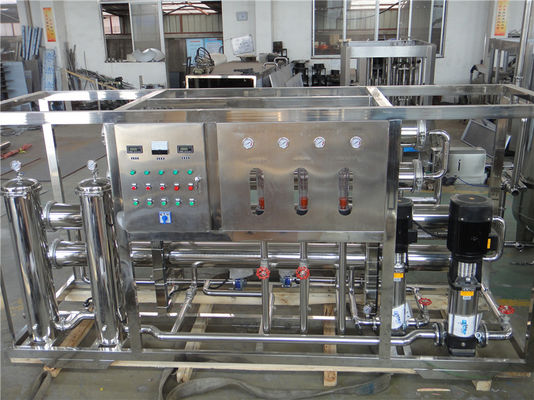

Product Pictrues
Flow chart :
Raw water tank—raw water pump—multi-medium filter--active carbon filter –water softner (Sodium Ion
Exchanger)—precision filter—RO mainframe(including chemical cleaning device)—ozone generator—
finished product water tank
we can supply all these plants, just pls have a furthur learn... ...
