3 In 1 Automatic Bottle Filling Machine Compact Structure For Complete Bottle Water Production Line

China 3 In 1 Automatic Bottle Filling Machine Compact Structure For Complete Bottle Water Production Line supplier
3 In 1 Automatic Bottle Filling Machine Compact Structure For Complete Bottle Water Production Line supplier 3 In 1 Automatic Bottle Filling Machine Compact Structure For Complete Bottle Water Production Line supplier 3 In 1 Automatic Bottle Filling Machine Compact Structure For Complete Bottle Water Production Line supplier 3 In 1 Automatic Bottle Filling Machine Compact Structure For Complete Bottle Water Production Line supplier 3 In 1 Automatic Bottle Filling Machine Compact Structure For Complete Bottle Water Production Line supplier

Large Image :  3 In 1 Automatic Bottle Filling Machine Compact Structure For Complete Bottle Water Production Line

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF12-12-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 1500BPH(based On 5L) Filling Material: Flowing Liquid
Machine Material: Food Grade Stainless Steel Overall Dimension(L*W*H): 3500*2300*2800mm
Bottle Type: Pet Bottle / Plastic Bottle Application: Food,beverage,commodity,chemical
Processing Type: Water Power: 2.2kw





Automatic 3-In-1 Filling Machine For Complete Bottle Water





Production Line





The CGF12-12-4 3-in-1 Filling Machine is suitable for filling big volume(3L-10L)polyester or



PET bottles with non-carbonated drinks (pure water, mineral water, etc.). It realizes an



automatic combination of three processes including bottle-washing, filling and cap-screwing.





Feature



1. This water filling machine has a compact structure, perfect control system, easy to operate and highly



automated.



2. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.



3. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the



demand of filling technology.



4. The capping head adopts constant torque magnetic device to guarantee capping quality and impact



cap.



5. This machine has a high efficient cap arranging system, perfect cap feeding and protection device.



6. Equipped with perfect clean management system to ensure the bottle clean.



7. Only by changing the star-wheel, can realize to fill the changed bottle shape.



8. The machine adopts perfect overload protective device can ensure the operator and machine safe.



9. This machine adopts adjustable frequency converter.



10. The main electric components, frequency, photoelectric switch, proximity switch, electric control



valves all adopt imported components, which can ensure the quality performance.



11. The control system has many functions, such as control producing speed, cap shortage detection,



bottle block automatic stop and production counting etc.



12. The electric components and pneumatic components are all introduced from world famous brand



products.





Technical parameter



Model
CGF9-9-4
CGF12-12-4
CGF16-16-4
CGF20-20-6
Rinsing head 9
12

 16

20
Filling head 9 12 16 20
Capping head 4 4 14 6
Production capacity(bottle/hour)
500-1000
1000-1500
1500-2000
2500-3000
Suitable bottle diameter(mm)
Φ=110-220 H=170-380(2000-6000ml)
Spraying pressure(kg/ m2)
2-3
Motor power(kw)
(Main motor)2.2kw
(Main motor)2.2kw
(Main motor)3kw
(Main motor)5.5kw
Overall dimension(mm)
2400x1650x2500
2600x1920x2550
3100x2300x2800
3800x2800x2900
Weight(kg)
2500
3500
4500
6500

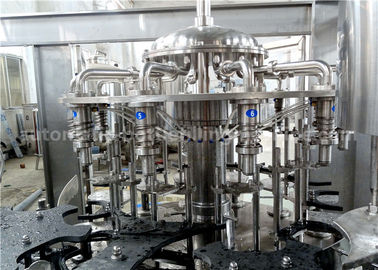

Overall apperance



3 In 1 Automatic Bottle Filling Machine Compact Structure For Complete Bottle Water Production Line



3 In 1 Automatic Bottle Filling Machine Compact Structure For Complete Bottle Water Production Line



Cap loader



3 In 1 Automatic Bottle Filling Machine Compact Structure For Complete Bottle Water Production Line





Welcome to visit our factory,This is Jane,If you want to know more detailed



information about this machine or the whole line,or the video of how is it



working,please leave message to me.
