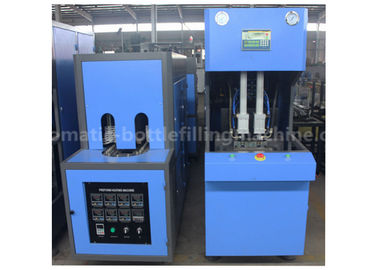

Semi Automated Bottle Blowing Machine 1KW For Plastic / PET Bottle HY-B-I

China Semi Automated Bottle Blowing Machine 1KW For Plastic / PET Bottle HY-B-I supplier
Semi Automated Bottle Blowing Machine 1KW For Plastic / PET Bottle HY-B-I supplier Semi Automated Bottle Blowing Machine 1KW For Plastic / PET Bottle HY-B-I supplier Semi Automated Bottle Blowing Machine 1KW For Plastic / PET Bottle HY-B-I supplier Semi Automated Bottle Blowing Machine 1KW For Plastic / PET Bottle HY-B-I supplier Semi Automated Bottle Blowing Machine 1KW For Plastic / PET Bottle HY-B-I supplier

Large Image :  Semi Automated Bottle Blowing Machine 1KW For Plastic / PET Bottle HY-B-I

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: HY-B-I

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Bottle Blowing Machine Application: Apparel, Beverage, Food
Packaging Material: Paper, Plastic, Wood Capacity: 800-1000BPH
Working Pressure: 0.8-1.0Mpa Blowing Pressure: 2.0-3.0Mpa
Power: 1kw Voltage: 220V



HY-B-I Semi-Automatic Mould Blowing Machine For Plastic / Pet Bottle





1kw





Features of main body:


1). Stable performance with advanced PLC.


2). Automatic preform conveyer to save human cost.


3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which



improve the bottle shaping rate, increase the production.


4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area



in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the



proper temperature and humidity invariable.



5). High safeties with security automatic-locking device in each mechanical action, which will make the



production into a perfect safe environment, in case of the breakdown in certain procedure.


6). Introduce the FESTO air cylinder to avoid contamination and noise.


7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the



blowing and action into three parts in the air pressure diagram of the machine.


8). Strong clamping force with high pressure and double crank links to lock the mould.



9). Two ways of operating: Automatic and manual.


10). Safereliable and unique design of the position of valve to make the pneumatic diagram in the



machine easier to understand.


11). Low costhigh efficiency easy operation and maintenance etc, profited from the fully automatic



technological process.


12). Ideal cooling system make the finished bottles without any flaws.


13). Easy for you to install test and start up.


14). Low rejection rate: Less than 0.2 percent





Technical parameter



Capacity 800-1000pcs/hr
Volume of product 100ml-2000ml
Structure Including 2 main machines and 1 infrared oven.
Preform length 15mm-350mm
Preform inner diameter φ5mm-φ38mm
Main machine size (L x W x H) 160x60x161cm
Main machine weight 500Kg
Infrared oven size 187x63x145cm
Infrared oven weight 250kg
Power 17.5kw





Bottle design



Semi Automated Bottle Blowing Machine 1KW For Plastic / PET Bottle HY-B-I

Bottle samples



Semi Automated Bottle Blowing Machine 1KW For Plastic / PET Bottle HY-B-I



Air dryer



Semi Automated Bottle Blowing Machine 1KW For Plastic / PET Bottle HY-B-I



Flow capacity 1.0m³/min
W.P 3.0Mpa
Inlet temperature ≤80℃
Dew point 23℃
Ambient temperature ≤38℃
Power supply 380V/50HZ
Compressor power 0.75kw
Cold medium

R22





High Pressure Air Compressor Unit



Air compressor 1.2m³/min
Volume 1.2m³
Pressure 30Mpa
Speed 620r/min
Power 15kw
Tank volume 0.15m³
Overall dimension 2000mm*1100mm*1600mm
Weight 620kg
