Automatic Water Bottle Filling Machine 3L 5L 10L Volume For Non Air Drinks

China Automatic Water Bottle Filling Machine 3L 5L 10L Volume For Non Air Drinks supplier
Automatic Water Bottle Filling Machine 3L 5L 10L Volume For Non Air Drinks supplier Automatic Water Bottle Filling Machine 3L 5L 10L Volume For Non Air Drinks supplier Automatic Water Bottle Filling Machine 3L 5L 10L Volume For Non Air Drinks supplier Automatic Water Bottle Filling Machine 3L 5L 10L Volume For Non Air Drinks supplier Automatic Water Bottle Filling Machine 3L 5L 10L Volume For Non Air Drinks supplier

Large Image :  Automatic Water Bottle Filling Machine 3L 5L 10L Volume For Non Air Drinks

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF9-9-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Material Of Machine: Stainless Steel 304 Bottle Type: PET Plastic Bottle
Warranty: One Year For Free Function: Bottle Washing Filling Capping
Color: Silver Gray Weight: 4500kg
Overall Dimension(L*W*H): 3100*2300*2800mm Export Markets: Global





Automatic 3L 5L 10L Bottle Mineral Water Filling Machine / Bottling



Plant







Product Description



The automatic 5 L water bottle filling machine is a full-automatic multiple-function washing, bottling and



capping unit. It is used in washing, bottling and sealing all kinds of non-air drinks such as fruit juice,



vinegar,wine,fruit wine, mineral water and drinking water. The line has features of unique design,new



style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automatic. It



is the best bottling equipment in China.





Detailed information



5L water filling machine is used to fill pure water, mineral water and other non-carbonated beverage. All



the water filling machine part which contact with liquid is high quality stainless steel 304. The relative



fittings are from international famous brand. This machine is comprised of rinsing, filling and capping



system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external



spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special



backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately.



Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping



performance the best. This machine owns the reasonable, stable and safe design. Under the condition



that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are



different. It improves the efficiency a lot. We are the water filling machine manufacturers in China.





Technical parameter



Model
CGF9-9-4
CGF12-12-4
CGF16-16-4
CGF20-20-6
Heads of washing,filling,capping
9-9-4
12-12-4
16-16-4
20-20-6
Production capacity(bottle/hour)
500-1000
1000-1200
1500-2000
2500-3000
Suitable bottle diameter(mm)
Φ=110-220 H=170-380(2000-6000ml)
Spraying pressure(kg/ m2)
2-3
Motor power(kw)
(Main motor)2.2kw
(Main motor)2.2kw
(Main motor)3kw
(Main motor)5.5kw
Overall dimension(mm)
2400x1650x2500
2600x1920x2550
3100x2300x2800
3800x2800x2900
Weight(kg)
2500
3500
4500
6500

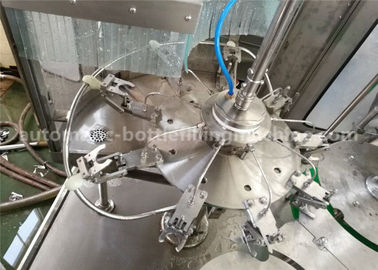

Inside look



Automatic Water Bottle Filling Machine 3L 5L 10L Volume For Non Air Drinks



Capping part



Automatic Water Bottle Filling Machine 3L 5L 10L Volume For Non Air Drinks



Capper loader



Automatic Water Bottle Filling Machine 3L 5L 10L Volume For Non Air Drinks



If you want to see the video of how is it working,please leave message to



me.
