Normal Pressure Mineral Water Bottle Filling Machine 2.25KW Touch Screen Operation

China Normal Pressure Mineral Water Bottle Filling Machine 2.25KW Touch Screen Operation supplier
Normal Pressure Mineral Water Bottle Filling Machine 2.25KW Touch Screen Operation supplier Normal Pressure Mineral Water Bottle Filling Machine 2.25KW Touch Screen Operation supplier Normal Pressure Mineral Water Bottle Filling Machine 2.25KW Touch Screen Operation supplier Normal Pressure Mineral Water Bottle Filling Machine 2.25KW Touch Screen Operation supplier Normal Pressure Mineral Water Bottle Filling Machine 2.25KW Touch Screen Operation supplier

Large Image :  Normal Pressure Mineral Water Bottle Filling Machine 2.25KW Touch Screen Operation

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE ISO SGS
Model Number: QS-12 CYG-12 FXZ-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Structure: Split Filling Pressure: Normal Pressure
Capacity: 2000BPH Control: PLC+touch Screen
Packing Volume: 250ml-2L Power: 2.25kw
Filling Material: Water,no-gas Liquid/beverage Bottle Material: PET Plastic Bottle



Small Scale Mineral Water Filling Machine / Turnkey Complete





Drinking Water Line







Introduction of Small Scale Drinking Water Filling Machine



1. This Automatic liquid filling machine/mineral water plant machine is mainly used for the filling operation,



washing, filling, sealing the three one, touch screen operation whole process automation, suitable for PET



bottles, plastic bottles.



2. The main filling mineral water purified water and vapor liquid, each part can be freely adjusted



according to the type of bottles, simple and quick, stable and reliable.



3. This machine adopts advanced PLC control system, control of the automatic machine operation. Into



the bottle using a wind feeding device, output bottle chain adopts adjustable speed mode, and host



interaction more stable operation, simple operation.



4. A high degree of automation, minneral water, pure water and other manufacturers the ideal equipment.





The complete small scale mineral water/beverage production line mainly includes 4



big parts.



1. PET preform injection machine



To produce the PET preform for bottle blowing at next step.



2. bottle blowing machine



Blow and form the PET bottle from the preform,prepare bottles for the filling line.



3. water purifying system



To purify the water from the source,make the water clean and meet the drinking water standard.



-1. water filters



-2. Reverse Osmosis machine



-3. UV sterilizer



-4. O-zone generator



-5. Finish water tank



4. water filling and packing line



To finish the bottle filling and packing in one line.



-1. 3 in 1 bottle filling and capping machine



-2. Bottle labeling machine



-3. Bottle wrapping and packing machine





Main parameter



Model: QS-12 CYG-12 FXZ-1
Capacity BPH: 2000B/H( basis on the 500ml bottle)
Suitable bottle size: 250-2000ml
Bottle standard:

Diameter 40-80 mm;

Height :130-280mm

Filling Precision: ±5mm(liquid level)
Suitable cap shape: Plastic screw cap
Spraying position: 5
Dripping bottle position: 3
Water pressure of washing bottle(MPa): 0.18
Weight: 1500kg
Dimension: 1800*800*1800mm
Power: 2.25kw



Water purifying system



Normal Pressure Mineral Water Bottle Filling Machine 2.25KW Touch Screen Operation





Bottle blowing machine



Normal Pressure Mineral Water Bottle Filling Machine 2.25KW Touch Screen Operation

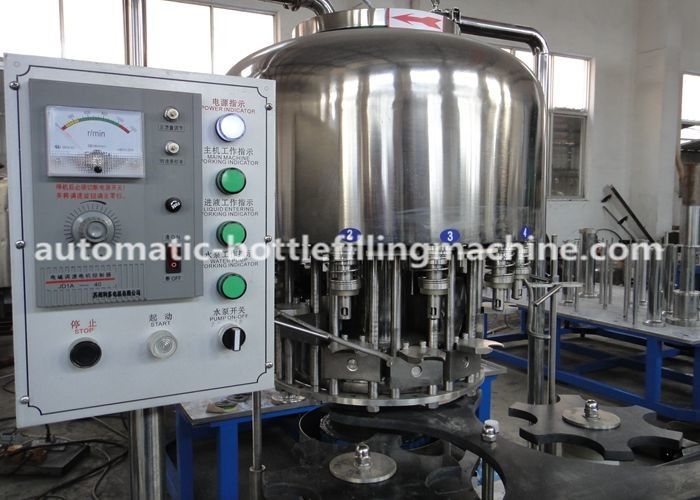

QS-12 CYG-12 FXZ-1 washing filling capping machine



Normal Pressure Mineral Water Bottle Filling Machine 2.25KW Touch Screen Operation




COMPONENTS BRAND LIST



1 PLC Siemens, Germany
2 Frequency converter Siemens, Germany
3 Contactor Schneider
4 Circuit breaker Schneider
5 Touch screen Siemens, Germany
6 Buzzer Schneider
