Industrial Water Purification Machine Silver Gray With High Pressure Pump

China Industrial Water Purification Machine Silver Gray With High Pressure Pump supplier
Industrial Water Purification Machine Silver Gray With High Pressure Pump supplier Industrial Water Purification Machine Silver Gray With High Pressure Pump supplier Industrial Water Purification Machine Silver Gray With High Pressure Pump supplier Industrial Water Purification Machine Silver Gray With High Pressure Pump supplier Industrial Water Purification Machine Silver Gray With High Pressure Pump supplier

Large Image :  Industrial Water Purification Machine Silver Gray With High Pressure Pump

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: One-stage,Two-stage

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: PE film wrapping,standard boxes packaging
Delivery Time: 30 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Condition: New Processing Type: Water
Material: Stainless Steel 304 Driven Type: Driven Type
Warranty: One Year For Free After-sales Service Provided: Engineers Available To Service Machinery Overseas
Color: Silver Gray Function: Removing Impurities From The Water



Industrial Application Water Treatment System / Water Purifying





Machine





Specification



This water treatment system / water purifying machine is used for producing high quality water for juice,



CSD,etc.



It adopts PLC control



Steady capacity: 1-20T/H





Detailed Information



One-stage reverse osmosis water treatment process



Original water(tap water, surface water,underground water) pass pretreatment ,sophisticated filter,and



then sent to reverse osmosis by high pressure pump to produce pure water directly that is known as one-



stage reverse osmosis.



One-stage reverse osmosis is suitable for the original water with conductivity less than 500 us/cm and



conductivity of output water is 1-10 us/cm.



Two-stage osmosis pure water treatment process



The original water(tap water,surface water, underground water) is sent to pretreatment system



by adding pressure to be filtered roughly, then to be filtered by sophisticated filter,after that



the water is transmitted to primary reverse osmosis by one-stage high pressure pump to be



filtered, then the water is added pressure again by secondary high pressure pump and sent to



second reverse osmosis system to produce the product water, that is called two-stage reverse



osmosis.



Original water conductivity>500us/cm,purified water conductivity:1-10us/cm



Ultra Filtration Mineral Water Treatment Process



Normally the ultrafiltration is used to produce mineral water and spring water. Driven by



pressure,it is a process of discharging impurity through different diameter hole on the



ultrafiltration membrane. At present, the hollow-fiber type of polysulfones are widely used in



water treatment industry.





Main parameter



Model Raw water conductivity Purified water conductivity
One-stage reverse osmosis less than 500us/cm 1-10us/cm
Two-stage reverse osmosis more than 500us/cm 1-10us/cm





Four filter(quartz sand filter,active carbon filter,sodium ion filter,precision filter)

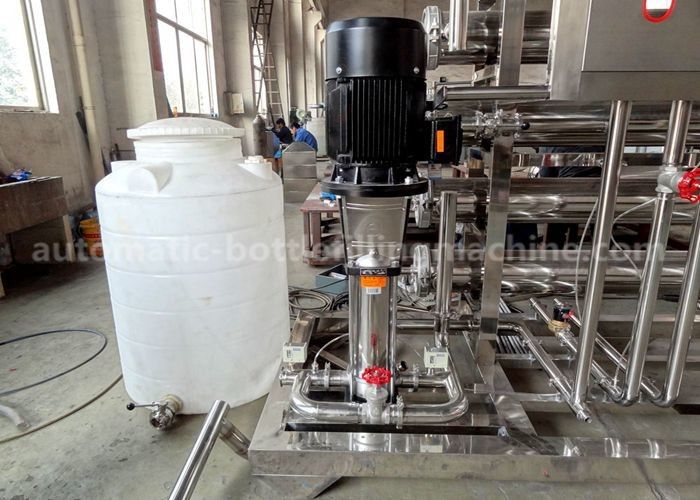

Industrial Water Purification Machine Silver Gray With High Pressure Pump



One-stage

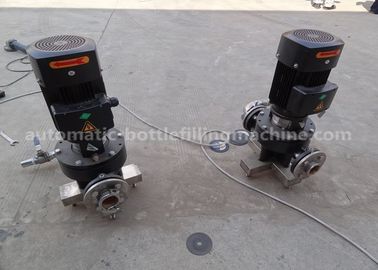

Industrial Water Purification Machine Silver Gray With High Pressure Pump



Ultra filtration

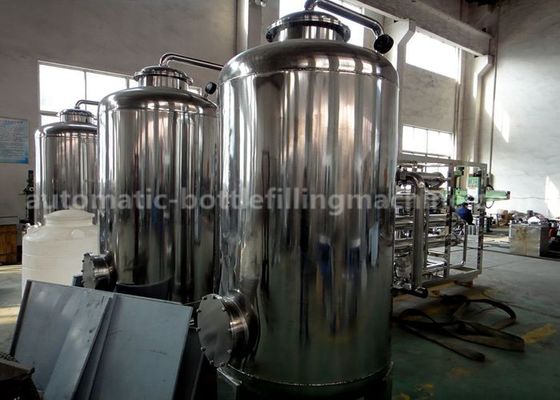

Industrial Water Purification Machine Silver Gray With High Pressure Pump



We offer professional turnkey project from design till done of the whole project.



1.Project consultation



2.Design



3.Factory building



4.Installation



5.Commissioning



6.Training
