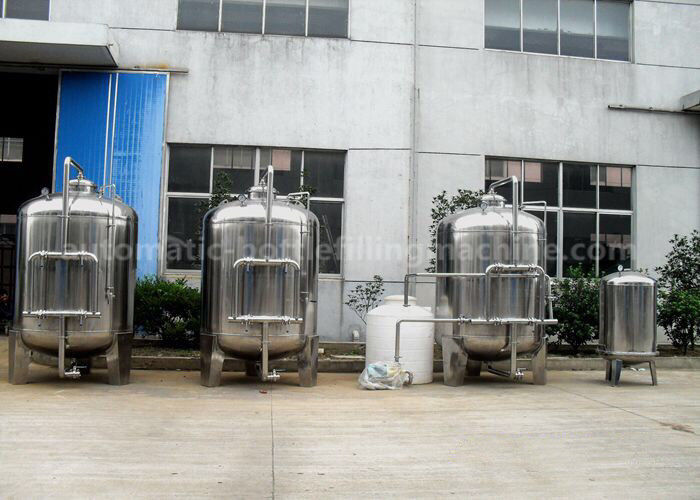

RO Purifying Reverse Osmosis Machine , Water Purifier Machine 10M³/H Processing Capacity

small.img.alt small.img.alt

Large Image :  RO Purifying Reverse Osmosis Machine , Water Purifier Machine 10M³/H Processing Capacity

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE ISO SGS
Model Number: Two-stage reverse osmosis
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Machine Material: Stainless Steel 304 Filtering System: Quartz Sand , Carbon, Sodium Ion,precision
Processing Capacity: 10m³/h After-sales Service Provided: Engineers Available To Service Machinery Overseas
Voltage: 220V/380V Condition: New
Warranty: 1 Year Usage: Pure Water Process
High Light:

water purification systems


water purification equipment


1T RO Water Treatment / Purification Machine For Small Pure Water


Filling Line




Two-stage osmosis pure water treatment process


The original water(tap water,surface water, underground water) is sent to pretreatment system by adding


pressure to be filtered roughly, then to be filtered by sophisticated filter,after that the water is transmitted


to primary reverse osmosis by one-stage high pressure pump to be filtered, then the water is added


pressure again by secondary high pressure pump and sent to second reverse osmosis system to produce


the product water, that is called two-stage reverse osmosis.


Original water conductivity>500us/cm,purified water conductivity:1-10us/cm


Water treatment system


1.According to the customer requirements and the source water quality, we adopt different equipment


to produce pure water.

2.The main equipments are quartz sand filter, active carbon filter, sodium ion filter, precise filter, RO(


reverse osmosis), UV sterilizer, ozone sterilizer,water tank,etc.

3.It can effectively get rid of muddy organic matter, iron, manganese and oxide, filter suspended


substance, colloid, remained oxygen of microorganism and some of heavy metal ion in the water,


reduce the hardness of the water to make all specifications of the water quality fully meet the state


fresh water standard of fresh drink water.






Machine name Drinking Water Purification Machines Plant RO Purifying Water Treatment System
Producing capacity 10,000LPH (Adjustable)
Feature Germany technology, easy operation, durable using, stable action
Purifier type Reverse osmosis device for pure water
Certification CE Certification






Machine Usage
Quartz sand filter To remove the particulate solids from waste water
Active carbon filter To remove the chlrine and the smell of water
Sodium filter To soften the water, and exchange the calcium ion & magnesium ion
Precise filter

To clear the granules bigger than 5 µm and also protect the reverse


osmosis device membrane

Reverse osmosis device Used to desalt and sterilizer the water, used for distill water
Ozone sterilizer and UV sterilizer Special for waste water disinfection



Purifier process


Raw water tank→Raw water pump→Quartz sand filter→Active carbon filter→Sodium filter→Precise


filter→Reverse osmosis device→Ozone sterilizer→UV sterilizer→Pure water tank
