Pineapple Juice Rotary Filling Capping Automatic Bottling Machine Plc Based

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Pineapple Juice Rotary Filling Capping Automatic Bottling Machine Plc Based

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE ISO
Model Number: RCGF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: please inquire
Packaging Details: standard wooden case
Delivery Time: 40 working days
Supply Ability: 100 sets per year
Detailed Product Description
Product: Juice Filling Machine Function: Rinsing Filling Capping
Filling Heads: 32 Capacity: 13000-14000BPH
Filling Material: Juice, Tea, Water, Still Beverage Power: 380V 50HZ 3PHASE
High Light:

Pineapple Juice automatic bottling machine

,

2000ml rotary filling capping machine

,

plc based automatic bottle filling system

Automatic Bottle Filling Machine, Tea Mango/ Pineapple Juice Making Machine



This machine combines rinser filler capper in one unit, can fill all juice,

water, tea drink, vinegar, and other still beverage,

it can work different size bottle, from 200ml to 2000ml.



Pineapple Juice Rotary Filling Capping Automatic Bottling Machine Plc Based 0

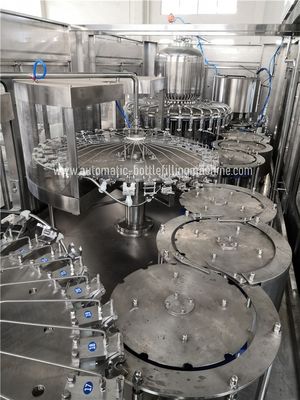

Rinsing

-Rotative rinsing turret one treatment, fixed nozzles, with grippers. -The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip. -After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

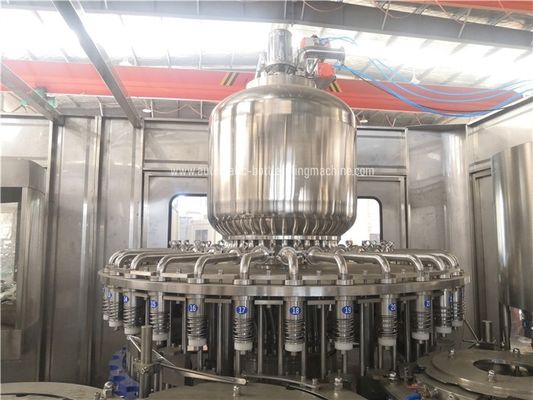

Filling

-The starwheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design. -Product bowl is to reduce the loss of heat. -If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.



Capping

-Rotative capping turrent, suitable to the application of screw plastic caps on PET bottles -The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. -The heads are raised and lowered by the action of a follower that is riding on a shaped cam.



RCGF32-32-32-10

Pineapple Juice Rotary Filling Capping Automatic Bottling Machine Plc Based 1

Model RCGF32-32-10
Capacity 12000-15000bph (500ml PET bottle)
Suitable bottle Polyester bottle, PET bottle
Filling materail Fruit juice, tea, coffee, other non-carbonated beverage
Bottle Height 150-310mm
Bottle Diameter 40-108mm
Filling Temperature ambient
Filling Technology gravity filling
Applications purified water and mineral water
Power supply 380V 50Hz 3Phases or customized
Total power 9.18KW
Dimension 3600*2800*2200mm
Weight 5500kg
FAQ

We are a manufacturer.
we have been certificated by the famous cercification authority.
we have been in beverage packing more than 13 years.
we can help you to start a new company in beverage making.
we make all of our customers be satisfied with the machine and our service.
we will install the machine for you ,and train your employees to use the machine well.
we will provide one year warranty with free spare parts.

Any question about this machine or our factory ,contact with us please,sincere service for you .we will send you more pictures and video about this machine,and welcome to visit our factory to see the machine running in the factory.
