Payment & Shipping Terms:
|Bottle Type:||PET Plastic Bottle||Color:||Silver Gray|
|Warranty:||One Year For Free||Control System:||PLC+touch Screen|
|Filling Material:||SS304||Function:||Bottle Washing Filling Capping Machine|
automatic bottling machine,
liquid bottle filling machine

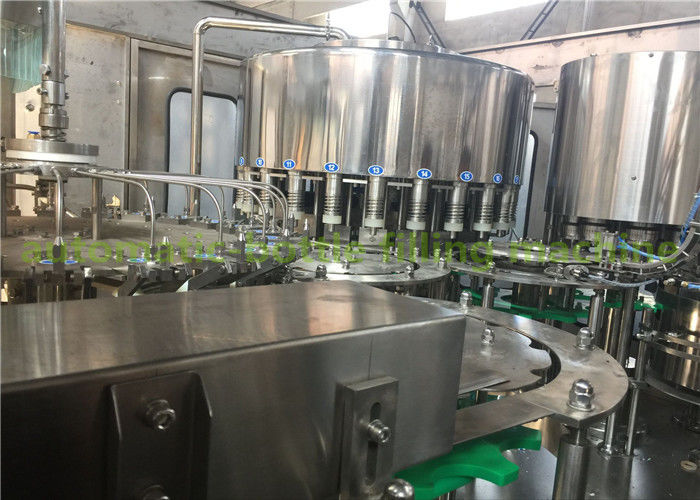

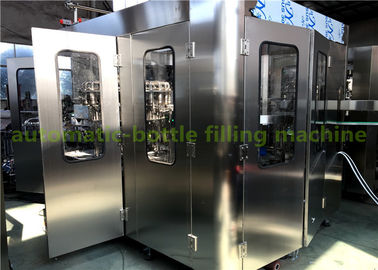

This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
Features of washing part:
The rinsing part using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.
Features of filling part:
The Filling part with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features. Use high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate.
Features of capping part:
The capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg/L.The caps are free from deforming,and can flow smoothly in large quantities during transmission.The capper has the function of automatic de loading,which helps lower the bottle breakage
|Filling precision||≤±5MM(Liquid Level)|
|Polyester bottle standard(mm)||Bottle diameter40-80;|
|Suitable cap shape||Plastic Screw Cap|
|Water pressure of Washing bottle(MPa)||0.18|
|Water consumption for Water bottle (kg/h)||800|
|Dripping bottle position||3.5|
|Gas source pressure(Mpa)||normal pressure|
