| Dimension(L*W*H): | 1100*1050*1800mm | Weight: | 1600kg |
|---|---|---|---|
| Filling Pressure: | Normal Pressure | Capacity: | 2000BPH |
| Color: | Silver Gray | Voltage: | 220V/380V |
| Driven Type: | Electric | Power: | 2.25kw |
| High Light: | automatic liquid filling machine,rinsing filling capping machine |
||
Video of small scale water bottle filling capping,bottle drying machine
https://www.youtube.com/watch?v=9Hi76Z_bqUs&feature=share

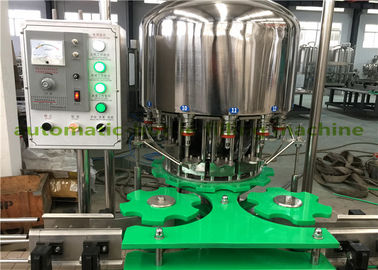

Equipment introduction of structure
--filling
--capping
--Bottle dryer
--Conveyor transmission
It is applicable for round and abnormity PET mineral water pure water and juice, etc.The key parts for washing,filling and sealing are made of high quality stainless material,with the features of advanced technology,completed system,reliable performance,easy in operation,etc.
1. Range of bottle capacity: 200--1500ml
2. Range of bottle diameter: Dia 50_& dia 92mm
3. Range of bottle height: 140--330mm
4. Inner diameter of the bottleneck: Dia 20-- & dia 30mm
Body machine ---(electric)
---(electric box)
---(working platform)
---(main transmission)
---(Chain box and entering and exiting arc board)
---(frame)
Technique characteristics
1. Valve quantities of filling: 12 heads
2. Heads of capping: 1 head
3. Heads of washing: 12 heads
4. Capacity: 500ml 2000b/h;1000ml 1000b/h;1500ml 700b/h (Can suits for your different bottle size )
Main parameter
Type & name |
QG-12 |
GCP-12 |
FXZ-1 |
Production capacity bph(500ml) |
1000-3000 |
1000-2000 |
1000-2400 |
Head of washer filler capper |
12 |
12 |
1 |
Applicable bottle type(mm) |
H:150-320 D:50-100 volume:150 - 2000ml |
||
Motor power(kw) |
1.2 |
1.1 |
0.55 |
Dimension(LXWXH)(mm) |
1200X1200X1680 |
1200X1150X1980 |
940X700X2130 |
Weight (kg) |
900 | 1200 | 600 |
Features
1. This CGY Series Wash-filling-capping 3-in-1unit is used to produce polyester bottled mineral water,
purified water, alcoholic beverage machinery and other non-gas beverage machinery. It can finish all the
process such as press bottle, filling and sealing, it can reduce the materials and outsiders touch time,
improve the sanitary conditions, production capacity and economic efficiency.
2. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw
and conveyor chains, this enable the change the bottle-shaped become easier.
3. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the
equipment level, only change related the curved plate, wheel and nylon parts is enough.
4. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with
the screw location of bottle mouth to avoid secondary pollution.
5. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
6. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor
chains.
7. Host adopts advanced PLC automatic control technology, the key electrical components from famous
company such as Japan's Mitsubishi, France Schneider, OMRON.
Bottle dryer
COMPONENTS BRAND LIST
| 1 | PLC | Siemens, Germany |
| 2 | Frequency converter | Siemens, Germany |
| 3 | Contactor | Schneider |
| 4 | Circuit breaker | Schneider |
| 5 | Touch screen | Siemens, Germany |
| 6 | Buzzer | Schneider |
