Flavoured Juice Drink Beverage Filling Machine For Small Fruit Juice Factory

China Flavoured Juice Drink Beverage Filling Machine For Small Fruit Juice Factory supplier
Flavoured Juice Drink Beverage Filling Machine For Small Fruit Juice Factory supplier Flavoured Juice Drink Beverage Filling Machine For Small Fruit Juice Factory supplier Flavoured Juice Drink Beverage Filling Machine For Small Fruit Juice Factory supplier Flavoured Juice Drink Beverage Filling Machine For Small Fruit Juice Factory supplier

Large Image :  Flavoured Juice Drink Beverage Filling Machine For Small Fruit Juice Factory

Product Details:

Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE ISO
Model Number: BCGF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: pls inquiry
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Supply Ability: 99 sets per year
Contact Now
Detailed Product Description
Product Name: Glass Bottle Filling Machine Filling Materal: Still Water, Juice, Tea
Capacity: 1000-24000BPH Material: Stainless Steel SUS304
Functions: Washing Filling Capping Warranty: 1 Year
Spare Parts: Free Voltage: 380V Or Customized

Flavoured Juice Drink Making Filling Machine For Small Fruit Juice Factory



ADVANTAGE OF OUR MACHINE

Advantages of our juice filling machine
1). Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent.
2). Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
3). The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
4). Sanitary filling head system is of umbrella structure, high filling speed.
5). Perfect filling temperature control system.
6). Reflux tank system has the function of supplying the material automatically.
7). Perfect CIP system.



Features

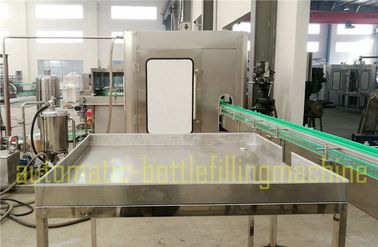

1. Rinsing empty bottle, filling, and capping functions are integrated in one system, fully automatic synchronized working.Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.

Flavoured Juice Drink Beverage Filling Machine For Small Fruit Juice Factory

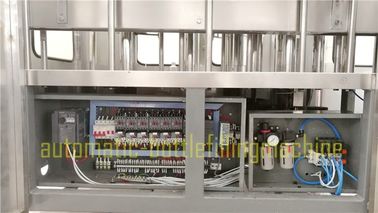

2. Pressure or vacuum filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.

Flavoured Juice Drink Beverage Filling Machine For Small Fruit Juice Factory

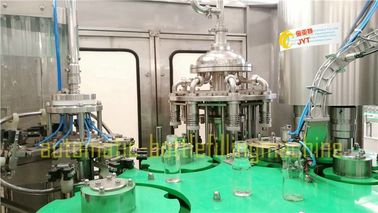

3. No Bottle No Filling, no caps no capping, no caps auto stops.When bottle jam auto stop, machine accident auto stop.Open the window when machine running, machine auto paused.Heavy duty stainless steel filling pump & rinsing pump.Food grade 316L or 304stainless steel contact parts, smooth & fine Polish, no dead angles.

Flavoured Juice Drink Beverage Filling Machine For Small Fruit Juice Factory

4. Adopted first class component from Mitsubishi, OMRON, SIEMEN, With PLC, invertors control, touch screen, sensor, switch and other electric parts.
5. Machine and cable arrangement designed according to CE standard and all safety standard.



WHAT IS THE DETAILS OF OUR COMPLETE BOTTLING PLANT
Rated capacity 1000-24000BPH
Filling Liquid PURE WATER; MINERAL WATER; SPRING WATER,JUICE,TEA
Filling Container T ype

GLASS Bottle; Max Diameter 96,

Max Height 310mm

Filling Type N eck-hold conveyo , Gravity filling
Cap Twist off cap,Plastic Screw Cap, Sport Cap, Crown Cap...Ect
Filling Temperature Room Temperature or hot filling
Label Material Adhesive Label; OPP Label
Wrap Film Material PE / PET,carton
Conveyor Mode l

Full Bottle:Conveyor Belt

Factory Condition

Temperature:10~40℃

Humidity:no dew(≤95%)

Resource Voltage According Customer ' s Factory Voltage Design.
Efficiency > 9 5 %



if you tell me your capacity i will offer you our professional and commercial proposal... ...
