| Name: | CO2 Mixer | Usage: | Carbonated Beverage Mixing |
|---|---|---|---|
| Mixing Rage: | 1:3-1:6 | Mixing Accuracy: | ≤2% |
| Voltage: | 380V 50HZ | Capacity: | 1-10T |
| Material: | SUS304 | Warranty: | 1 Year |
| High Light: | automatic drink mixer,beverage mixer machine |
||
1. Product Application
QHS series beverage mixer is designed and made for improving the proportion of water, syrup
and carbon dioxide. It adopts foreign advanced technology—static mixer to lighten water layer,
increase carbonizing time, assure mixing result and Deoxidation. It adopts high-quality water
pump and SEIMENS electrical equipment and other parts to form complete automatic control
system. It has coordinating action, beautiful appearance, convenient washing, high automatic
level and other advantages.
This machine is mainly used to the carbonation and mixing of water, syrup and carbon dioxide in
the production of various carbonated drinks such as soda water, fruit juice, cola and other soft
drink. This machine is the main equipment in the whole beverage production.
2 Products Structure and Working Procedure

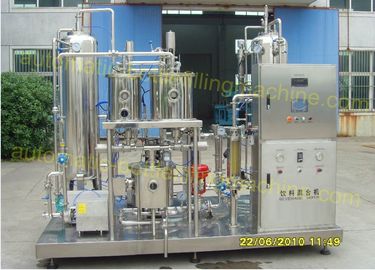

(1). CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling
system, air providing tank, and necessary producing pipe and cleaning pipe including ball valve,
magnetism valve, check valve are composed this machine. (See photo 1: main structure)
(2). Main working Procedure
a. Cooling water→multi-grade pump→oxygenating CO2→volume control
b. Cooling syrup→multi-grade pump→syrup tank→volume control
(a and b → multi-grade pump→static mixing device)
c. CO2 air resource→filter and pressure reducing→ tank→filling machine
Parameter
| Name | CO2 mixer |
| Usage | mix CO2 and water |
| Suitable beverage | carbonated beverege, cola, soft drink, energy drink |
| Capacity | 1-10T/H |
| Voltage | 380V 3Phases or 220V single phase |

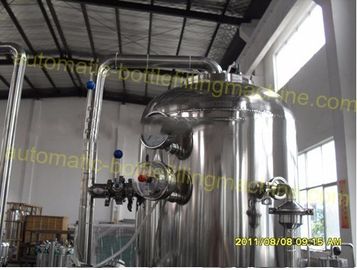

Machine Details
