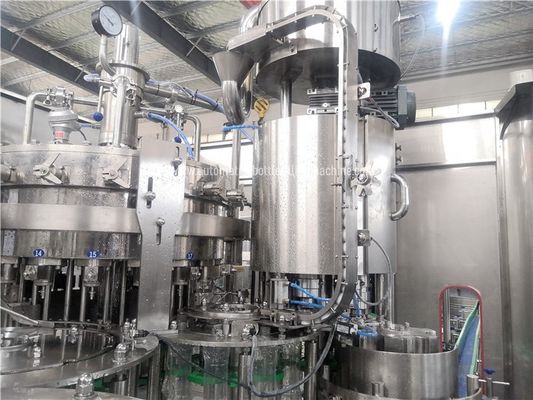

Rotary Carbonated SUS304 Soda Bottle Filling Machine Low Noise

Rotary Carbonated  SUS304 Soda Bottle Filling Machine Low Noise
Rotary Carbonated  SUS304 Soda Bottle Filling Machine Low Noise

Large Image :  Rotary Carbonated SUS304 Soda Bottle Filling Machine Low Noise

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE ISO
Model Number: DCGF24-24-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: please inquire
Packaging Details: standard wooden case
Delivery Time: 40 working days
Supply Ability: 300 sets per year
Detailed Product Description
Product Name: Carbonated Drink Filling Machine Function: Rinser Filler Capper
Capacity: 1000-24000BPH Bottle Size: 200-2000ml PET Bottle
Machine Material: Stainless Steel SUS304 Filling Material: Soda, Soft Drink, Fizzy Drink, Carbonated Juice
High Light:

carbonated soda bottle filling machine

,

SUS304 soda bottle filling machine

,

Rotary carbonated filling machine

Carbonated Water Juice Bottling Plant, Soda Complete Production Line Turnkey





Features:

This washing filling capping machine is mainly used for carbon dioxide drink, such as cola, soda water, soft drink, sparkling water, energy drink, beer and so on. The machine design is shorten the time for the drink material contact with outside, increase the sanitation condition throughout economy benefit.

The available capacity is from 1000 bottles per hour to 24000BPH.

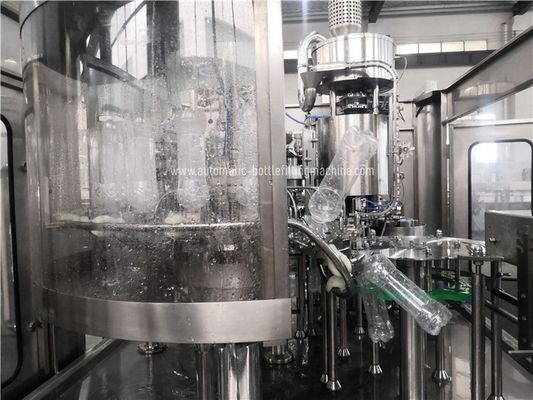

Washing part

Rotary type bottle washing machine, mainly used to wash bottles for drinking water and other beverage. New bottles go into the machine through air conveyor. Bottles are held by grips and turned over onto washing heads. After washing and drain water, bottles go into filling parts by star wheel. Main structure, protect shell and contact water part of washing part are all stainless steel.

Rotary Carbonated  SUS304 Soda Bottle Filling Machine Low Noise 0

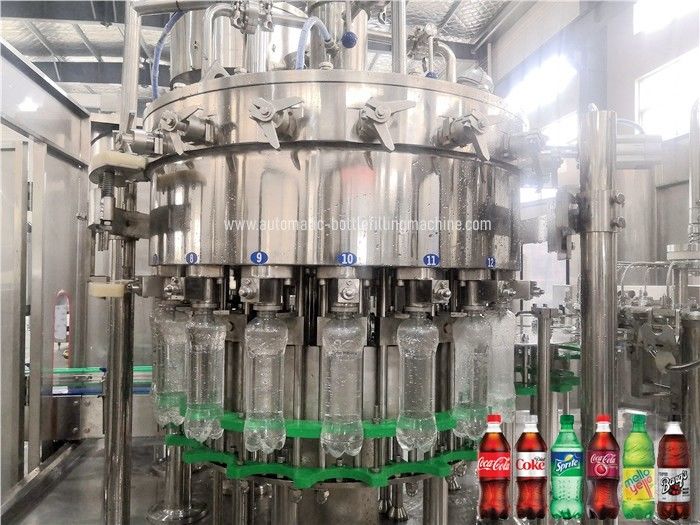

Filling part
Filling machine adopt German technology, produce by gravity filling and obey to normal pressure filling principle.Main drives adopt mechanical freestanding gear, high efficiency, low noise, long service life, easy to maintain, lubricate well. Frequency converter controls the main motor and makes the machine speed changeable.

Rotary Carbonated  SUS304 Soda Bottle Filling Machine Low Noise 1

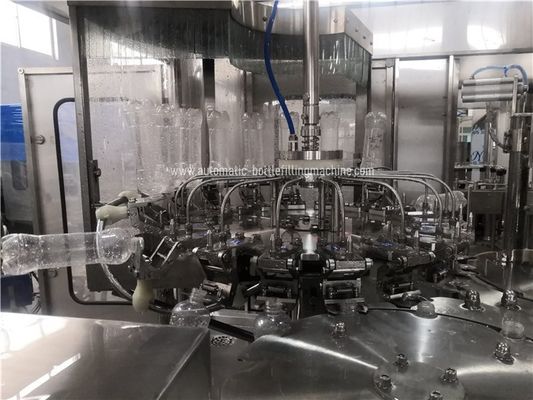

Capping part
Capping machine drives revolved plate by gear. Cap goes out of cap storage by centrifugal effect. At the cap output, there is cap divider. Reverse cap drops into pipes then return to cap storage by air conveyor. Right cap goes into conveyor. The quantity inspected by sensor, capping machine control the cap conveyor. The machine will stop when no caps.
Rotary Carbonated  SUS304 Soda Bottle Filling Machine Low Noise 2
There are different capacities:
Model
Capacity
Power
Size
DCGF16-12-6
2500BPH
1.8KW
2200×1800 × 2000
DCGF 18-18-6
4000BPH
2.6KW
2500 × 1800 × 230
DCGF 24-24-8
6500BPH
3.8KW
2800 × 2100 × 2300
DCGF 32-32-1010
000BPH
4.2KW
3500 × 2200 × 2300
DCGF 40-40-12
16000BPH
7KW
4760 × 2080 × 2300
DCGF 50-50-15
20000BPG
9KW
5150 × 3820 × 2700
DCGF 60-60-15
24000BPH
13KW
5300 × 3950 × 2700

We can provide complete line plants:

Rotary Carbonated  SUS304 Soda Bottle Filling Machine Low Noise 3







THE AFTER-SALE SERVICE OF KING MACHINE!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
