Product Details:
Payment & Shipping Terms:
|
| Control System: | PLC+touch Screen | Atumatic Grade: | Fully-automatic |
|---|---|---|---|
| Power: | 7.57kw | Bottle Type: | Glass Bottle |
| Cap Type: | Aluminum Screw Cap | Weight: | 5500kg |
| Dimension(L*W*H): | 3250*2180*2200mm | Filling Pressure: | Equal Pressure |
| High Light: | 6000BPH glass bottle soda filling machine,SGS glass bottle soda filling machine,6000BPH juice glass packing machine |
||
Qucik information:
| Name | carbonated drink filling machine, soda filling machine,energy drink filling machine,Sparkling Water bottling machine,Soft drink bottling equipment,carbonated water bottling plant |
| Capacity | 6000BPH/500ml |
| Function | washing ,washing, filling ,aluminum screw capping. |
Application:
Bottled cola production
Soft drinks production
carbonated drinks production
Sparkling/soda waters production
Beer production
Technical parameter
| Model | DGCF24-24-24-8 |
| Production capacity(500ml)(b/h) | 6000-8000 |
| Filling precision | ≤±5MM(Liquid Level) |
| Polyester bottle standard(mm) | Bottle diameter40-80; |
| Height | Height:130-280 |
| Suitable cap shape | Aluminum Screw Cap |
| Water pressure of Washing bottle(MPa) | 0.18 |
| Water consumption for Water bottle (kg/h) | 800 |
| Spraying position | 6 |
| Dripping bottle position | 3.5 |
| Gas source pressure(Mpa) | balanced pressure |
| Gas consumption(m3/mm) | 0.4 |
| Total power | 7.57 |
| Total weight | 5500 |
| Dimension(L*W*H) | 3250*2180*2200mm |
Description:

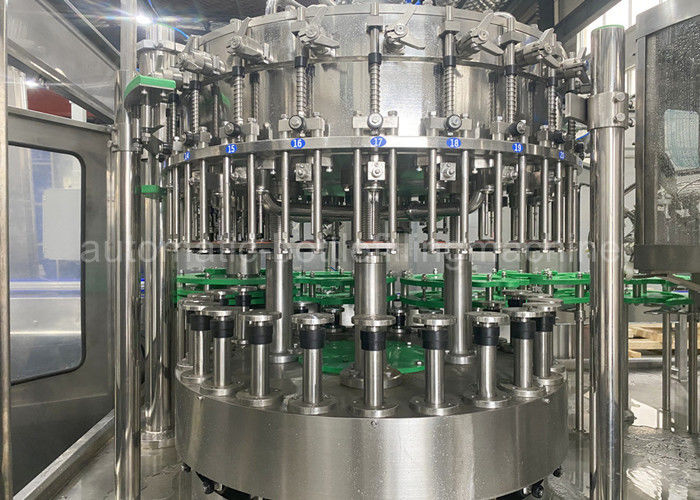

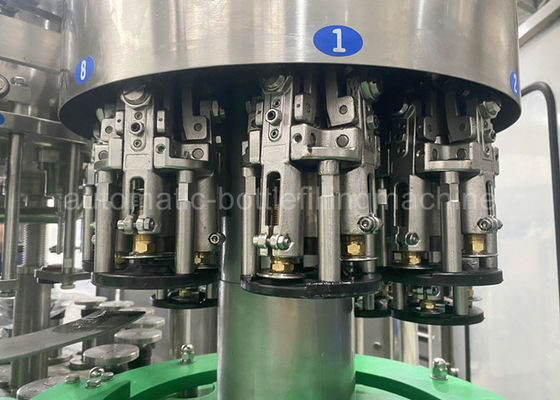

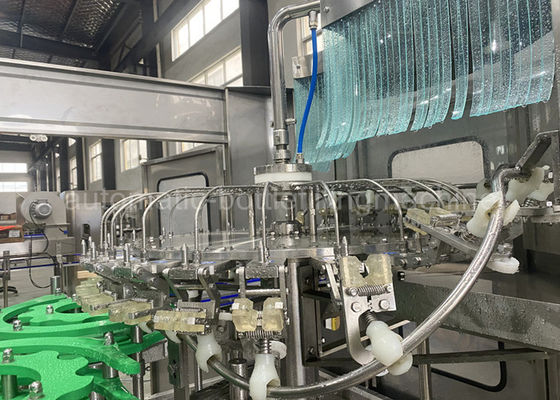

Glass bottle soda bottling machine is suitable for cocktails, carbonated water, soda water with gas and other kinds of volume and shape of plastic bottle filling. Three processes of bottle washing, filling and capping can be completed in one unit of DGCF filling equipment. The bottle has little wear, accurate and stable transmission and convenient bottle type replacement. The specially designed bottle clamp is strong and durable, it does not touch the screw part of the bottle mouth to avoid the secondary pollution of the bottle mouth. The parts in contact with the liquid are made of high quality stainless steel or food-grade engineering plastics, which conform to the national food hygiene standards. The bottom plate of the rotary bottle adopts spiral descending mode, and the height of the conveying chain does not need to be adjusted when changing the bottle type.
