| Capacity: | 2000BPH(500ml) | Weight: | 2000kg |
|---|---|---|---|
| Power: | 4.23kw | Filling Liquid: | Juice,water |
| Function: | Bottle Washing Filling Capping | Dimension: | 2100*1500*2200mm |
| High Light: | 4.23kw juice bottle packing machine,SGS Juice Bottle Filling Machine,4.23kw Juice Bottle Filling Machine |
||

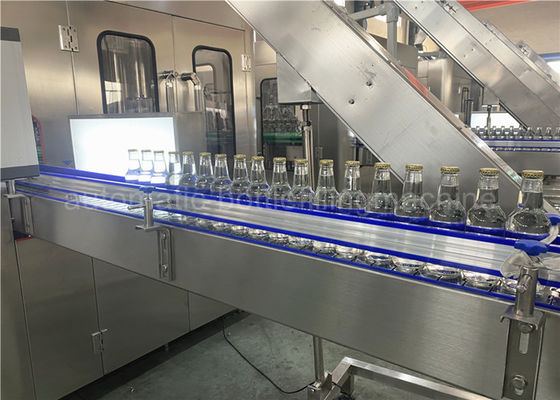

Description
The machine for bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to filling processing demands of carbonated drinks and soda water to be one of the advanced filling production lines.
Water Filling Machine is used in producion of minerals and pure water packed in polyester bottles.Washing ,filling and capping are integrated in one machine.
The gravity fixed liquid surface filling is used .The filling is fast ,the amout of liquid is accurately controlled and the dropping and leakage are avoided.Spring cramps are used in the bottle washing process.
Technical parameters
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| Production capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000(0.5L) |
| Filling precision | ≤±5MM(Liquid Level) | |||
| Polyester bottle standard(mm) | Bottle diameter40-80; | |||
| Height | Height:130-280 | (Height):150-320 | ||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of Washing bottle(MPa) | 0.18 | |||
| Water consumption for Water bottle (kg/h) | 800 | 1600 | 2500 | 3500 |
| Spraying position | 5 | 5 | 6 | 12 |
| Dripping bottle position | 3 | 3 | 3.5 | 7 |
| Gas source pressure(Mpa) | normal pressure | |||
| Gas consumption(m3/mm) | 0.3 | 0.3 | 0.4 | 0.5 |
| Total power | 4.23 | 5.03 | 6.57 | 8.63 |
| Total weight | 2000 | 3500 | 5500 | 8000 |
| Dimension(L*W*H)mm | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 |
3500×2200×2250 |
1. Rinser
1) The rotary wheel is a fully SS304 stainless steel welded structure.
2) This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber
gripper block of a traditional bottle clamp. Made of SS304 stainless steel, this bottle clamp is hygienic and
durable.
3) The rinse is driven by driving system positioned inside machine frame via gear transmission.

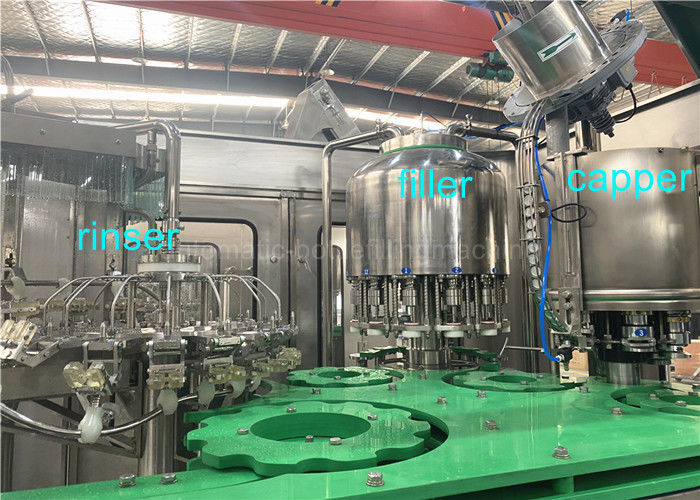

2. Filler
1) The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss.
2) Rotary wheel are fully made of stainless steel SS304.
3) Filling valves are designed and manufactured with German technology, featuring high filling accuracy and high filling speed.
4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.
5) Hydraulic pump is float-ball controlled.

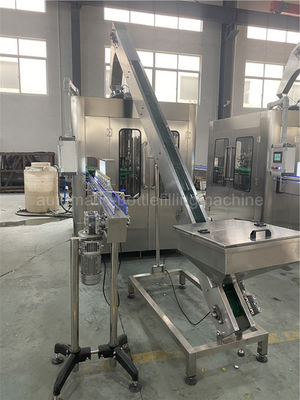

3. Capper
1) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover.
Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by
which it can avoid bottle without cover effectively.
2) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift,
they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.
3) Highly effective acentric way for cap sorting to reduce the abrasion.
4) It has the check-up device to control the cover lift.
