Reposeful 250ml Beverage Can Filling Machine With Liquid Level Control

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

Reposeful 250ml Beverage Can Filling Machine With Liquid Level Control

Reposeful 250ml Beverage Can Filling Machine With Liquid Level Control
Reposeful 250ml Beverage Can Filling Machine With Liquid Level Control

Large Image :  Reposeful 250ml Beverage Can Filling Machine With Liquid Level Control

Product Details:
Place of Origin: CHINA
Brand Name: JIAYUAN
Certification: CE ISO
Model Number: GD12-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: please inquire
Packaging Details: standard wooden case
Delivery Time: 40 working days
Supply Ability: 300 sets per year
Detailed Product Description
Product Name: Canning Machine Finished Produce: Juice, Water, Flavor Drink
Filling Heads: 12 Sealing Heads: 4
Capacity: 4000-6000 Can/hr Control: PLC+CONVERTER
High Light:

250ml Beverage Can Filling Machine

,

250ml can filling equipment

,

reposeful Beverage can filling equipment

Best Quality 250ml Cans Juice Beverage Production Line Filling Sealing Machine



This canning machine combines filler and seamer in one unit, can fill all kinds of juice, flavor drink and water. It has 12 filling nozzles and 4 seaming heads, capacity is about 4000-6000 cans/hr.







1.Filling and sealing is the overall designed, power system by filling sealing system to Ensure that both the absolute synchronization and coordination.
2. It adopts the advanced machine, electrical equipment, and Pneumatic control technology

3. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss.
4. It can equip long-distance control system according to the Customers request.
5. It is the preferred equipment for the medium beer and beverage plant.





parameter

Model
GD12-4
GD18-4
GD24-6
GD32-6
Capacity
4000-6000bph
6000-9000bph
9000-12000bph
12000-16000bph
Filling Heads
12
18
24
32
Capping Heads
1
4
6
8
Power
3.5KW
4KW
4.5KW
5KW
Dimension
2400x1600x2000MM
2600X1870X2200MM
2800X2400X2500MM
3300X3000X2700MM
Weight
2800KG
3200KG
4000KG
5000KG





Why choose JINYATE?
1.Experience
JINYATE Since 2002. We are professional in water&beverage solutions over 16 years.Modern factory of 6000 square meters.over 60 countries' customers are using JINYATE machines.

2.Quality control

JINYATE machines all parts adopts CNC (computer numerical control machine tools) for processing.Precision was improved greatly.

3. Reasonable Price
JINYATE machines are highest cost performance. Our machines and good service worth your cost.

4. Warranty
JINYATE provide 12 months long warranty and lifelong technical support, free parts and effective service in a timely manner. After the warranty, lifelong provide widely favorable technical support and after-sales service.

5. Turn-Key Project
JINYATE's Turn-key Project including pre-sale and after-sale service, can provide the whole production line, factory design, design bottle, provide a layout diagram, provide auxiliary materials supply agent information, machine installation and debugging, staff training and so on.

6. After-sale service
JINYATE will send engineers to customers factory. Offer installation, debug and technology training to customers.After sales hotline: 0086 18306249355 .

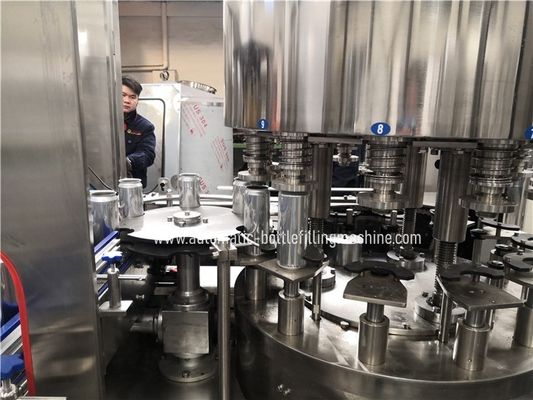

Filler

Reposeful 250ml Beverage Can Filling Machine With Liquid Level Control 0



seamer

Reposeful 250ml Beverage Can Filling Machine With Liquid Level Control 1

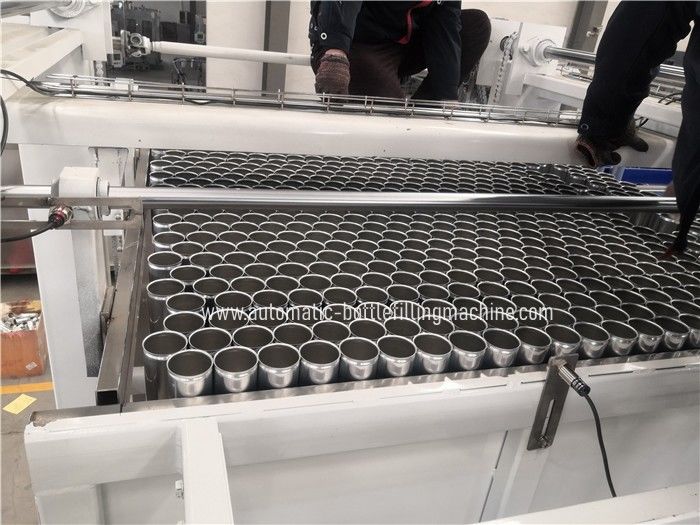

final product

Reposeful 250ml Beverage Can Filling Machine With Liquid Level Control 2
