330ml Juice Beverage Can Filling Machine Automatic Can Filler Seamer Line

330ml  Juice Beverage Can Filling Machine  Automatic Can Filler Seamer Line
330ml  Juice Beverage Can Filling Machine  Automatic Can Filler Seamer Line

Large Image :  330ml Juice Beverage Can Filling Machine Automatic Can Filler Seamer Line

Product Details:
Place of Origin: CHINA
Brand Name: JIAYUAN
Certification: CE ISO
Model Number: GD12-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: please inquire
Packaging Details: standard wooden case
Delivery Time: 40 working days
Supply Ability: 300 sets per year
Detailed Product Description
Product Name: Canning Machine Finished Produce: Juice, Water, Flavor Drink
Filling Heads: 12 Sealing Heads: 4
Capacity: 4000-6000 Can/hr Control: PLC+CONVERTER
High Light:

330ml 4 nozzle juice packing machine

,

330ml Beverage Can Filling Machine

,

0.2mpa Beverage Can Filling Machine4 nozzle juice packing machine

Beverage Can Filling Machine, Juice, Water, Flavor Drink Canning Production Line

This combination machine is suitable for the filling and sealing of juice, flavor drink and other still beverage.This combination machine is filled with single room pressure filling valve, which can not be used in the filling process.The seal is a double winding edge spinning and frequency control control.Are characterized by their smooth filling, large flow, speed, filling quantity allowed, no tank filling, dripping, cylinder depth of the liquid level automatic control, material cylinder can be automatic cleaning disinfection,the characteristics of the production speed is adjustable, suitable for filling and sealing all kinds of cans.





parameter

Model
DYGF12-4
DYGF18-4
DYGF24-4
Amoust of working position
filling 12, sealing 2
filling 18, sealing 4
filling 24, sealing 4
Production Speed
4000-6000bottles per hour(330ml)
6000-9000 bottles per hour(330ml)
10000-12000 bottles per hour(330ml)
Pressure of rinse water
0.06~0.2Mpa
0.06~0.2Mpa
0.06~0.2Mpa
Main motor power
2.87kw
3.12kw
3.92kw
Dimension(L*W*H)mm
2700*2320*2700(L*W*H)
2800*260*2700(L*W*H)
2950*260*2700(L*W*H)
Weight
3500kg
4750kg
6000kg

This line includes depallitizer, rinser, filler, sealer and packing machine.

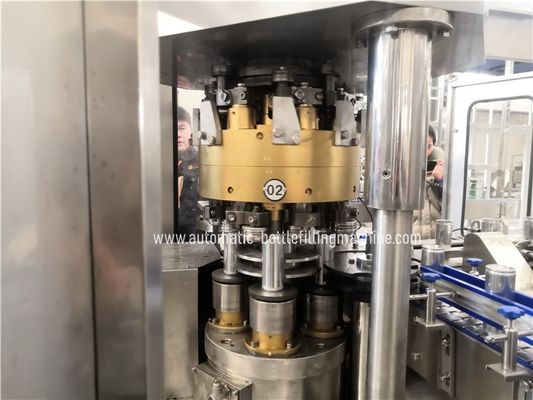

depallitizer

330ml  Juice Beverage Can Filling Machine  Automatic Can Filler Seamer Line 0

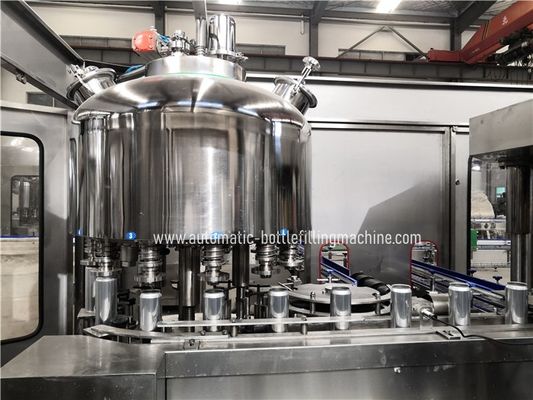

filler sealer

330ml  Juice Beverage Can Filling Machine  Automatic Can Filler Seamer Line 1

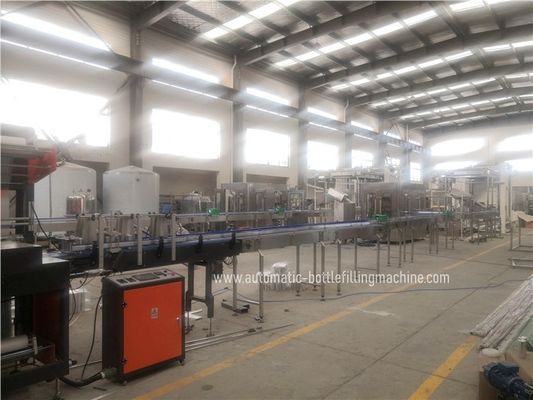

shrink packing

330ml  Juice Beverage Can Filling Machine  Automatic Can Filler Seamer Line 2

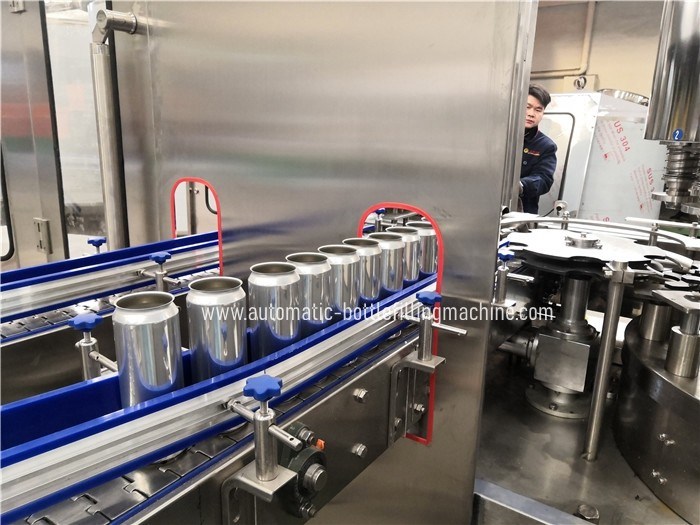

final product

330ml  Juice Beverage Can Filling Machine  Automatic Can Filler Seamer Line 3



FAQ

1. A: Are you factory?How many workers do you have?

B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.

2. A: What about after sale service?
B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.

3. A: What about installation?
B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.

4. A: What do we do if we encounter problem about the machine ?
B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).

5. A: How can you control the quality and delivery?
B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.

With many mature manufacturing experience, we can offer the complete production lines and equipment for A to Z complete solution, looking forward to your contact
