Zhangjiagang Jinyate Machinery Co., Ltd
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Bottle Type: | Glass Bottle | Bottle Volume: | 200ml-2L(adjustable) |
|---|---|---|---|
| Overall Dimension(L*W*H): | 2000*1800*2200mm | Capacity: | 6000BPH(500ml) |
| Warranty: | One Year | Filling Temperature: | Room Temperature |
| Control System: | PLC Control+touch Screen | Automatic Grade: | Fully-automatic |
| High Light: | 6000BPH Automatic Milk Filling Machine,SGS Automatic Milk Filling Machine,6000BPH milk bottle filling machine |
||

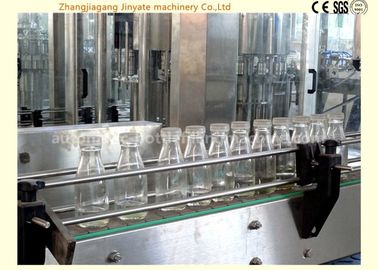

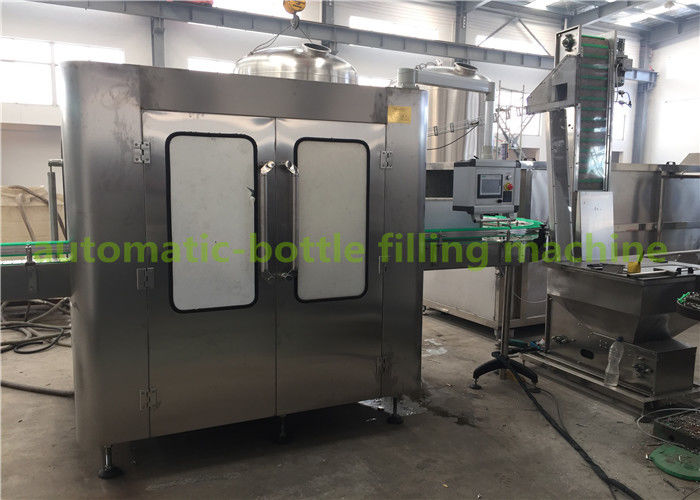

Automatic Glass Bottle UHT Milk Filling And Capping Machine For
Our full automatic Milk filling machine is very efficient with high cost performance. It is widely used in medicine, daily chemical and other industries such as essential oils, perfumes, juice liquid etc. Machine with magnetic pump is good choice for low viscous corr, a little foamy liquid. 316 stainless steel pump can use for very high temperature liquid fill.
Technique parameter
| Model | RGF18-6 |
| Productivity | 6000BPH |
| Filling Head | 18 |
| Capping Head | 6 |
| Bottle Volume | 350ml~2000ml±10ml |
| Bottle Diameter | φ50-92mm |
| Bottle Height | 150-310 mm |
| Filling Tolerance | ±2% |
| Cap Size | 28mm and 30mm PE Standard Caps |
| Air Pressure | 0.6MPa |
| Air Consumption | 500 L/min |
| Filling Water Consumption | 3 m3/h |
| Rinsing Water Consumption | 1 m3/h |
| Motor Power | 6.68kW |
| Voltage | 380V |
| Dimension | (L×W×H) 2450*1800*2200mm |
| Weight | 3000kg |
| Filling Principle | Gravity Filling |
Customized service
1. We can design the machines according your requirements (materil ,power,filling type,bottles, and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We offer free technical support and consultation,such as draw the factory layout for you, alalyze the source water report and so on.
After-sales service
1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.
2. When you finish the Preparation conditions ,our fast and professional after service engineer teamwill go to your factory to install the machine,give you the operating manual ,and train your employee until they can operate the machine well.
3. We provide one year warranty with spare parts free.
4. We ask the feedback from our customer and offer some help when the machine have been used for some time.
