| Name: | Mineral Water Bottle Filling Machine | Control System: | PLC+touch Screen |
|---|---|---|---|
| Function: | Washing Filling Capping | Power: | 8.63kw |
| Bottle Type: | 200-2000ml | Voltage: | 380V/50Hz |
| Weight: | 6000kg | Dimension(L*W*H): | 3500*2200*2500mm |
| High Light: | automatic bottling machine,liquid bottle filling machine |
||

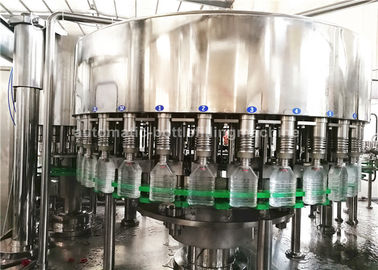

The strong point of this 3 in 1 water bottle filling machine is the capping part,it is suction cap,it can meet customer's specifia requirement.

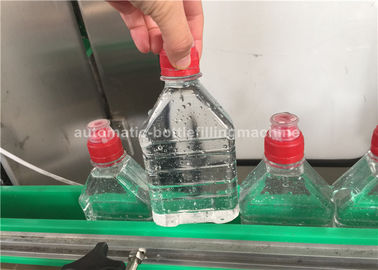

Flat square bottle with suction cap
Technical parameter
| Model | CGF32-32-10 |
| Production capacity(500ml)(b/h) | 12000-15000 |
| Filling precision | ≤±5MM(Liquid Level) |
| Polyester bottle standard(mm) | Bottle diameter40-80; |
| Height | Height:130-280 |
| Suitable cap shape | Plastic Screw Cap |
| Water pressure of Washing bottle(MPa) | 0.18 |
| Water consumption for Water bottle (kg/h) | 800 |
| Spraying position | 12 |
| Dripping bottle position | 7 |
| Gas source pressure(Mpa) | normal pressure |
| Gas consumption(m3/mm) | 0.4 |
| Total power | 8.63kw |
| Total weight | 6000kg |
| Dimension(L*W*H) | 3500*2200*2500mm |

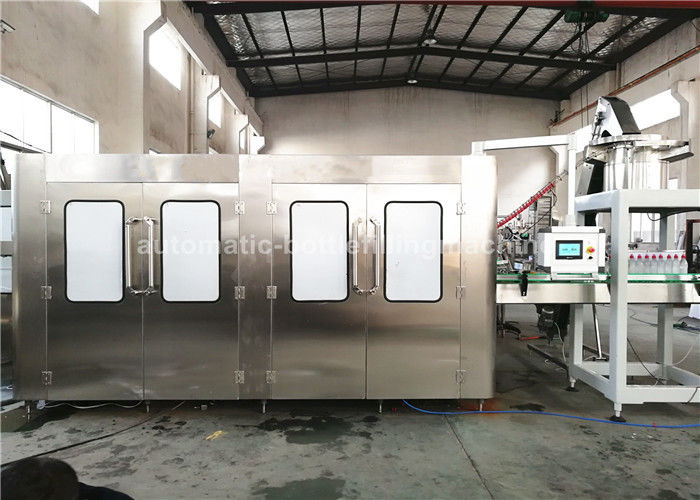

Cap elevator
Feature:
1. The pure water filling machine adpots advanced human-machine interface control. High quality international name brand key component
2. Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine
3. Spring type rinsing catcher can wash both inside and outside of the bottle
4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling
5. Magnetic powered cap device ensures tightness and prevents damage of the caps
6. Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
7. Built-in safeguard mechanism ensures the safety of operator and machine.
8. High efficient air clean filter system ensures high sanitary requirements
9. Low overall machine noise
10. Self-lubricating system imported from America provides continuous smooth operation.
We can also provide you with the complete water filling production line:
1. Water treatment system: Raw water pump,Quartz sand filter,Active carbona filter,Sodium ion filter,Precious filter,Reverse osmosis,Ozone generator/UV sterilizer,Water storage tank,Water pump.
2. Water bottle washing filling capping 3 in1 monoblock machine
3. End-of-line packing system: Bottle dryer,Inkjet code printer,Labeling machine,PE film packing machine
