3 In 1 Glass Bottle Filling Machine With Touch Screen PLC Controller

3 In 1 Glass Bottle Filling Machine With Touch Screen PLC Controller
3 In 1 Glass Bottle Filling Machine With Touch Screen PLC Controller 3 In 1 Glass Bottle Filling Machine With Touch Screen PLC Controller

Large Image :  3 In 1 Glass Bottle Filling Machine With Touch Screen PLC Controller

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE
Model Number: BDCGF18-18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: pleaes inquire
Packaging Details: standard export package
Delivery Time: 45 working days
Supply Ability: 100 sets a year
Detailed Product Description
Name: Glass Bottle Filling Machine Function: 3 In 1 Washing Filling Capping
Washing Filling Capping Heads: 18-18-6 Controller: Touch Screen PLC Controller
Glass Bottle Diameter: Φ50-108mm Filling Precision: ±2-3%
High Light:

glass bottling equipment

,

water glass filling machine

3 In 1 Glass Bottle Filling Machine With Touch Screen PLC Controller



Bottle Filling Machine Application


The Bottle Filling Machine is ideal for filling Glass bottles, we customize machine for different size and shape of bottles.both glass and plastic are OK.It is widely used in Food (olive oil, honey etc.) Beverage( juice, E juice). Cosmetics (essential oil,perfume, nail polish etc) chemical (glass adhesive, sealant, white latex, etc.) industries etc



Bottle Filling Machine Profile



  • This product is composed of separate bottle punching machine, filling machine and capping machine. It can be produced by a single machine and connected to the whole production line.
  • Suitable for glass bottled gas-containing beverage production, such as beer, carbonated beverage, soda water, etc.
  • capacity 500-2000 (500 ml) bottles per hour;
  • Adopt isobaric filling, high filling accuracy, no boiling;
  • In the case of replacing bottle fittings, the flushing, filling and sealing can be applied to bottles of various sizes.
  • All stainless steel 304 materials are used.

Bottle Filling Machine Technical parameter



Name 3 In 1 Glass Bottle Filling Machine With Touch Screen PLC Controller
Washing filling capping heads 18-18-6
Capacity Large Capacity
Filling material carbonated soft drink, soda water, energy drink, water and other gas beverage
Glass bottle volume 0.3L-2L
Glass bottle diameter Φ50-108mm
Glass bottle height 170-320mm
Suitable lid Crown lid, aluminum rotary lid, ring lid, twist-off lid
Filling precision ±2-3%
Filling method Isobaric filling

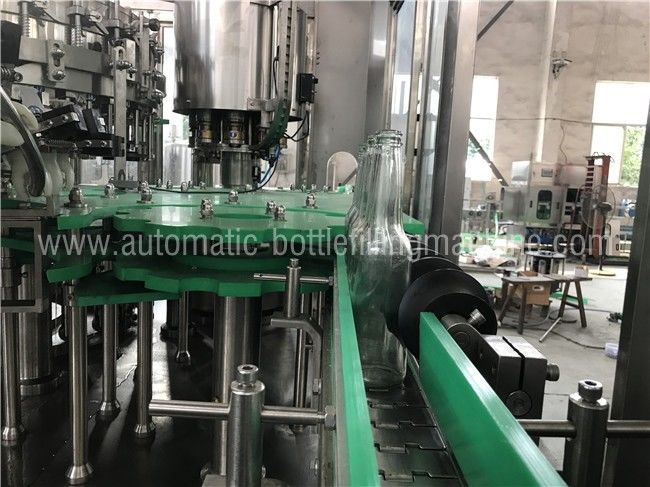

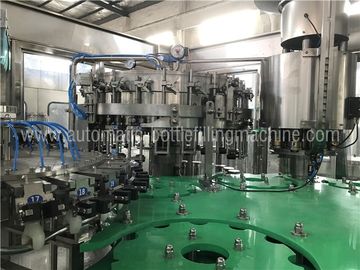

Bottle Filling Machine picture



3 In 1 Glass Bottle Filling Machine With Touch Screen PLC Controller 0



About US



Zhangjiagang Jinyate machinery Co., Ltd is located Leyu Town, Zhangjiagang City , Jiangsu Province,We devote ourselves to the development, research and production of beverage filling and packing industry.

Our main products include: Mineral water,purified water,drinking water filling production line;Juice,tea hot filling production line;Carbonated beverage filling production line. 3 gallons& 5gallons filling production line;beverage can filling production line.We also provide various auxiliary equipment of production line. We can help you to design the product line, workshop and provide turn-key project.



Our products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.



After-sales service



1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty with spare parts free.
