| Automatic Grade: | Fully-automatic | Capacity: | 300BPH |
|---|---|---|---|
| Bottle Volume: | 3-5gallon | Weight: | 1200kg |
| Bottle Type: | Plastic Barrel | Machine Material: | Stainless Steel 304 |
| Dimension(L*W*H): | 3800*1300*1600mm | Processing Type: | Water |
| High Light: | 20 ltr water jar filling machine,fully automatic filling machine |
||
QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.
You can click this below picture to see the video of this machine:
https://youtu.be/fFrnRsd0lNw
Technical parameter
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Filling heads | 1 | 2 | 3 | 4 | 6 |
| Volume | 3-5gallon | ||||
| Barrel size | 270*490 | ||||
| Capacity | 150 | 300 | 450 | 600 | 900 |
| Gas pressure | 0.4 -0.6 | ||||
| Gas consumption | 0.37 | 0.6 | 0.8 | 1 | 1.2 |
| Motor power | 1.75 | 3.8 | 3.8 | 7.5 | 9 |
| Motor voltage | 380V/50HZ | ||||
| Weight | 700 | 1200 | 1600 | 2000 | 3500 |
| Dimension | 2800*1100*1600 | 3800*1300*1600 | 4200*1600*1600 | 4800*1800*1600 |
4200*2300*1600 2800*1000*1600 |
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
2 heads filling part
1. Uploading and dropping barrels changed from 45 degree to translatory which is more stable.

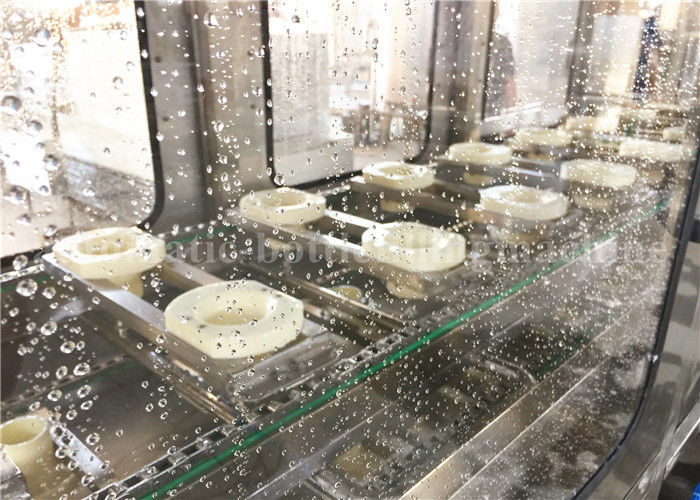

2. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
1.The 5 Gallon Filling Machineis composed of barrel washer, barrel filling machine and barrel sealer into one unit.
2. Especially for filling drinking water of 3 and 5 gallons. It is an idea filling line to produce mineral water, distilled water and purified water.
3. The whole line is made of superior stainless steel, anticorrosive and easy to clean.
4. Only two operators are needed for a line, which is wholly automatic barreled
5. Full-auto or semi-auto barrel de-capper, full-auto leakage inspection, full-auto barrel outside brusher, full-auto barrel loading machine, steam shrinking film machine and coding system can be choose depends on what customer's need.
