4000BPH Sparkling Water / Coke Cola Filling Machine Carbonated Beverage Glass Bottle Filler

China 4000BPH Sparkling Water / Coke Cola Filling Machine Carbonated Beverage Glass Bottle Filler supplier
4000BPH Sparkling Water / Coke Cola Filling Machine Carbonated Beverage Glass Bottle Filler supplier 4000BPH Sparkling Water / Coke Cola Filling Machine Carbonated Beverage Glass Bottle Filler supplier 4000BPH Sparkling Water / Coke Cola Filling Machine Carbonated Beverage Glass Bottle Filler supplier 4000BPH Sparkling Water / Coke Cola Filling Machine Carbonated Beverage Glass Bottle Filler supplier 4000BPH Sparkling Water / Coke Cola Filling Machine Carbonated Beverage Glass Bottle Filler supplier

Large Image :  4000BPH Sparkling Water / Coke Cola Filling Machine Carbonated Beverage Glass Bottle Filler

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Driven Type: Electric Function: Glass Bottle Washing Filling Capping
Cap Type: Crown Cap Filling Pressure: Balanced Pressure
Capacity: 4000bottles Per Hour Power: 5.03KW
Dimension(L*W*H): 2450*1800*2200mm Material: Stainless Steel 304

4000BPH Sparkling Water / Coke Cola Filling Machine High Quality Carbonated Beverage Glass Bottle Filler



Video show:

Click the below picture,you can see the video of this machine



Bottle Washing part

4000BPH Sparkling Water / Coke Cola Filling Machine Carbonated Beverage Glass Bottle Filler

video link:   https://www.youtube.com/watch?v=GPTohJGTaE4&feature=share

--Carbonated drink washer is scientific and resonable.

--Carbonated drink washer appearance is beautiful and the function is complete. The operation and maintenance is convenient.

--Carbonated drink washer will be stopped automaticlly when no bottle and bottles cramped wrongly.

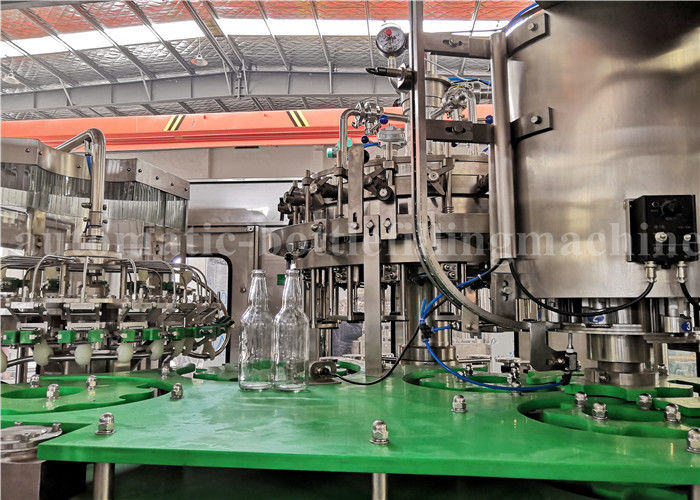

Bottle Filling part

4000BPH Sparkling Water / Coke Cola Filling Machine Carbonated Beverage Glass Bottle Filler

--With 18 heads bottle filling heads

--The soft drink filler adopts advanced technology and NanJing valves, with high filling precision.

--High filling speed and automatically control of filling liquid

--With rotary bearings for better protection of whole machine

--With a ring liquid tank to guarantee the filling effect

--Damped gears are used for bottle conveying, the noise is low and the whole machine runs smoothly.

--Soft drink filler is combined type with two parts, which can be easy broken and easy to remove and shipping.



Bottle Capping part

4000BPH Sparkling Water / Coke Cola Filling Machine Carbonated Beverage Glass Bottle Filler

--With 6 capping heads

--For Crown cap

--With auto cap lifer, cap sorter, cap loader, cap capper

--The power of screw capping can be adjusted without steps.The power of the screw capping can also be fixed.The capps can not be damaged,the capping is reliable.

--Horizon swirl air power caps sorting device is used to avoid damagining the surface of caps,and when there is a shortage of caps in the caps storage tank, an alarm signal will be generated and the caps will be fed automatically.



Technique parameter:

Model: DCGF18-18-6 DCGF24-24-8 DCGF32-32-12 DCGF40-40-12
Capacity :500ml 3000 8000 12000 16000
Bottle shape: roud or square
PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Cap: PE srew cap
Filling precision: ≤±5mm
Filling pressure:(Mpa) 0.15-0.35 0.15-0.35 0.15-0.35 0.15-0.35
Rinsing pressure:(Mpa) 0.2-0.25 0.2-0.25 0.2-0.25 0.2-0.25
Filling volume :(L) 3.5 4 6 8
Overall size:(mm) 2450*1800*2200 2780*2200*2350 3600*2650*2350 3800*2950*2400
Weight: (kg) 3000 4000 5000 6000



We are one of 100% professional famous manufacturer for every kind of beverage producing, filling, packing machines.

We can make the machine with different capacity, bottle and cap according your need.

Welcome your inquiry to us, thank you very much!





Features:

1. Multiple Usage: The filler provide a comprehensive range of different bottle sizes (height 150-320mm, Dia. 50-100mm)

2. Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.

3. Advanced construction features: The filler carousel is mounted on a huge heavy duty combined bearing, which guarantees optimum smooth running of the filling bowl. The centering bell assemblies precisely locate the necks of bottles onto filling valves. The design of suspended and cantilevered bottle lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding surface of cylinders.

4. High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.

5. Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler.

6. Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.
