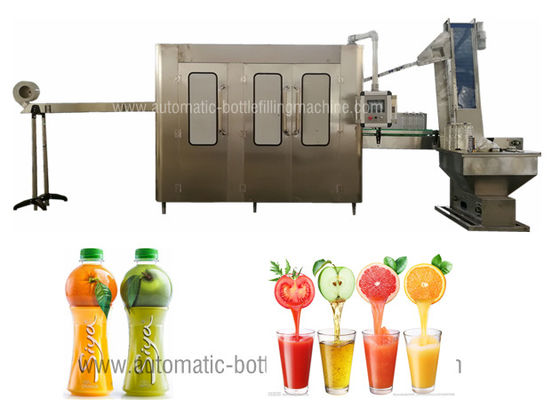

SGS Juice Bottling Machine , Turkey Pet Bottling Line For 4000BPH Capcity

SGS Juice Bottling Machine , Turkey Pet Bottling Line For 4000BPH Capcity
SGS Juice Bottling Machine , Turkey Pet Bottling Line For 4000BPH Capcity SGS Juice Bottling Machine , Turkey Pet Bottling Line For 4000BPH Capcity SGS Juice Bottling Machine , Turkey Pet Bottling Line For 4000BPH Capcity SGS Juice Bottling Machine , Turkey Pet Bottling Line For 4000BPH Capcity

Large Image :  SGS Juice Bottling Machine , Turkey Pet Bottling Line For 4000BPH Capcity

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE SGS
Model Number: RCGF16-12-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: per year
Payment Terms: T/T, L/C
Supply Ability: 100 sets
Detailed Product Description
Product Name: Juice Filling Machine Function: Rinsing Filling Capping
Filling Material: Juice, Dairy Drink, Vinegar, Sauce Capcity: 4000BPH
Bottle Volume: 250-2000ml Control: PLC+Touch Screen
High Light:

fruit juice production line

,

small scale juice bottling equipment

SGS Juice Bottling Machine , Turkey Pet Bottling Line For 4000BPH Capcity

Characteristics
1.The machine is used to pack various juice, tea drink, dairy drink, alcoholic drink, vinegar, bean sauce, water and other non-carbonated liquid.
●Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape is not changed because of adopting hanging clamping bottleneck way.
●Adopting clamping bottleneck way to wash bottle mouth and avoiding touch screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter.
●Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
●The capping system applies advanced French technology, when clamp the cap will screw immediately and magnetic torque type capping head.
●Main PLC and frequency changer are used famous brand, such as Mitsubishi and Siemens etc.

Technical parameter

Model
RCGF14125
RCGF18186
RCGF24248
RCGF323210
RCGF404012
RCGF505012
Washing/Filling/Caping heads
16-12-6
18-18-6
24-24-8
32-32-10
40-40-12
50-50-12
Capacity BPH
(500ML)
3000-4000
5000-6000
8000-12000
12000-15000
15000-18000
18000-22000
Power (KW)
6
6
7
9
13
16
Weight (KG)
2800
3800
5000
6000
8000
10000
Shape--mm
(L×W×H)
2250×1600
×2300



2300×1700
×2300
2900×1900
×2300
4300×3500
×2300
4300×3900
×2300
4600×4300
×2300
Suitable for bottle type: Φ50-Φ100mm, height: 150mm-330mm


Pictures show

SGS Juice Bottling Machine , Turkey Pet Bottling Line For 4000BPH Capcity 0

Washing Part

It adopts rotary design, which mainly used for washing empty bottles of juice and water etc. Then transfer the clean bottles into filling part.
PET bottles entrance to equipments by star wheel, the bottles clamped and reversed to make the bottle down. Washing with sterilizing water and drain well, then turn over the bottle up automatically. Main structure and washing part are made by stainless steel, simple structure and easy adjustable; Less contact with bottleneck, which can avoid secondary pollution effectively.


Filling Part

This Filling Machine is design by JINYATE, Filling valve adopts negative filling way, filling fast and sensitive; the precision of filling liquid surface is high; There is no spring in valve, materials don’t contact with the spring directly, which is good for cleaning valve. To make sure the filling process and filling temperature, when there is no bottle or closed down, the materials in valve is under micro back flow condition. Whole machine are controlled by PLC automatically.


Capping Part

This capping part uses magnetic torque type capping heads, automatic grasping cover, screw cap, immutability torque capping function.

SGS Juice Bottling Machine , Turkey Pet Bottling Line For 4000BPH Capcity 1


SGS Juice Bottling Machine , Turkey Pet Bottling Line For 4000BPH Capcity 2

As a manufacturer, We can supply complete line plants, capacity ranges from 2000 bottles per hour to 30000BPH, welcome to contact... ...
