High Speed Automatic Bottle Filling Machine Fizzy Drink , Sparkling Water Packaging

China High Speed Automatic Bottle Filling Machine Fizzy Drink , Sparkling Water Packaging supplier
High Speed Automatic Bottle Filling Machine Fizzy Drink , Sparkling Water Packaging supplier High Speed Automatic Bottle Filling Machine Fizzy Drink , Sparkling Water Packaging supplier High Speed Automatic Bottle Filling Machine Fizzy Drink , Sparkling Water Packaging supplier High Speed Automatic Bottle Filling Machine Fizzy Drink , Sparkling Water Packaging supplier

Large Image :  High Speed Automatic Bottle Filling Machine Fizzy Drink , Sparkling Water Packaging

Product Details:

Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE SGS
Model Number: DCGF60-60-15

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: 60 working days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Carbonated Soft Drink Bottling Machine Function: Filling Capping Labeling
Filling Matereial: Carbonated Soft Drink, Soda Water, Sparkling Water Suitable Bottle: PET 250-2000ML
Capacity: 24000BPH Material: Stainless Steel SUS304



High Speed Automatic Bottle Filling Machine Fizzy Drink , Sparkling Water Packaging

Product Application

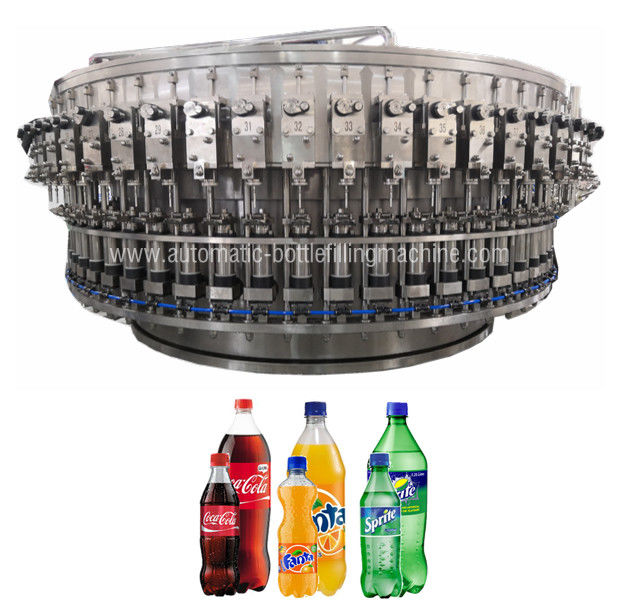

Carbonated soft drink filling machine is used for PET bottles ,and carbonated beverage of special equipment, unique clamping bottle filling technology, frequency control, automatic tank level control, equal pressure filling , etc. It adopts constant pressure into the fluid, and match the mixer perfectly, to avoid boiling, material inequality of production problems, contact with the material part of the materials are stainless steel 304,316. Pipe system control components are imported auxiliary equipment.
1.Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle.
2.The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method.
3.For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.
4.High automation and easy operation make it an ideal option for beverage companies.



specification



Model
(DCGF)
16/12/6
18/18/6
24/24/8
32/32/10
40/40/10
50/50/12
60/60/15
Rinsing heads
16
18
24
32
40
50
60
Filling heads
12
18
24
32
40
50
60
Capping heads
6
6
8
10
10
12
15
Capacity
(BPH)
2000
5000
7000
9000
14000
18000
24000
Power(kw)
2.2
3.5
4.5
6
7.5
9.5
11.2
Dimension
(mm)
2300*1600
*2500
2600*1920
*2550
3100*2200
*2800
3850*3000
*2850
4850*3800
*2750
7570*3550
*2750
6500*5500
*2750
Weight(kg)
2800
3650
4800
6800
8650
10500
12800





This machine capacity is 24000 bottles per hour (500ml).



High Speed Automatic Bottle Filling Machine Fizzy Drink , Sparkling Water Packaging



High Speed Automatic Bottle Filling Machine Fizzy Drink , Sparkling Water Packaging



High Speed Automatic Bottle Filling Machine Fizzy Drink , Sparkling Water Packaging



Why Choose JINYATE?


1.Experience
JINYATE Since 2002. We are professional in water&beverage solutions over 16 years.Modern factory of 6000 square meters.over 40 countries’ customers are using JINYATE machines.


2.Quality control
JINYATE machines all parts adopts CNC (computer numerical control machine tools) for processing.Precision was improved greatly.



3. Reasonable Price
JINYATE machines are highest cost performance. Our machines and good service worth your cost.

4. Warranty
JINYATE provide 24 months long warranty, free parts and effective service in a timely manner. After the warranty, lifelong provide widely favorable technical support and after-sales service.


5. Turn-Key Project
JINYATE-turnkey Project including pre-sale and after-sale service, can provide the whole production line, factory design, design bottle, provide a layout diagram, provide auxiliary materials supply agent information, machine installation and debugging, staff training and so on.
