Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler

China Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler supplier
Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler supplier Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler supplier Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler supplier Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler supplier

Large Image :  Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler

Product Details:

Place of Origin: CHINA
Brand Name: JIAYUAN
Certification: CE SGS
Model Number: BCGF

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Pls inquire
Packaging Details: standard wooden case
Delivery Time: 50 working days
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Glass Bottle Filling Machine Filling Material: Juice, Flavor Drink, Nectar, Wine
Capacity: 6000BPH Suitable Bottle: Glass Bottle
Suitable Cap: Twist-off Cap, Screw Cap Material: Stainless Steel SUS304
Voltage: 380V 50HZ Or Customize Control: Fully Automatic

Brief introduction

This machine is customized by our client, which is a 5 in 1 monobloc, three rinsers one filler and one capper. It's suitable to produce juice, alcoholic beverage, nectar, tea drink, dairy drink and other non-gas beverage.



Machine Character

  • This product is a three-in-one filling machine, which integrates washing, filling and capping.
  • Suitable for the production of glass bottled fruit juice, tea beverage, water and other non-gassy beverages.
  • The output is 6000- (500ml) bottles/hour, and the speed is adjustable.
  • Normal temperature filling and hot filling can be selected.
  • In the case of replacing bottle fittings, the flushing, filling and sealing can be applied to bottles of various sizes.
  • All stainless steel 304 materials are used.6
  • For glass bottles, screw feeding is used to convey the bottles, and the bottles are not extruded or exploded.
  • The screwdriver cap adopts the screwdriver cap technology imported from France, and the cap cutter is installed at low position and sent horizontally.
  • Host PLC and frequency converter are famous brands, such as Mitsubishi, Germany Siemens, etc.

Technical parameter

Model BCGF18-18-6
Rinsing filling capping heads number 18, 18, 6
capacity 6000BPH (500ml), speed is adjustable
Filling material Juice, flavor water, dairy drink, tea drink, grape wine, red wine, liquor and other non-gas liquid
Glass bottle volume 0.3L-2L
Glass bottle diameter Φ50-108mm
Glass bottle height 170-320mm
Suitable Twist-off cap, crown cap, aluminum rotary cap, ring-pull cap
Filling precision ±2-3%
Filling method Gravity ambient filling or hot filling

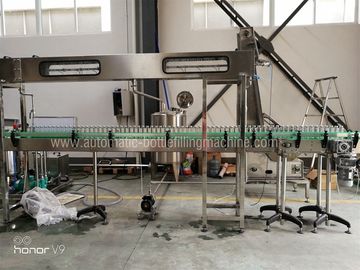

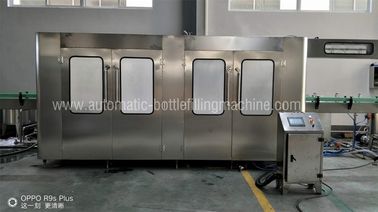

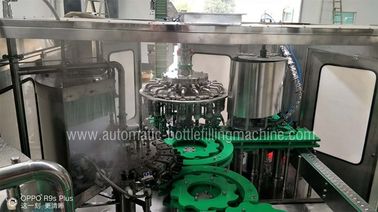

Machine show

Pls click the picture to watch the video.

Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler



Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler



FAQ

Q1:Are you manufacturer or trading company ?

A1: We are industrial manufacturer, which locates in Zhangjiagang city over 10years , and begin to export our machines and provides oversea installation services since 2010 .

Q2:How can we get your suitable machines / production line ?

1. Let me know what kind of products will you produce ?

2. Let me knw what is the capacity(per hour) you want ?

3. Let me know what kind of package , plastic bottle ,glass bottle : volume ,height ,neck diameter ,diameter of bottle or other please inform us of details

Q3: Where is your factory?

A3: Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.

Q4: Do you have any technical supports with your Beverage Filling Machines?

A4: Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
