QGF -120 5 Gallon Water Filling Machine , 20 Liter Water Bottle Manufacturing Machines

China QGF -120 5 Gallon Water Filling Machine , 20 Liter Water Bottle Manufacturing Machines supplier
QGF -120 5 Gallon Water Filling Machine , 20 Liter Water Bottle Manufacturing Machines supplier QGF -120 5 Gallon Water Filling Machine , 20 Liter Water Bottle Manufacturing Machines supplier QGF -120 5 Gallon Water Filling Machine , 20 Liter Water Bottle Manufacturing Machines supplier QGF -120 5 Gallon Water Filling Machine , 20 Liter Water Bottle Manufacturing Machines supplier

Large Image :  QGF -120 5 Gallon Water Filling Machine , 20 Liter Water Bottle Manufacturing Machines

Product Details:

Place of Origin: CHINA
Brand Name: JIAYUAN
Certification: CE ISO
Model Number: QGF-120

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: 45 working days
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: 5 Gallon Filling Machine Filling Material: Mineral Water, Pure Water
Capacity: 120-150 Bottles Per Hour Function: Wash, Fill, Cap
Voltage: 380V 50HZ 3Phases Material: Stainless Steel SUS304



Brief introducction

This 5 gallon bottle filling machine specially produces 5 gallons bottled drinking water,whose types(b/h)are:120 type,200type,300type,450 type,600type,900 type,1200type and 2000 type. 5 gallon bottle filling machine integrates bottle washer,filler andsealer into one unit,in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching areused in bottle washer,Washing solution can boused circularly.The 5 gallon bottle filling machine sealer can seal bottle caps automatically.This 5 gallon bottle filling machine equips with water spraying device tosterilize caps of bottlesin order to ensure those caps are aseptic and healthy,also this 5 gallon bottle filling machine can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producting line,which 5 gallon bottle filling machine integrates mechanism,electricity and pneumatics technologies together.



Technical parameter

Model QGF-120 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200 QGF-2000
Filling heads 1 2 3 4 8 12 16
Volume(L) 18.9 18.9 18.9 18.9 18.9 18.9 18.9
Barrel size(mm) φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490
Capacity(B/n) 120-150 200-240 300-400 600 900 1200 2000
Gas pressure(mpa) 0.4-0.6 0.4-0.6 0.6 0.6 0.6 0.6 0.6
Gas consumption (m3/min) 0.37 0.6 0.6 1.2 2.2 3 4.5
Motor power(Kw) 1.75 3.22 4.8 8.5 8.5 8.5 8.5
Rated voltage(V) 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Outline dimension(mm) 3790×650 ×1550 3550×800 ×1800 2800×1100 ×1800 3550×1200 ×1800 3800×1100 ×1800 3650×1500 ×1800 3800×1100 ×1800 2200×1860 ×2700 2560×2350 ×2750 3100×2800 ×2750
Weight(kg) 800 2800 4000 5500 7500 9500 11800

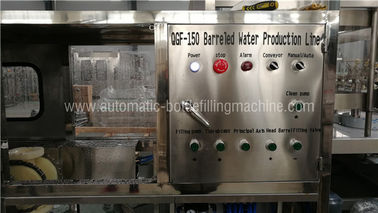

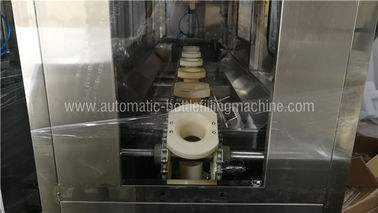

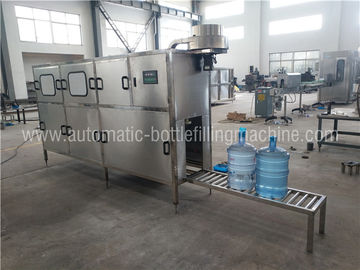

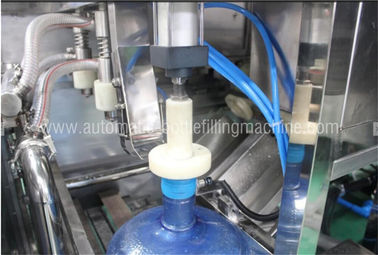

Machine referenced pictures

Pls click the picture to watch the referenced video

QGF -120 5 Gallon Water Filling Machine , 20 Liter Water Bottle Manufacturing Machines



QGF -120 5 Gallon Water Filling Machine , 20 Liter Water Bottle Manufacturing Machines

We can supply complete line plants, capacity from 120 to 2000BPH, looking forward to your contact... ...
