Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler

Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler
Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler

Large Image :  Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE ISO
Model Number: BCGF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: depends on order
Detailed Product Description
Name: Glass Bottle Filling Machine Filling Material: Juice, Flavor Drink, Nectar
Function: Washig Filling Capping Suitable Bottle: Glass Bottle
Suitable Cap: Screw Cap, Twist-off Cap, Aluminum Rotary Cap Capacity: 2000-24000 Bottles Per Hour
Material: Stainless Steel SUS304 Voltage: 380V 50HZ 3Phases
High Light:

glass bottling equipment

,

glass bottle filling and capping machine

Brief introduction

This machine is customized by our client, which is a 5 in 1 monobloc, three rinsers one filler and one capper. It's suitable to produce juice, alcoholic beverage, nectar, tea drink, dairy drink and other non-gas beverage.



Machine Character

  • This product is a three-in-one filling machine, which integrates washing, filling and capping.
  • Suitable for the production of glass bottled fruit juice, tea beverage, water and other non-gassy beverages.
  • The output is 6000- (500ml) bottles/hour, and the speed is adjustable.
  • Normal temperature filling and hot filling can be selected.
  • In the case of replacing bottle fittings, the flushing, filling and sealing can be applied to bottles of various sizes.
  • All stainless steel 304 materials are used.6
  • For glass bottles, screw feeding is used to convey the bottles, and the bottles are not extruded or exploded.
  • The screwdriver cap adopts the screwdriver cap technology imported from France, and the cap cutter is installed at low position and sent horizontally.
  • Host PLC and frequency converter are famous brands, such as Mitsubishi, Germany Siemens, etc.

Technical parameter

Model BCGF18-18-6
Rinsing filling capping heads number 18, 18, 6
capacity 6000BPH (500ml), speed is adjustable
Filling material Juice, tea drink, grape wine, red wine, liquor and other non-gas liquid
Glass bottle volume 0.3L-2L
Glass bottle diameter Φ50-108mm
Glass bottle height 170-320mm
Suitable Twist-off cap, crown cap, aluminum rotary cap, ring-pull cap
Filling precision ±2-3%
Filling method Gravity ambient filling or hot filling

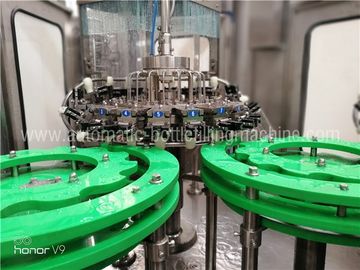

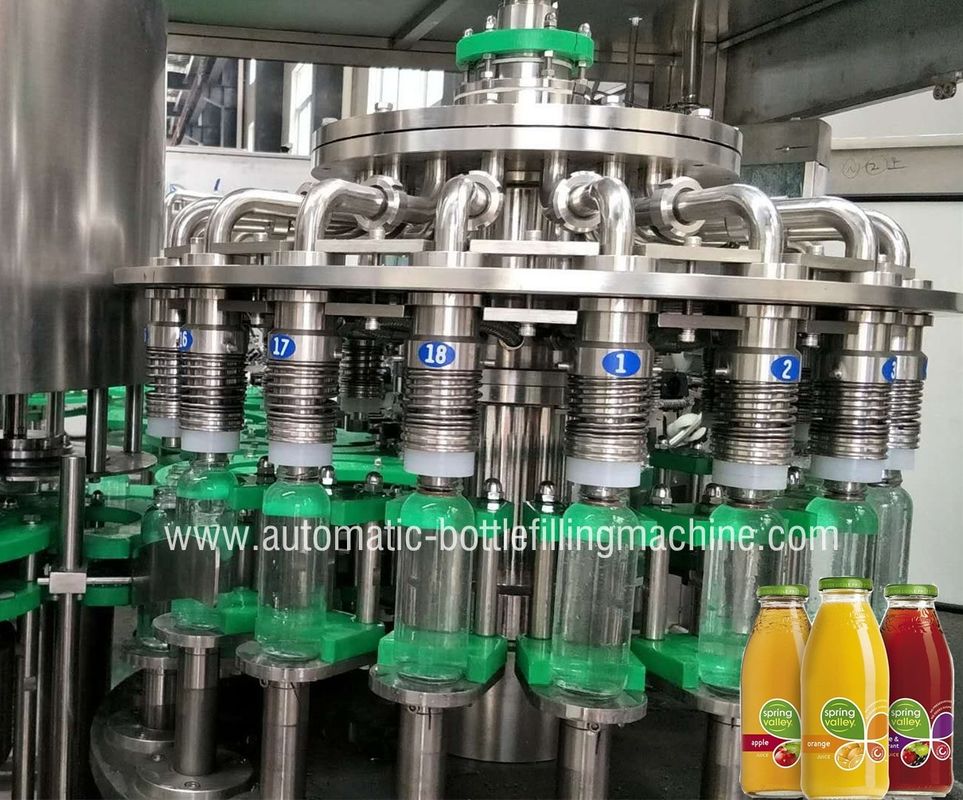

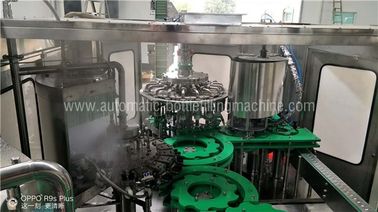

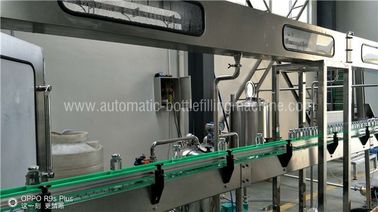

Machine show

Pls click the picture to watch the video.

Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler 0

Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler 1

Loading

Twist Off Cap Glass Bottle Filling And Capping Machine Small Scale Filler 2



We can supply complete line plants:

1. water treatment system;

2. beverage preparation machine;

3. filling machine;

4. labeling machine, package machine
