Soft Carbonated Drink Filling Machine , Low Noise Soda Water Bottling Line

China Soft Carbonated Drink Filling Machine , Low Noise Soda Water Bottling Line supplier
Soft Carbonated Drink Filling Machine , Low Noise Soda Water Bottling Line supplier Soft Carbonated Drink Filling Machine , Low Noise Soda Water Bottling Line supplier Soft Carbonated Drink Filling Machine , Low Noise Soda Water Bottling Line supplier Soft Carbonated Drink Filling Machine , Low Noise Soda Water Bottling Line supplier Soft Carbonated Drink Filling Machine , Low Noise Soda Water Bottling Line supplier

Large Image :  Soft Carbonated Drink Filling Machine , Low Noise Soda Water Bottling Line

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGF24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard Wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Monoblock Type: 2-in-1 Processing Type: Filling And Capping
Voltage: 380V 50Hz Control: PLC+Touch Screen
Filling Pressure: Balanced Pressure Filling Material: Gas Contained Beverage
Capacity: 6000BPH(500ml ) Factory Location: Zhangjiagang City





Soft Carbonated Drink Filling Machine , Low Noise Soda Water Bottling Line







Detailed information and picture

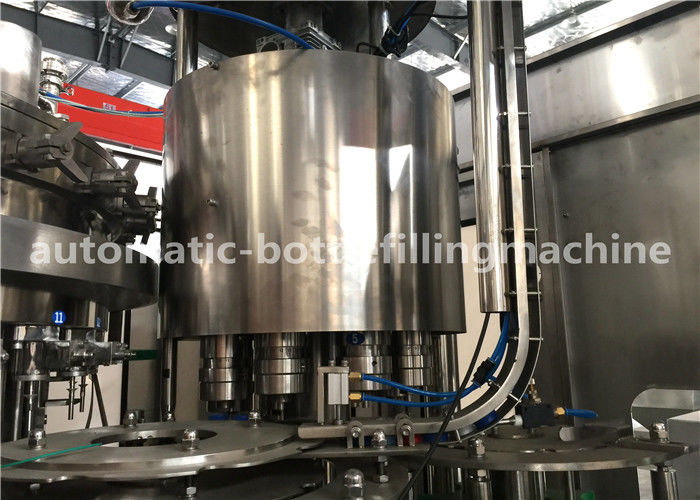

Filling Heads.

Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss

Soft Carbonated Drink Filling Machine , Low Noise Soda Water Bottling Line
Soft Carbonated Drink Filling Machine , Low Noise Soda Water Bottling Line

Capping heads

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5> Capping effect is stable and reliable ,Defective rate ≤0.2% .

Cap loader

It is used for conveying caps into the capping machine by blowing. It starts to work automatically when it is lake of cap in the capping machine. The height and distance of transporting caps, the time of sterilizing can be adjusted as the requirement.



Soft Carbonated Drink Filling Machine , Low Noise Soda Water Bottling Line



Brief specifications

1. Filling pressure:Isobaric pressure,balanced pressure.

2. Machine structure:2-in-1 monoblock,filling capping

3. Bottle volume:200ml-2000ml,if larger than 2L,the machine need to be expanded.The cost will be more expensive than normal size.

4. Capacity:6000bottles per hour based on 500ml pet bottle

3000bottles per hour based on 1000ml pet bottle;

...If you want to fill different volume bottle in one machine,you must keep their bottle mouth diameter same.

5. We also produce glass bottle carbonated beverage filling machine,but glass bottle and PET bottle can't be filled in one machine.They are two different machines.





Technique parameter

Material Shape Filling volume Filling level(mm) Cap type
Plastic Bottle Round Bottle 200-2000ml
Distance from bottle neck
According request
Screw cap
Adjustable specifications of the bottle type [Middle Mould Base]Bottle diameter Φ50~Φ85mm Bottle Height 105~300mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Carbonated Drink
Preparation
Syrup melter/ Mixing machine/Filter/Co2 Filter/CO2 Mixer .....
Machine Filling
Processing
Washing bottle --- CO2 into bottle --- Vacuum --- CO2 --- Vacuum --- Filling Beer --- Capping




1.One year warranty for the whole system.

2.Free equipment installation and debugging.

3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

4.We can provide internship service and help you train the operator and mechanic.

5.Free beverage production technology and process configuration.

6.We can help you to design the product line, workshop and provide turn-key project.
