Large Capacity Beverage Can Filling Machine , Small Can Filling And Seaming Machine

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

Large Capacity Beverage Can Filling Machine , Small Can Filling And Seaming Machine

Large Capacity Beverage Can Filling Machine , Small Can Filling And Seaming Machine
Large Capacity Beverage Can Filling Machine , Small Can Filling And Seaming Machine Large Capacity Beverage Can Filling Machine , Small Can Filling And Seaming Machine Large Capacity Beverage Can Filling Machine , Small Can Filling And Seaming Machine Large Capacity Beverage Can Filling Machine , Small Can Filling And Seaming Machine

Large Image :  Large Capacity Beverage Can Filling Machine , Small Can Filling And Seaming Machine

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: depends on quantity
Supply Ability: 99 sets per year
Detailed Product Description
Production Name: Can Washer Filler Seamer Machine Type: Split
Filling Material: Various Juice, Ice Tea Drink Capacity: 1000-2000BPH
Material: Stainless Steel Power: 2.2KW
High Light:

aluminum can filling machine

,

beverage canning machine



Large Capacity Beverage Can Filling Machine , Small Can Filling And Seaming Machine



This kind of production line is mainly used for washing filling and capping for pop-top cans,which are made of tinplate, aluminum and PET material.It has functions of lifting the cans automatically, reverse automatically, washing automatically and filling capping. It can reach the big capacity. It is the ideal machines for producing the various fruit juice, ice tea and other non-gas drink.



Features

CAN washing machine

The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

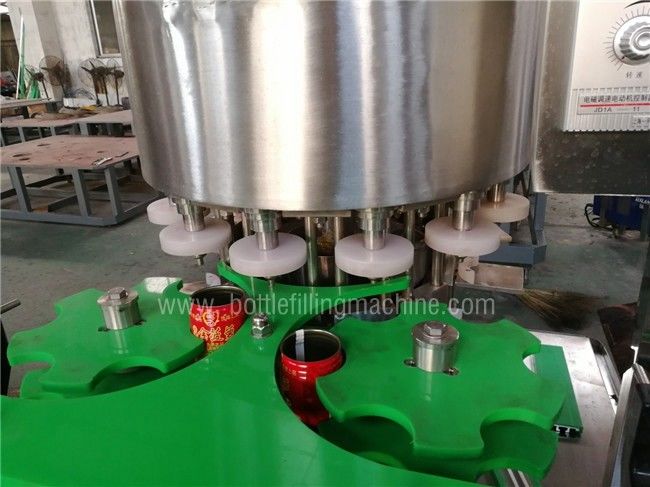

Can filling Machine

High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

Can Sealing Machine

This machine cover is reliable, frequency control, reduce material loss and other characteristics.



Main Technical Parameters

Model Fostream12-1 Fostream16-4
Production capacity 1000-2000b/h 3000-8000b/h
The number of filling head 12 16
The number of sealing head 1 4
Can Diameter 52.5-99mm 52.5-99mm
Can Height 39-160mm 39-160mm
Filling accuracy ±5 ±5
Power 2.8kw 5.5kw
Weight 1500kg 3100kg
Dimension 2000*1400*1900mm 2700*1400*1900mm





Large Capacity Beverage Can Filling Machine , Small Can Filling And Seaming Machine 0



Large Capacity Beverage Can Filling Machine , Small Can Filling And Seaming Machine 1



Large Capacity Beverage Can Filling Machine , Small Can Filling And Seaming Machine 2



Our services



What kind of service can your company provide?




1.Sample service
We can send you a video of the work of this machine.
You are very welcome to visit our company and check the operation of the machine on site. We will send someone to pick you up at the airport.


2. Customized service
We can customize the machine according to the customer's requirements (such as material, power, filling type, bottle size, etc.), and our engineers will also provide professional advice to help customers better establish the ideal factory.


3. After sales service
After receiving the final payment, we will provide the bill of lading in time to ensure that the customer receives the goods as soon as possible.
Once you have completed all the preparations, we will send engineers to your factory to install the machines and train your staff for free until they are able to operate the machine well.
We can provide one year warranty and spare parts, and free lifetime technical service.
