Zhangjiagang Jinyate Machinery Co., Ltd
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Production Name: | Can Washer Filler Seamer | Machine Type: | Split |
|---|---|---|---|
| Filling Material: | Various Juice, Ice Tea Drink | Capacity: | 1000-2000BPH |
| Material: | Stainless Steel | Warranty: | 1 Year |
| High Light: | aluminum can filling machine,beverage canning machine |
||
This kind of production line is mainly used for washing filling and capping for pop-top cans,which are made of tinplate, aluminum and PET material.It has functions of lifting the cans automatically, reverse automatically, washing automatically and filling capping. It can reach the big capacity. It is the ideal machines for producing the various fruit juice, ice tea and other non-gas drink.
Features
1. Slideway can washing machine
The front can turning- over cutter cage of the washer is connected with the rapid transportation of the unpiler .
The empty cans that come from the can turning-over machine have a 90°turn. Then the can entering the washing tank of the empty can wash by the opening downward. There is a spray tube on the bottom of the tank and 12 nozzles that can spray 850mm clean water column. The back of the tank is the drain part. The water, which sprayed into the empty can flow back the tank, then the wastewater.discharged by the discharge pipes. After cleaning the empty can have a 90°turn by the back can turning-over machine, then the can entering the feed conveyor belt by opening upward.
2. Filling and sealing machine

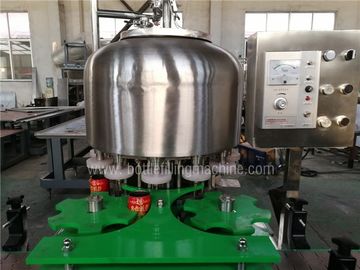

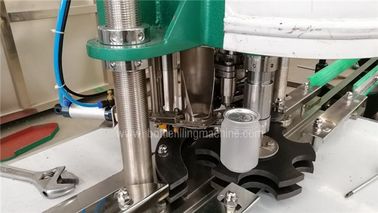

This filling and sealing machine adopt single- room filling valve, thus there is no air bubbles while filling. The two heavy curling spinning shapes the sealing that is controlled by the frequency controller, having the characteristics of calmly filling, high speed, stable liquid level, no can no filling, stepless speed adjusting,etc. It is fit for all kinds of pull-tab cans.
Main Technical Parameters
| Model | Fostream12-1 | Fostream16-4 |
| Production capacity | 1000-2000b/h | 3000-8000b/h |
| The number of filling head | 12 | 16 |
| The number of sealing head | 1 | 4 |
| Can Diameter | 52.5-99mm | 52.5-99mm |
| Can Height | 39-160mm | 39-160mm |
| Filling accuracy | ±5 | ±5 |
| Power | 2.8kw | 5.5kw |
| Weight | 1500kg | 3100kg |
| Dimension | 2000*1400*1900mm | 2700*1400*1900mm |
Our services
Installation
After the equipment arrived buyer's , workshop, the buyer should take it's place for each equipment according to the supplied ; layout; the seller l will d send the experienced technician to guide the installation and debugging and trail ,production, and fulfill the designed capability within the designed time. The installation, debugging and g training is about 7 days.
Training
The seller will supply technical training to the buyer. The training is includes: equipment structure and maintenance, control and operation. After training, the technicians of the buyer will grasp relevant operation and maintenance skills, and could adjust the technologies more skilled, and can deal with all kinds of malfunction in time.
