330ML Glass Bottle Filling Machine Aerated Water Carbonated Water Bottling Plant

China 330ML Glass Bottle Filling Machine Aerated Water Carbonated Water Bottling Plant supplier
330ML Glass Bottle Filling Machine Aerated Water Carbonated Water Bottling Plant supplier 330ML Glass Bottle Filling Machine Aerated Water Carbonated Water Bottling Plant supplier 330ML Glass Bottle Filling Machine Aerated Water Carbonated Water Bottling Plant supplier 330ML Glass Bottle Filling Machine Aerated Water Carbonated Water Bottling Plant supplier 330ML Glass Bottle Filling Machine Aerated Water Carbonated Water Bottling Plant supplier

Large Image :  330ML Glass Bottle Filling Machine Aerated Water Carbonated Water Bottling Plant

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF32-32-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Driven Type: Electric Warranty: One Year For Free
Automatic Grade: Fully-automatic Bottle Type: Glass Bottle
Cap Type: Crown Cap,Aluminum Screw Cap Capacity: 8000BPH(500ml)
Filling Pressure: Balanced Pressure Weight: 5000kg

330ML Glass Bottle Filling Machine Aerated Water Carbonated Water Bottling Plant



Main parameter:

Model: DCGF32-32-10

Theoretical Capacity: 8000BPH for 0.5L glass bottle

Rinsing heads quantity:32 pieces

Filling heads quantity: 32 pieces

Capping heads quantity:10 pieces

Filling precision: ≤±5mm

Volume of PET bottle: 0.25L-2L

Diameter of bottle: 50-100mm

Height of bottle: 150-320mm

Cap diameter: Aluminum screw type cap diameter from 28mm to 38mm

Water pressure of washing bottle:0.18-0.25Mpa

Water consumption for water bottle:2500kg/h

Spraying position:6

Dripping bottle position:3.5

Gas source pressure:0.4Mpa

Gas consumption:0.4m³/min

Power : 6.57kw

Weight: 4000kg

Dimension(L×W×H): 2750*2180*2200mm



The high-quality stainless machine is made and designed through introduce of technology from Germany KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with the method of holding the bottoms of the bottles. Adopting PLC control, automatic liquid level inspecting and hygienic structure, which is convenient to be operated and maintained.

330ML Glass Bottle Filling Machine Aerated Water Carbonated Water Bottling Plant



330ML Glass Bottle Filling Machine Aerated Water Carbonated Water Bottling Plant



330ML Glass Bottle Filling Machine Aerated Water Carbonated Water Bottling Plant



Features of three main part:

Washing part

1. All 304 stainless steel washing heads, water spray style inject design, more save water consumption & more clean

2. 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

3. 304 stainless steel washing pumps

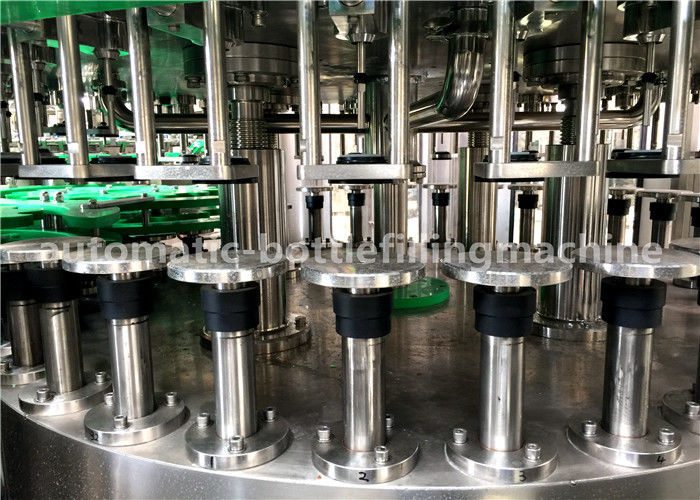

Filling Part

1. The filling station using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle together with vacuum pump regurgitate system, to ensure the high filling precision, ensure same filling level

2. Filling temperature is adjustable.

3. Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.

4. All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

5. No bottle, no filling

Capping part

1. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

2. All 304stainless steel construction

3. No bottle no capping,

4. Automatic stop when lack of caps

Cap elevator It is used for conveying caps into the capping machine by blowing. It starts to work automatically when it is lake of cap in the capping machine. The height and distance of transporting caps, the time of sterilizing can be adjusted as the requirement.
Flat Conveyor It is used for transferring the bottles



IF you want to the detailed quotation,please leave me these message
1, bottle vlolume
2, bottle materail (machines for glass bottle and plastic bottle are different)
3, how many bottles per hour you want to produce ?
4, do you need this water filling machines only or whole water production line
