380V 220V High Speed Soft Drink Production Line Plants In Glass Bottles

China 380V 220V High Speed Soft Drink Production Line Plants In Glass Bottles supplier
380V 220V High Speed Soft Drink Production Line Plants In Glass Bottles supplier 380V 220V High Speed Soft Drink Production Line Plants In Glass Bottles supplier 380V 220V High Speed Soft Drink Production Line Plants In Glass Bottles supplier 380V 220V High Speed Soft Drink Production Line Plants In Glass Bottles supplier

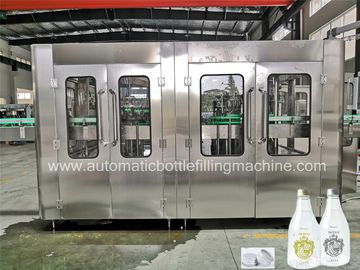

Large Image :  380V 220V High Speed Soft Drink Production Line Plants In Glass Bottles

Product Details:

Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE
Model Number: BCGF

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: 45 working days
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Product Name: Glass Bottle Beverage Filling Machine Filling Material: Carbonated Drink, Soda Water, Cola,beer
Bottle Type: Glass Bottle Cap Type: Aluminium Rotary Cap
Speed: 8000BPH Voltage: 380V 220V Or Customize



Description

This machine is used to produce carbonated soft drink, like cola, soda water, energy drink, etc. It's for glass bottle aluminium rotary cap package, capacity is about 8000 bottles per hour, the filling cylinder can lift automaticlly only need to set on the touch screen according to diffirent bottle height.



Machine character

1. For carbonated drink characteristics, carbonated drink tank and filling valve is customized made.

Additional increase diaphragm valve to ensure carbonated drink supplying stability ,reduce carbonated drink foaming, make sure that carbonated drink level accuracy.



2. Pressure preparation is combined controlled by solenoid valve under working table, with PLC and electrode points pressure gauge. carbonated drink tank is prepared pressure first, then feeding carbonated drink. If too big pressure with feeding carbonated drink, carbonated drink tank will air exhaust to set up pressure, if pressure is not enough, CO2 will feed to carbonated drink tank for pressure preparation to reach to required pressure.



3. The main purpose of water injecting and foaming device is filtered by high pressure and heated water , and for high pressure waterline sent into bottle , and make bubble, and take out air from the bottle, and ensure the quality of carbonated drink.



Machine picture

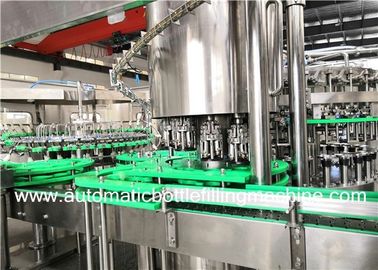

Washing parts: SUS 304, compact structure, convient adjustment, small area touch with bottle mouth, avoid the secondary pollution for the bottle mouth efficiently, equipped with water collector to callback rinsed water.



380V 220V High Speed Soft Drink Production Line Plants In Glass Bottles

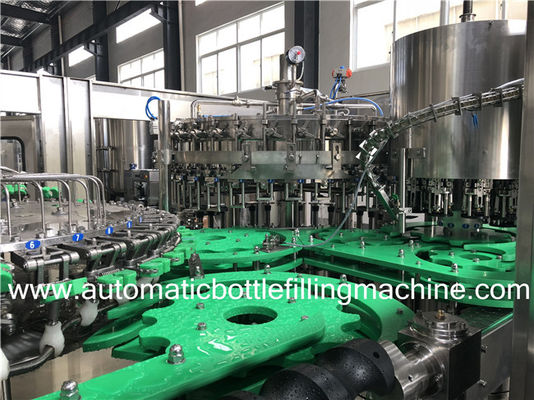

Filling parts: equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The machine obtains advantage of high reliability, high efficiency, high degree automation and easy operation.



380V 220V High Speed Soft Drink Production Line Plants In Glass Bottles



Capping parts: Aluminum screw cap or Crown cap, etc. It is optional according to customers request. Different cap use different capping head.

380V 220V High Speed Soft Drink Production Line Plants In Glass Bottles



Machine specification

Mode BCGF16-12-6 BCGF18-18-6 BCGF24-24-8 BCGF32-32-10 BCGF40-40-10
Capacity (500ml) 1000-1500 2000-4000 4000-6000 6000-9000 8000-11000
Total power(kw) 1.5 1.5 3.75 5.6 7.5
Dimension(L*W*H) (mm) 2100*1900*2300 2400*1920*2300 2850*2250*2400 4100*2250*2400 4800*2250*2400
Total weight(kg) 3000 4500 6000 8500 10000



Special size can be customized, Just feel free tell us your requirements



FAQ

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.



we can supply complete line plants for catbonated soft drink, from 1000 bottles per hout to 24000BPH, looking forward to your contact... ...
