Auto Carbonated Soft Drink Filling Machine , Glass Bottle Machine High Speed

Auto Carbonated Soft Drink Filling Machine , Glass Bottle Machine High Speed
Auto Carbonated Soft Drink Filling Machine , Glass Bottle Machine High Speed Auto Carbonated Soft Drink Filling Machine , Glass Bottle Machine High Speed Auto Carbonated Soft Drink Filling Machine , Glass Bottle Machine High Speed Auto Carbonated Soft Drink Filling Machine , Glass Bottle Machine High Speed

Large Image :  Auto Carbonated Soft Drink Filling Machine , Glass Bottle Machine High Speed

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE
Model Number: BCGF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: 45 working days
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Glass Bottle Filling Machine Filling Material: Carbonated Drink, Soda Water, Cola
Bottle Type: Glass Bottle Cap Type: Aluminium Rotary Cap
Speed: 500-24000BPH Control: PLC+touch Screen
High Light:

glass bottling equipment

,

glass bottle filling and capping machine



This glass bottle filling machine adopts advanced MITSUBSHI programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.



Main features:



1) For carbonated drink packed in glass bottle rotary cap.



2) 3 in 1 with 32 washing and filling heads, 10 capping heads.



3) With 2m bottle inlet conveyor and 2m bottle outlet conveyor.



4) Wiith bottle feeding screw to guarantee the feeding speed and function, to avoid the bottle down.



5) Nylon spring cramps to avoid the damage to bottle in washing process.



6) Polymer star wheel used in transimission part.



7) Aluminium rotary cap capping head in capping part.



8) Auto cap sorter and anti-lid cap lifter.



9) PLC touch-screen automatic control

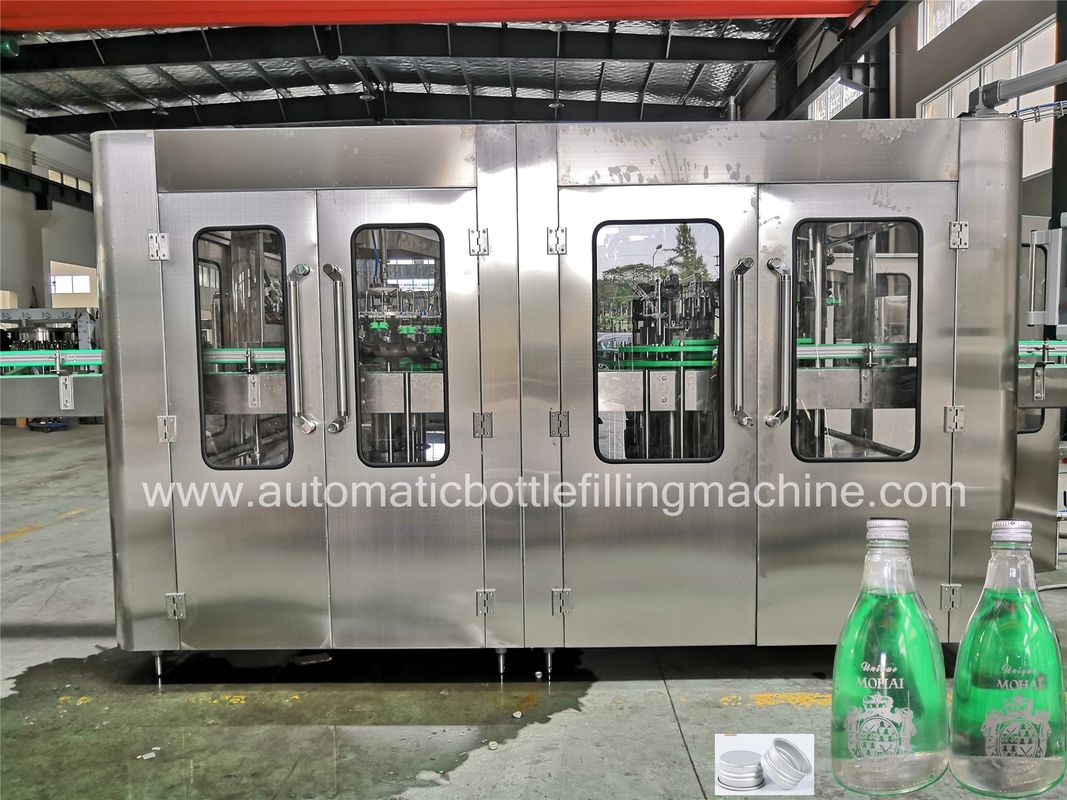

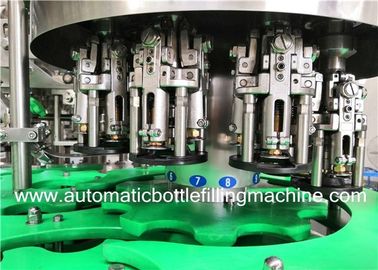

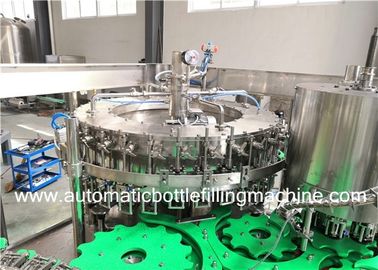

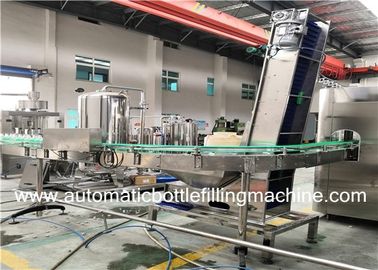

Machine picture

Auto Carbonated Soft Drink Filling Machine , Glass Bottle Machine High Speed 0



Auto Carbonated Soft Drink Filling Machine , Glass Bottle Machine High Speed 1



Auto Carbonated Soft Drink Filling Machine , Glass Bottle Machine High Speed 2



Machine specification

Mode BCGF16-12-6 BCGF18-18-6 BCGF24-24-8 BCGF32-32-10 BCGF40-40-10
Capacity (500ml) 1000-1500 2000-4000 4000-6000 6000-9000 8000-11000
Total power(kw) 1.5 1.5 3.75 5.6 7.5
Dimension(L*W*H) (mm) 2100*1900*2300 2400*1920*2300 2850*2250*2400 4100*2250*2400 4800*2250*2400
Total weight(kg) 3000 4500 6000 8500 10000



FAQ

Q1:Are you a trading company or a manufactory?

A1:We are a manufactory,can give u best service .



Q2:What’s your guarantee or the warranty of the quality if we buy your machines?

A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years



Q3:When can I get my machine after I paid?

A3:We will deliver the machines on time as the date we agreed both side.



Q4:How can I install my machine when it arrives?

A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.



Q5:How about the spare parts?

A5:After we deal down all the things , we will offer you a spare parts list for your reference.
