Carbonated Soft Drink Glass Bottle Filling Machine Production Line Fully Automatic

China Carbonated Soft Drink Glass Bottle Filling Machine Production Line Fully Automatic supplier
Carbonated Soft Drink Glass Bottle Filling Machine Production Line Fully Automatic supplier Carbonated Soft Drink Glass Bottle Filling Machine Production Line Fully Automatic supplier Carbonated Soft Drink Glass Bottle Filling Machine Production Line Fully Automatic supplier Carbonated Soft Drink Glass Bottle Filling Machine Production Line Fully Automatic supplier

Large Image :  Carbonated Soft Drink Glass Bottle Filling Machine Production Line Fully Automatic

Product Details:

Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE
Model Number: BCGF

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: 45 working days
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Product Name: Glass Bottle Filling Machine Filling Material: Carbonated Drink, Soda Water, Cola
Bottle Type: Glass Bottle Cap Type: Aluminium Rotary Cap
Speed: 500-24000BPH PLC: Mitsubshi

This machine is customized by our Hungry customer, which is used to produce carbonated drink, glass bottle and aliumium rotary cap package, 32 washing heads 32 filling heads and 10 capping heads, capacity is about 7000-9000BPH.



Main features:



1. The rinsing machine using high-strength stainless steel bottles of springloaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plumlike structure can wash every corner of the sidewall and bottom to make the bottle clean.
2. Filling machine with springtype mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
3. Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.
4. Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.
5. The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.

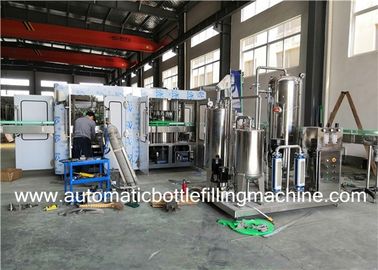

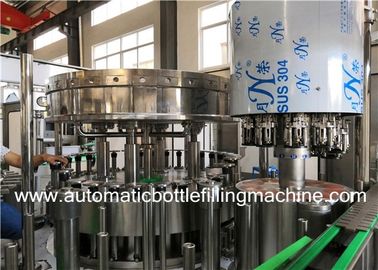

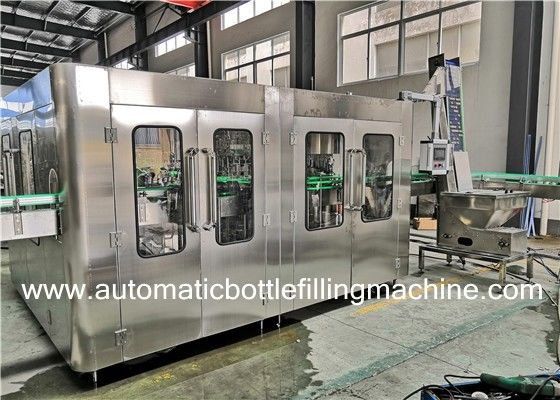

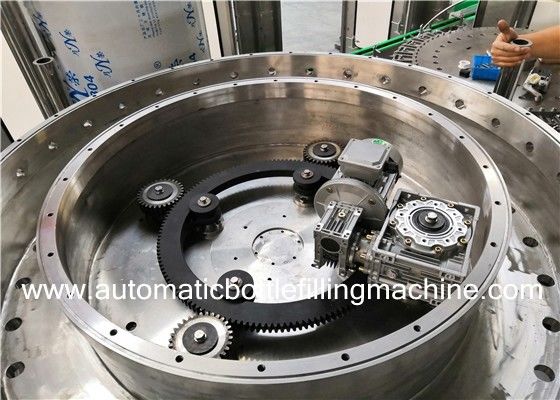

Machine picture

Carbonated Soft Drink Glass Bottle Filling Machine Production Line Fully Automatic



Carbonated Soft Drink Glass Bottle Filling Machine Production Line Fully Automatic



Machine specification

Mode BCGF16-12-6 BCGF18-18-6 BCGF24-24-8 BCGF32-32-10 BCGF40-40-10
Capacity (500ml) 1000-1500 2000-4000 4000-6000 6000-9000 8000-11000
Total power(kw) 1.5 1.5 3.75 5.6 7.5
Dimension(L*W*H) (mm) 2100*1900*2300 2400*1920*2300 2850*2250*2400 4100*2250*2400 4800*2250*2400
Total weight(kg) 3000 4500 6000 8500 10000



FAQ



1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
