Rotary Type Drinking Pure Water Filling Machine , Mineral Water Filling Line

China Rotary Type Drinking Pure Water Filling Machine , Mineral Water Filling Line supplier
Rotary Type Drinking Pure Water Filling Machine , Mineral Water Filling Line supplier Rotary Type Drinking Pure Water Filling Machine , Mineral Water Filling Line supplier Rotary Type Drinking Pure Water Filling Machine , Mineral Water Filling Line supplier Rotary Type Drinking Pure Water Filling Machine , Mineral Water Filling Line supplier Rotary Type Drinking Pure Water Filling Machine , Mineral Water Filling Line supplier

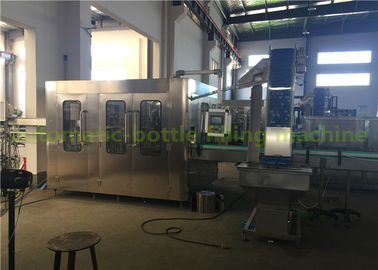

Large Image :  Rotary Type Drinking Pure Water Filling Machine , Mineral Water Filling Line

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF16-16-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 3000BPH(5Ll) Weight: 5500kg
Filling Type: Normal Pressure Warranty: One Year For Free
Control: PLC+touch Screen Power: 6.57kw
Structure: Washing Filling Capping 3-in-1 Monoblock



Rotary Type Drinking Pure Water Filling Machine , Mineral Water Filling Line



Quick information:

1. This machine is used for filling 5L plastic/pet bottle

2. Capacity:3000 bottles per hour

3. washing filling capping 3-in-1 monoblock machine



Video show

https://www.youtube.com/watch?v=Lr1YHsi1D5A&feature=share



Technical parameter

Model CGF16-16-5 CGF18-18-6 CGF24-24-8 CGF32-32-10
Production capacity(500ml)(b/h) 4000 4000-6000 8000-10000 12000-15000(0.5L)
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter:Φ40-Φ80;Height:130-280



Bottle diameter:Φ50-Φ100;Height:150-320



Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa)

0.18



Water consumption for Water bottle 800kg/h 1600kg/h 2500kg/h 3500kg/h
Spraying position 5 5 6 12
Dripping bottle position 3 3 3.5 7
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.3 0.3 0.4 0.5
Total power(kw) 4.23 5.03 6.57 8.63
Total weight(kg) 2000 3500 5500 8000
Dimension(L*W*H) 2100×1500×2200 2450×1800×2200 2750×2180×2200

3500×2200×2250



Features

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, anna com bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Super-low star wheel structure can highly improve the strength of the whole machine.

7. Central greasing oil system can grease all bearings easily.

8. Gearbox type capping unit gives a close structure, keep oil inside also using Egers material for longlife. You can also adjust the capping rounds according to different caps by adjusting gears below.

9. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON,ABB.




Washing heads.

1. Into bottle way is air conveyor direct connection with Bottle dial .
2. All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3. 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4. 304/316 stainless steel washing pump make the machine more durable .

Filling heads.

1. 304/316 Stainless steel high precision filling nozzle
2. Filling volume adjustable in fine rank, same liquid level after filling
3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4. 304/316 stainless steel filling pump
5. Efficient spray nozzle rinse thoroughly and save water for flushing


Capping heads.

1. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2. All 304/316 stainless steel construction
3. No bottle no capping
4. Automatic stop when lack of bottle
5. Capping effect is stable and reliable ,Defective rate ≤0.2% .
