PET Pure Water Bottle Filling Machine Mineral Water Production With Door Cover

China PET Pure Water Bottle Filling Machine Mineral Water Production With Door Cover supplier
PET Pure Water Bottle Filling Machine Mineral Water Production With Door Cover supplier PET Pure Water Bottle Filling Machine Mineral Water Production With Door Cover supplier PET Pure Water Bottle Filling Machine Mineral Water Production With Door Cover supplier PET Pure Water Bottle Filling Machine Mineral Water Production With Door Cover supplier PET Pure Water Bottle Filling Machine Mineral Water Production With Door Cover supplier

Large Image :  PET Pure Water Bottle Filling Machine Mineral Water Production With Door Cover

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF16-16-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 3000BPH(5Ll) Weight: 5500kg
Filling Type: Normal Pressure Warranty: One Year For Free
Control: PLC+touch Screen Power: 6.57kw
Structure: Washing Filling Capping 3-in-1 Monoblock



PET Pure Water Bottle Filling Machine Mineral Water Production With Door Cover





Quick information:

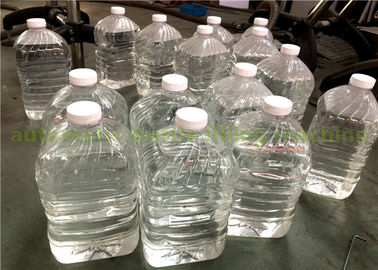

1. This machine is used for filling 5L plastic/pet bottle

2. Capacity:3000 bottles per hour

3. washing filling capping 3-in-1 monoblock machine



Video show

https://www.youtube.com/watch?v=Lr1YHsi1D5A&feature=share

PET Pure Water Bottle Filling Machine Mineral Water Production With Door Cover



Flow chart of complete bottled mineral water

A) Bottle production line

PET Resin--Injection moulding machine--Botlte blowing machine--PET bottle

B) Water treatment

system Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis --UV sterilizer-Ozone generator--Finished water tank

C) Filling & Packing part

Bottle unscramble--Air conveyor--Washing, filling, capping 3in1machine—Lightchecker--Blow dryer--Dater printer --Lableing machine--Packing machine –Stock



Technical parameter

Model CGF16-16-5 CGF18-18-6 CGF24-24-8 CGF32-32-10
Production capacity(500ml)(b/h) 4000 4000-6000 8000-10000 12000-15000(0.5L)
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter:Φ40-Φ80;Height:130-280



Bottle diameter:Φ50-Φ100;Height:150-320



Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa)

0.18



Water consumption for Water bottle 800kg/h 1600kg/h 2500kg/h 3500kg/h
Spraying position 5 5 6 12
Dripping bottle position 3 3 3.5 7
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.3 0.3 0.4 0.5
Total power(kw) 4.23 5.03 6.57 8.63
Total weight(kg) 2000 3500 5500 8000
Dimension(L*W*H) 2100×1500×2200 2450×1800×2200 2750×2180×2200

3500×2200×2250



PET Pure Water Bottle Filling Machine Mineral Water Production With Door Cover



PET Pure Water Bottle Filling Machine Mineral Water Production With Door Cover

Features

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, anna com bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Super-low star wheel structure can highly improve the strength of the whole machine.

7. Central greasing oil system can grease all bearings easily.

8. Gearbox type capping unit gives a close structure, keep oil inside also using Egers material for longlife. You can also adjust the capping rounds according to different caps by adjusting gears below.

9. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON,ABB.
